3D Powder Mixer SIE-HF5L
5L Large Capacity Boosts Single Batch Output · 3D Compound Motion Dead-Zone-Free Mixing Guarantees Batch Consistency
5L Large Capacity Efficient Mixing + 9KG Heavy Load Support + Sealed Dust-Free Stable Batches

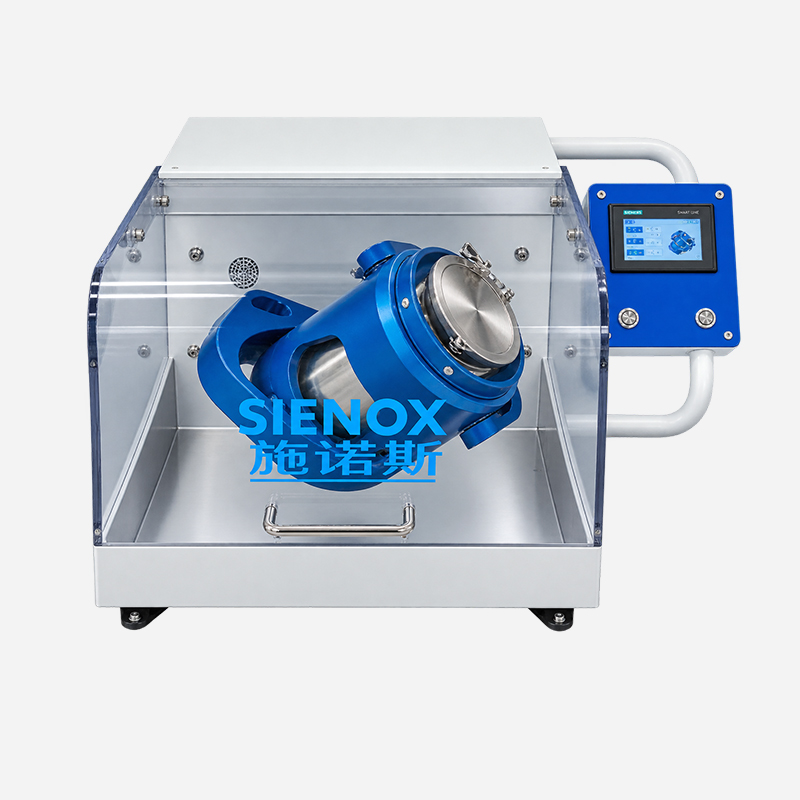

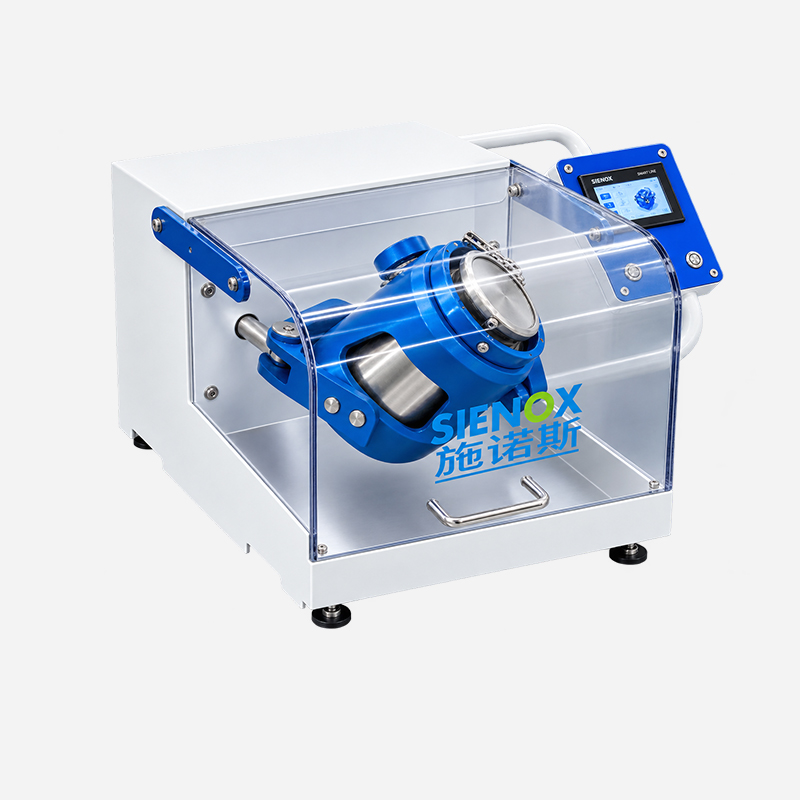

SIENOX SIE-HF5L 3D Powder Mixer comes with a standard 5L vessel (max processing volume 4500ML, load ≤9KG), adjustable speed from 20 to 60rpm. Microcomputer control with touchscreen operation; forward & reverse dual processes adjustable from 0 to 50 minutes, storing up to 10 recipes. Machine dimension 560×780×520mm, net weight 67kg, suitable for small & medium batch production and frequent material changeover.
Non-contact mixing throughout the process lowers material contamination risks, suitable for common lab materials including phosphor powder, epoxy resin, ceramic slurry and photosensitive resin.
✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom Voltage Available (110V/220V)
Why Precision Mixing Matters
Uneven powder mixing directly impairs end-product performance.
Ceramics IndustryUneven mixing of components in alumina, zirconia and other ceramic powders causes inconsistent density, cracking and fluctuating mechanical properties after sintering. The 3D powder mixer uniformly blends ceramic powders of different specific gravities and particle sizes to ensure compositional consistency and stable performance of sintered bodies. It meets quality standards for small and medium batch production and reduces scrap rates. | Pharmaceutical IndustryPoor mixing of active ingredients and excipients leads to tablet content deviation, affecting efficacy consistency and pharmaceutical compliance. The 3D powder mixer homogenizes medicinal powder in a sealed dust-free environment to achieve even content distribution per batch and meet strict mixing uniformity requirements for pharmaceutical manufacturing. | Magnetic Materials IndustryUneven blending of NdFeB and other permanent magnet powders results in fluctuating magnetic performance and poor batch consistency, which fails customer acceptance. The 3D powder mixer mixes magnetic powders of various particle sizes evenly to guarantee consistent magnetic properties and batch stability of sintered magnets, reaching quality standards in small & medium batch runs and cutting waste. |
✨ Challenges of conventional mixing: Low throughput of small-volume units requires multiple batches for small/medium orders; V-type or 3D mixers are hard to clean, slowing material changeover; open mixing causes dust emission, environmental pollution and material loss; poor batch consistency hinders customer acceptance & delivery.
Why Choose SIE-HF5L
Solve Core Pain Points of Small & Medium Batch Powder Mixing
5L Large Capacity for Higher EfficiencyStandard 5L vessel with max 4500ML processing volume, over doubling throughput vs 2L models and reducing batch runs for small & medium production. The 5000ML vessel fits standard cans; adapters enable mounting smaller containers for flexible capacity needs, one machine for multiple uses. | 9KG Heavy Load for Dense MaterialsHandles heavy materials such as metal and ceramic powders. 3D compound motion delivers dead-zone-free uniform blending even for high-specific-gravity materials. Supports dry-dry, dry-wet and wet-wet sample mixing for broad applications. | Intelligent Control for Reproducible & Stable BatchesTouchscreen microcomputer system stores up to 10 recipes for one-click recall, eliminating manual setting errors. Forward/reverse cycle operation adjustable from 0-50 minutes with 1s increments. Auto homing after stop ensures consistent operation. Visible safety guard with interlock cuts power once opened for operator safety. |
✨ If your small & medium batch production requires high-capacity efficient mixing, frequent material changeover or heavy-duty processing, HF5L is your ideal choice.
Working Principle
Materials are uniformly mixed via multi-dimensional rotation, translation and inversion inside a fully sealed vessel.
Step 1: 3D Motion in Sealed Vessel Step 2: Uniform Diffusion via Multi-directional Flow Step 3: Timed Stop & Auto Homing Simple 3 steps: Sealed 3D Motion → Multi-directional Diffusion → Timed Homing & Discharge, achieving dead-zone-free uniform mixing. Supports forward-reverse cyclic operation for repeated cycles until target homogeneity is reached. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE-HF5L |
| Max. Processing Volume | 4500ML (Load ≤6KG) |
| Speed Range | 20~60rpm |
| Time Setting | Forward & reverse dual process, adjustable 0-50min with 1s increment, cyclic operation supported |
| Recipe Storage | Stores up to 10 sets of parameters |
| Control System | Microcomputer control system with touchscreen operation |
| Working Principle | Multi-dimensional motion: rotation, translation and inversion |
| Auto Homing | Automatically returns to origin after normal shutdown |
| Power Supply | Single-phase AC220V±5%, 50~60Hz |
| Overall Dimension(W×D×H) | 560×780×520mm |
| Net Weight | Approx. 67 kg |
| Certifications | ISO9001 Quality System, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑line parameter specifications to assist your accurate process‑model selection
| Model | SIE-HF2L | SIE-HF5L |
| Max. Processing Volume | 2000ML (Load ≤6KG) | 4500ML (Load ≤9KG) |
| Speed Range | 30~100rpm | 20~60rpm |
| Time Setting | Forward & reverse dual process, adjustable 0-50min with 1s increment, cyclic operation supported | Forward & reverse dual process, adjustable 0-50min with 1s increment, cyclic operation supported |
| Recipe Storage | Stores up to 10 sets of parameters | Stores up to 10 sets of parameters |
| Control System | Microcomputer control system with touchscreen operation | Microcomputer control system with touchscreen operation |
| Working Principle | Multi-dimensional motion: rotation, translation and inversion | Multi-dimensional motion: rotation, translation and inversion |
| Auto Homing | Automatically returns to origin after normal shutdown | Automatically returns to origin after normal shutdown |
| Power Supply | Single-phase AC220V±5%, 50~60Hz | Single-phase AC220V±5%, 50~60Hz |
| Overall Dimension(W×D×H) | 500×660×410mm | 560×780×520mm |
| Net Weight | 43 kg | 67 kg |
Multi‑Industry Solutions
Covers typical powder mixing applications
Sintered Powder MetalsWC-Co hard alloy powder, Fe-Cu-C iron-based powder, stainless steel powder, copper-based powder |
Ceramics IndustryAlumina powder, zirconia powder, silicon carbide powder, silicon nitride powder, ceramic glazes |
Pharmaceutical IndustryAPI & excipient blending, pharmaceutical formula mixing, herbal powder mixing, granule premixing |
New Energy MaterialsNCM ternary materials, LFP, graphite anode, electrolyte powder, conductive agent blending |  Research InstitutesNew material R&D mixing, nano powder blending, functionally graded materials, battery materials |
Magnetic MaterialsNdFeB powder, ferrite powder, bonded magnet powder, magnetic composites |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
AB Glue |
Glue + Powder |
Glass Powder |
Electronic Glue + Powder |
Epoxy Resin |
Battery Slurry Powder |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison Before & After
| Material Type | Condition Before Processing | After HF5L Processing |
| WC-Co Hard Alloy Powder | Cobalt powder agglomerates with clear boundary from WC powder, uneven color; severe segregation after sintering | WC particles evenly coated by cobalt powder, no agglomeration; uniform composition & stable mechanical properties after sintering |
| Alumina-Zirconia Composite Powder | Obvious stratification due to density difference; alumina on top, zirconia at bottom, poor mixing impairs ceramic performance | Homogeneous two-phase distribution without stratification, uniform color; higher sintered density & better mechanical performance |
| Fe-Cu-C Mixed Powder | Metal powders separate by gravity; iron sinks, copper floats, patchy uneven appearance | Uniform metal powder distribution, no stratification or segregation; sintered parts feature consistent composition & stable performance |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real customer cases.
