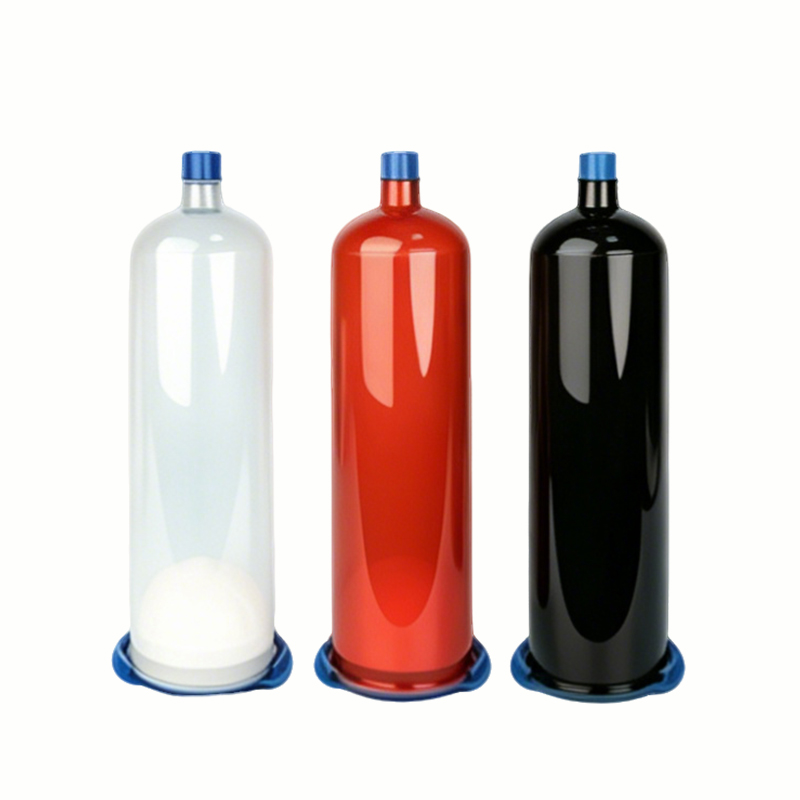

SIENOX 500CC Dispensing Syringe Barrel


500CC Dispensing Syringe Barrel・Extra Large Size for Glue Storage & Potting, Ultra-Long Operation with One-Time Loading

Highly Transparent PP Barrel + Sealed Rubber Piston + Compatible with Adapters and Dispensing Nozzles

SIENOX 500CC dispensing syringe barrel (500mL) is used for storage of extra large-size fluids, mass potting, coating and filling. It features a highly transparent barrel with clear graduations, and the rubber piston forms a seal to prevent suck-back. The standard interface is compatible with adapters and dispensing nozzles. It can be used with dispensers, dispensing filling systems and automated production lines, and supports vacuum defoaming after glue filling prior to dispensing.

✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Medical-grade contact material optional

在线留言 免费寄样测试 工程师热线:189-2512-9293

Why Do We Need Extra Large-Size Syringe Barrels

Direct filling after defoaming, reducing material transfer steps and improving filling accuracy and efficiency.

Frequent Barrel Replacement

Medium and small syringe barrels have insufficient capacity. Frequent barrel replacement and shutdown occur during extra large-size continuous potting and filling, resulting in great loss of production line efficiency.

Air Entrapment During Glue Loading

Air bubbles are easily trapped when filling large volumes of glue, which leads to voids after potting and broken coating lines, resulting in defective finished products.

Unstable Glue Output

Poor piston sealing or loose connectors cause inconsistent glue output and dripping, making it difficult to ensure batch consistency.

✨ Traditional Dilemmas: Frequent replacement of small barrels, air entrapment during glue filling for large barrels, and inconsistent glue output — For extra large-volume continuous operation, inferior syringe barrels will halt the entire production line.

Why Choose SIENOX Syringe Barrels

Solve Pain Points of Material Filling and Storage

Larger Capacity

The extra-large 500CC size enables ultra-long operation with one-time material loading, reducing barrel replacement frequency and suitable for continuous potting and filling.

Reliable Sealing

High-quality rubber piston delivers smooth sealing for continuous and stable glue output with minimal dripping.

Compatible for Defoaming

After glue filling, it can be placed into vacuum/centrifugal defoamers to reduce bubbles and missing dots during potting.

✨

Instructions for Using Syringe Barrels with Equipment

SIENOX threaded syringe barrels can be used as supporting containers for SIENOX defoaming mixers.

SIENOX threaded syringe barrels can be used as supporting containers for SIENOX defoaming mixers. Load materials into the syringe barrel and place it in the mixing chamber for defoaming and mixing. After processing, take out the barrel, fit the dispensing nozzle, and start precise filling or dispensing without material transfer.



Operating Steps:

Load materials into the threaded syringe barrel and tighten the sealing cap

Put the syringe barrel into the mixing chamber of defoaming mixer and fix it in place

Set defoaming and mixing parameters and start the equipment

Take out the syringe barrel after completion and install the dispensing nozzle

Carry out precise dispensing or filling operation

Working Principle of Vacuum Defoaming Mixer.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ItemParameter
Capacity500CC (500mL)
Barrel MaterialHighly Transparent PP
Piston MaterialRubber (white / black optional)
ConnectorStandard Tapered Port / Luer Connector
Compatible Dispensing PartsAdapters, dispensing nozzles, general dispensing needles (needle caps available)
Operating Temperature0–50℃
PackagingIndividual package, dust-proof and moisture-proof
Compatible EquipmentDispensers, dispensing filling systems, defoamers, automated production lines

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 真空脱泡搅拌机是什么?用于哪些行业?

    真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。

  • 广州施诺斯主要生产哪些设备?

    主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。

  • 源头厂家采购脱泡设备有什么优势?

    源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。

  • 搅拌脱泡机的工作原理?

    施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。

  • 为什么选择施诺斯?

    施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

SpecificationCapacityApplication
3CC3mLMicro dispensing, precision coating, drop dispensing operation
5CC5mLSmall-volume dispensing, precision filling
10CC10mLSmall-volume dispensing, sample storage
30CC30mLSmall-volume filling, laboratory sample management
55CC55mLMedium & small volume filling, sample storage
100CC100mLMedium volume filling, matched for defoaming and stirring
300CC300mLStandard capacity defoaming & stirring, medium volume filling
500CC500mLMedium & large volume filling, matched for defoaming and stirring
960CC960mLLarge volume filling, mass material storage
......Larger sizes available
2600CC2600mLIndustrial-grade large volume filling, bulk storage

Multi‑Industry Solutions

Covering stirring and debubbling applications of typical materials across six major industries

Continuous Potting.jpg

Continuous Potting

Batch potting for large motors and transformers

Bulk Filling.jpg

Bulk Filling

Large-volume filling of adhesives and sealants

Large Area Coating.jpg

Large Area Coating

Coating of UV glue, silicone and waterproof glue

Epoxy Potting.jpg

Epoxy Potting

Storage for AB glue and potting compound

Industrial Glue Coating.jpg

Industrial Glue Coating

Glue coating for steel structure and waterproofing

Automated Production Line.jpg

Automated Production Line

Matched with dispensers and production line stations

Comprehensive Equipment Operation Demo Videos

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

AB Glue Mixing and Defoaming.jpg

AB Glue

Glue + Powder Mixing and Defoaming.jpg

Glue + Powder

Glass Powder Stirring and Defoaming.jpg

Glass Powder

Electronic Glue + Powder Stirring and Defoaming.jpg

Electronic Glue + Powder

Black Epoxy Resin Mixing and Defoaming.jpg

Epoxy Resin

Battery Slurry Stirring and Defoaming 02.jpg

Battery Slurry Powder

Precautions for Use

PrecautionsOperation Instructions
Reserved Space for FillingDo not fill glue over 3/4 of the barrel volume to reserve space for defoaming and piston movement.
Sealed StorageStore unused syringe barrels in sealed and dust-proof condition to prevent barrel scratches and contamination.
Glue Filling & DefoamingFor aerated glue, perform defoaming before dispensing after filling into barrel to reduce missing dots.
Compatible NozzlesSelect nozzle diameter according to glue viscosity to avoid nozzle clogging and stringing.

* Product parameters are subject to the actual goods. Samples are available for testing. Contact sales for customization requirements.
