SIENOX Threaded Dispensing Syringe Barrels


High-quality Virgin PP Material, Threaded Seal for Leakage Prevention · Acid & Alkali Resistant, Low Temperature Resistant

Full Sizes from 3CC to 2600CC + Threaded Sealing Leak-proof Design + Acid & Alkali Resistant, Low Temperature Resistant

SIENOX threaded syringe barrels are made of PP material with multiple sizes from 3CC to 2600CC and various color options. Temperature range: -24°C~60°C, acid and alkali resistant. Threaded sealing design compatible with all SIENOX defoaming mixers and various container interfaces.

✓ 0-50L  ✓ PP Material ✓ Multiple Color Options

在线留言 免费寄样测试 工程师热线:189-2512-9293

Why Dedicated Dispensing Syringe Barrels Are Required

Enables direct filling after defoaming to reduce material transfer steps and improve filling accuracy and efficiency.

Precise Dispensing to Reduce Material Loss

For valuable pastes, adhesives and electronic slurries, transferring with ordinary tools after defoaming leaves substantial residue on container walls and causes waste. Threaded syringe barrels allow precise extrusion with minimal residue and low loss, ideal for accurate dispensing of high‑value materials and small‑batch samples. Small sizes of 3CC‑10CC fit micro precision dispensing, while sizes above 300CC suit medium‑to‑large‑volume filling.

Sealed Storage for Moisture & Dust Protection

Certain materials such as electronic pastes, adhesives and pharmaceutical powders are sensitive to moisture and dust. Exposure to air may lead to moisture absorption, oxidation or contamination. Threaded syringe barrels with sealing caps create an air‑tight storage environment to block air and moisture and stabilize material quality. Threaded connections deliver better sealing than simple push‑fit ports with zero leakage during long‑term storage.

Seamless Compatibility with Defoaming Equipment

SIENOX threaded syringe barrels can serve as direct containers for vacuum defoaming mixers. After mixing and defoaming inside the barrel, materials can be dispensed or filled without transfer. It cuts material‑handling steps, prevents secondary bubble introduction and boosts process efficiency. Multiple capacities match different mixer models, covering micro‑scale lab tests through mass‑volume production.

✨ Traditional dispensing challenges: Decanting from beakers and filling with ordinary plastic bottles leads to heavy material residue and high waste. Open‑air operations easily introduce bubbles and dust. Poor sealing of standard bottle caps causes materials to absorb moisture and degrade during storage. Without precise control, inconsistent filling volumes disrupt downstream processes. Multiple containers are required for different batch sizes, resulting in messy management.

Why Choose SIENOX Threaded Syringe Barrels

Solve Pain Points in Material Dispensing and Storage

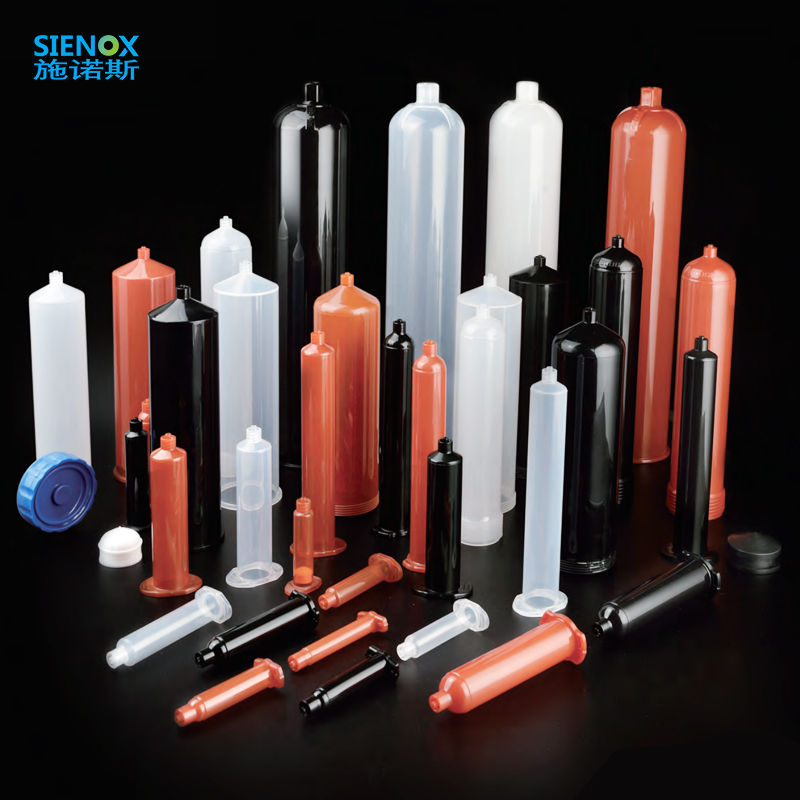

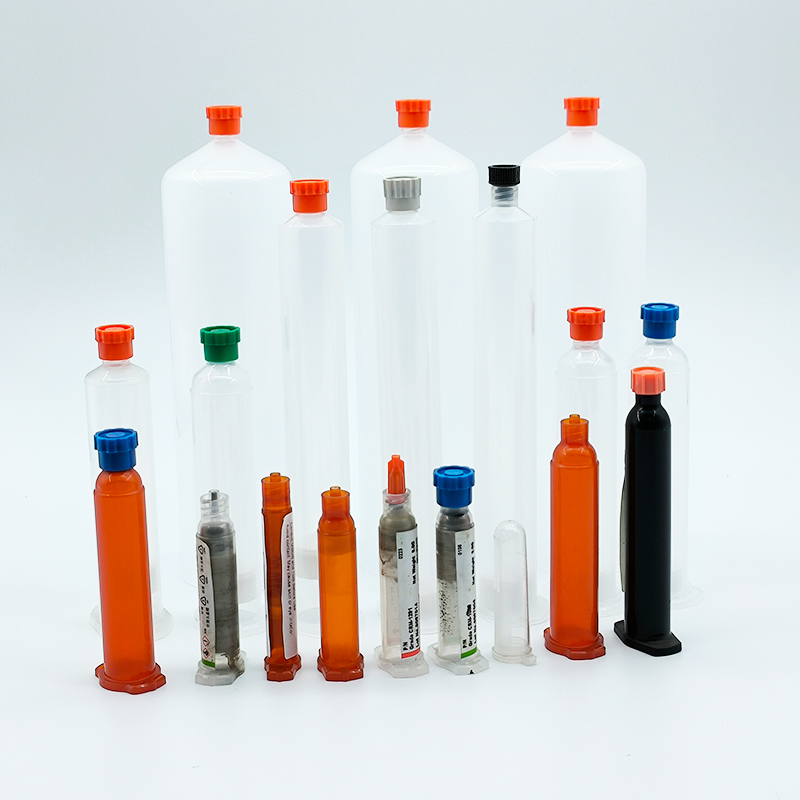

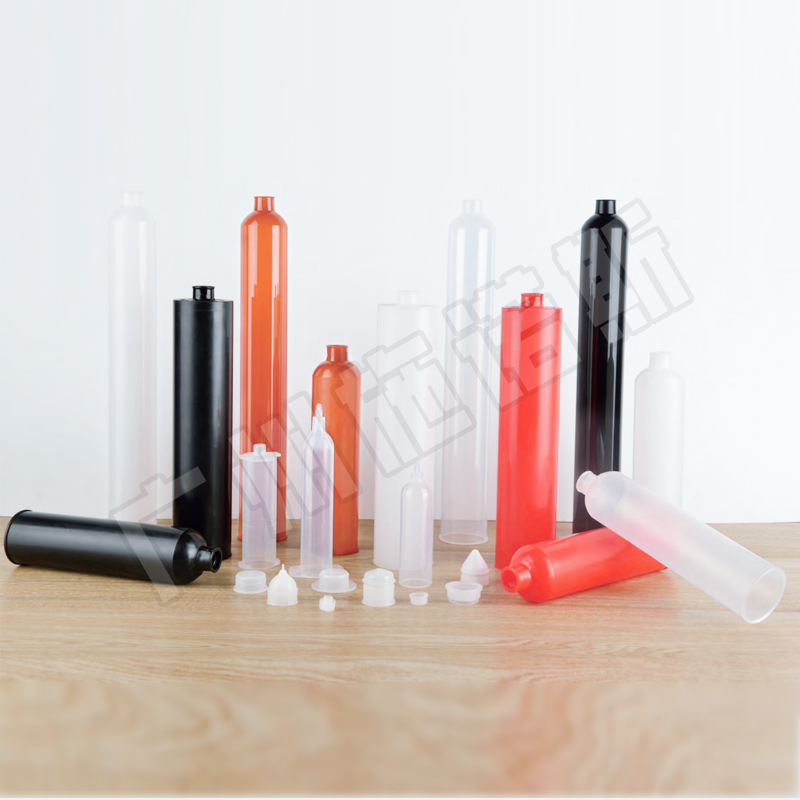

Full‑size Coverage from 3CC to 2600CC

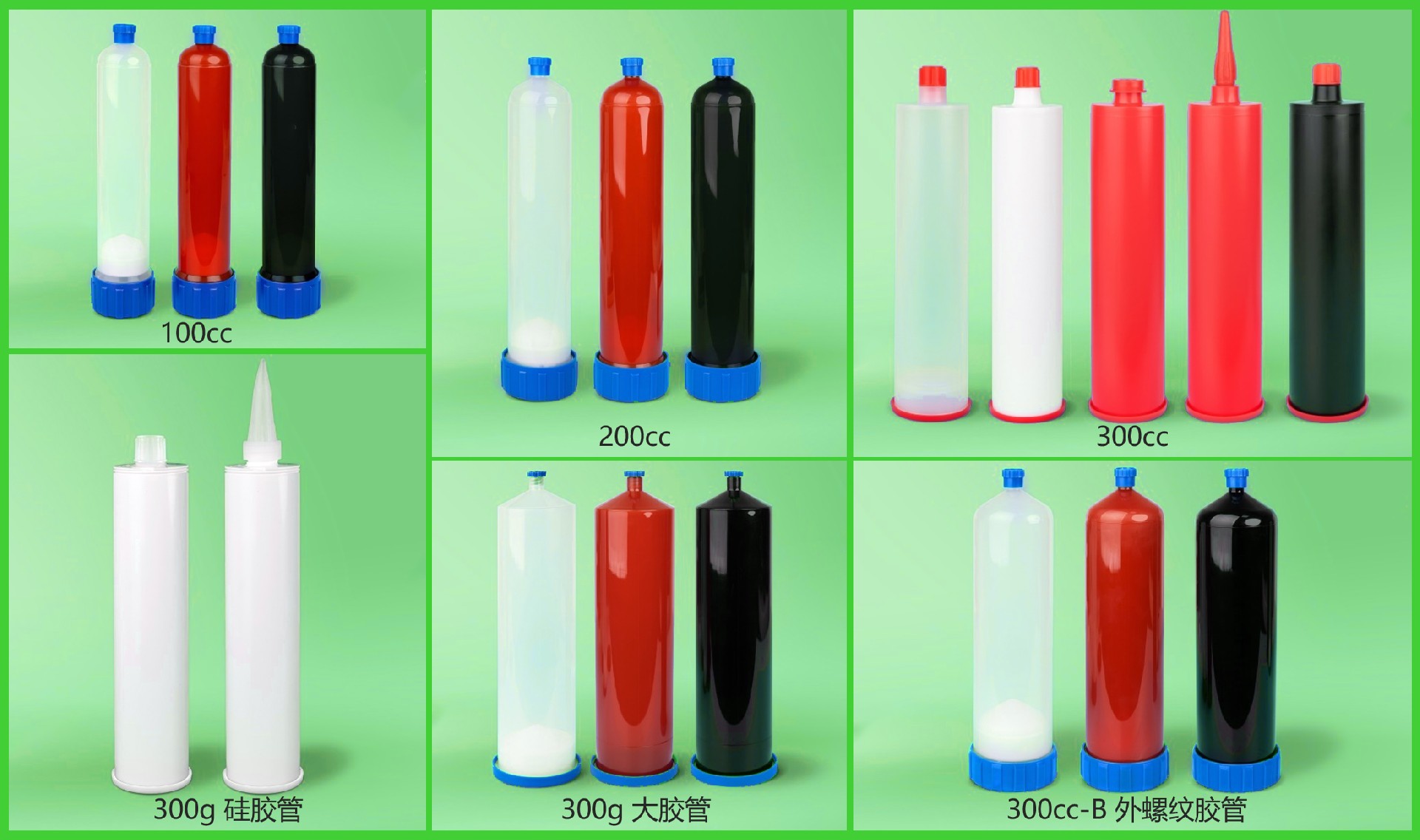

Available in 3CC, 5CC, 10CC, 30CC, 55CC, 100CC, 300CC, 500CC, 960CC up to 2600CC, covering full‑scene demands from micro dispensing to large‑volume filling. One product line meets all capacity requirements without multi‑source purchasing.

Safe & Reliable High‑grade Virgin PP Material

Made of high‑quality virgin high‑density PP plastic instead of recycled material. Pure material releases no impurities to prevent container‑caused contamination. Multiple color options facilitate classification and management of different materials. Good acid‑alkali resistance suits most water‑based, weak‑acid and weak‑alkaline materials. Smooth surface with uniform wall thickness delivers professional texture.

Leak‑proof Threaded Sealing Design

Tightened threaded joint creates reliable sealing with zero leakage under inversion or vibration. Compared with ordinary push‑fit connectors, threaded sealing offers longer‑lasting stability for long‑term storage and transportation. Used with dispensing needles, it enables precise glue output control for fine operations such as dispensing, coating and potting. Thick barrel wall provides drop resistance against breakage during handling and operation.

✨ Select 3‑10CC for micro precision dispensing; 30‑100CC for small‑volume filling and sample storage; 300‑500CC for vacuum‑mixing matching and medium‑volume filling; 960‑2600CC for large‑volume storage and industrial filling. Whether your process requires micro‑dose or large‑batch capacity, SIENOX threaded syringe barrels can deliver precise matching.

Instructions for Syringe Barrel and Equipment Matching Use

SIENOX threaded syringe barrels can be used as supporting containers for SIENOX vacuum defoaming mixers.

SIENOX threaded syringe barrels can be used as supporting containers for SIENOX vacuum defoaming mixers. Load materials into the syringe barrel and place it in the equipment chamber for mixing and defoaming. After completion, take out the barrel, fit the dispensing needle, and perform precise filling or dispensing without material transfer.



Operating Steps:

Load materials into the threaded syringe barrel and tighten the sealing cap

Place the syringe barrel into the chamber of the vacuum defoaming mixer and fix it in place

Set mixing‑defoaming parameters and start the equipment

Take out the syringe barrel upon completion and install the dispensing needle

Carry out precise dispensing or filling operations


Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

SpecificationCapacityApplication
3CC3mLMicro dispensing, precision coating, drop‑by‑drop operation
5CC5mLSmall‑volume dispensing, precise filling
10CC10mLSmall‑volume dispensing, sample storage
30CC30mLSmall‑volume filling, laboratory sample management
55CC55mLMedium‑small volume filling, sample storage
100CC100mLMedium‑volume filling, compatible with defoaming mixers
300CC300mLStandard‑volume defoaming mixing, medium‑volume filling
500CC500mLMedium‑large volume filling, compatible with defoaming mixers
960CC960mLLarge‑volume filling, bulk material storage
......Larger sizes available
2600CC2600mL Industrial large‑volume filling, bulk storage

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 真空脱泡搅拌机是什么?用于哪些行业?

    真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。

  • 广州施诺斯主要生产哪些设备?

    主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。

  • 源头厂家采购脱泡设备有什么优势?

    源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。

  • 搅拌脱泡机的工作原理?

    施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。

  • 为什么选择施诺斯?

    施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

SpecificationCapacityApplication
3CC3mLMicro dispensing, precision coating, drop‑by‑drop operation
5CC5mLSmall‑volume dispensing, precise filling
10CC10mLSmall‑volume dispensing, sample storage
30CC30mLSmall‑volume filling, lab sample management
55CC55mLMedium‑small volume filling, sample storage
100CC100mLMedium‑volume filling, compatible with defoaming mixers
300CC300mLStandard‑volume defoaming mixing, medium‑volume filling
500CC500mLMedium‑large volume filling, compatible with defoaming mixers
960CC960mLLarge‑volume filling, bulk material storage
......Larger sizes available
2600CC2600mLIndustrial large‑volume filling, bulk storage

Applicable Material Types

Covering stirring and debubbling applications of typical materials across six major industries


Powder

Metal Powder / Ceramic Powder / Pharmaceutical Powder


Solid Particles



Paste

Cream Paste


Adhesive

All Kinds of Glues


Slurry

Battery Slurry, Ceramic Slurry


Acid‑alkaline Materials


Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

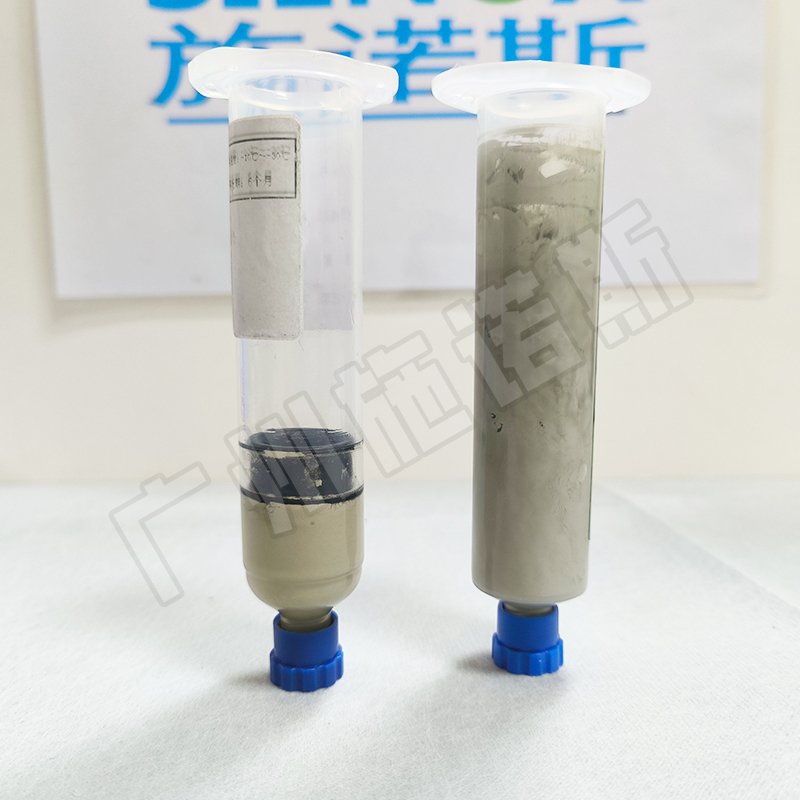

Lab Sample Actual Test Results


AB Glue


Glue with Powder


Glass Powder


Electronic Adhesive with Powder


Epoxy Resin


Battery Slurry Powder

Usage Notes

NotesDescription
Organic Solvent RestrictionPP material is not resistant to organic solvents. Do not use for materials containing organic solvents
Temperature LimitDo not operate above 60°C to prevent container deformation
Sealing InspectionCheck whether the threaded sealing cap is tightened before use to ensure reliable sealing
Cleaning & MaintenanceClean the container promptly after use and keep it clean
Dispensing Needle SelectionSelect needles with proper bore size according to material viscosity and glue output requirements
Specification MatchingDifferent equipment models support different syringe barrel ranges. Please consult for confirmation before selection

* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real‑world customer references.
