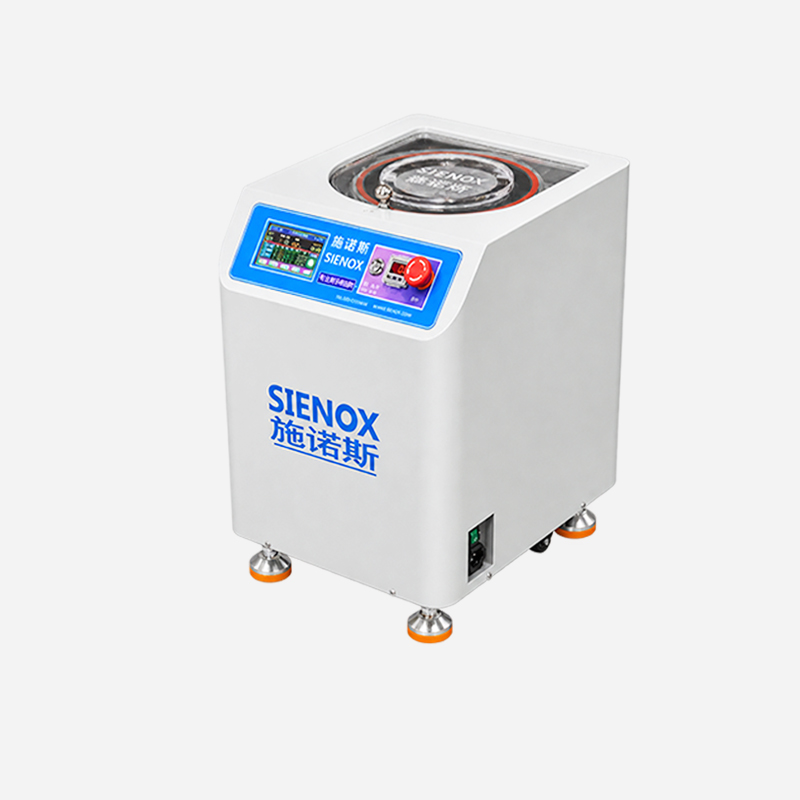

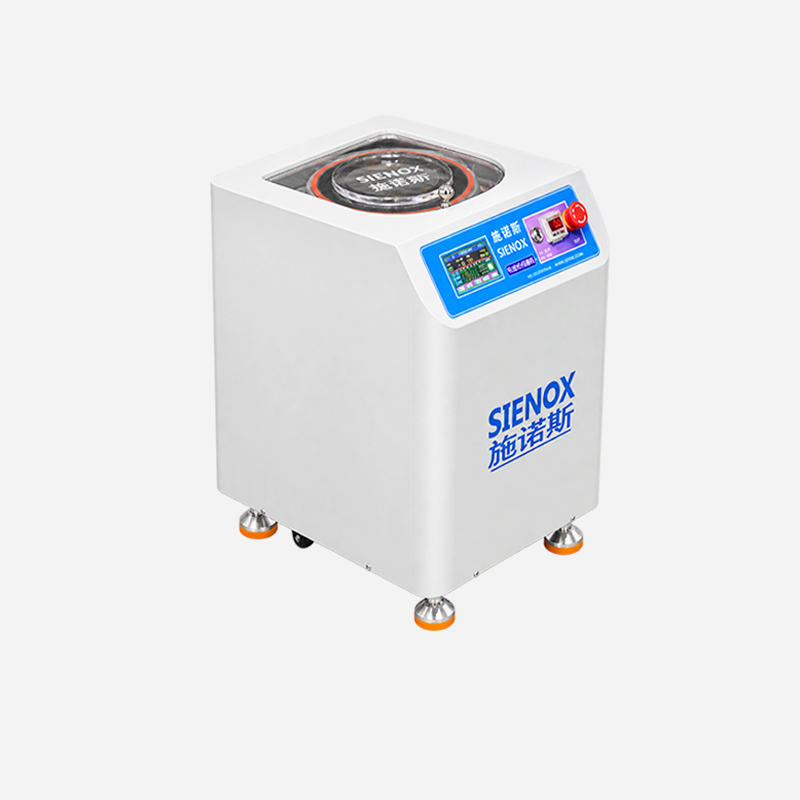

SIENOX Planetary Mixer‑Defoamer, SIE‑MIXF301
Freely‑Adjustable Revolution‑Rotation Ratio · One Unit for Multiple Material Processes
300 mL R&D Capacity + Adjustable Speed Ratio + 100 Recipe Memory
SIENOX SIE‑MIXF301 is a planetary mixer‑defoamer with adjustable revolution‑rotation ratio, designed for R&D and pilot‑test scenarios requiring flexible parameter tuning. Built upon MIX60 platform with added adjustable‑ratio function, it allows researchers to modify the ratio between revolution and rotation according to material properties, so as to obtain optimized mixing intensity and dispersion performance.
✓ CE Certification ✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Micro bubbles trapped inside materials directly impair product performance and the accuracy of process validation
Automotive ElectronicsBubbles in epoxy potting compounds for automotive ECUs and sensors cause partial discharge and degraded insulation, leading to component failure under long‑term vehicle vibration. Automotive‑grade standards demand void‑free potting layers; micro‑bubbles directly result in failed reliability tests. | Wearable DevicesIn dispensing processes for smartwatches and TWS earbuds, adhesive bubbles weaken bonding strength and trigger detachment during drop tests. Miniature packaging requires highly uniform glue layers; invisible micro‑bubbles also reduce production yield. | Composite MaterialsBubbles inside resin‑based composites turn into internal voids after curing, lowering interlaminar shear strength and impact resistance. Bubbles within prepreg resin impair fiber wet‑out and cause unsatisfactory mechanical performance of finished composites. |
✨ Drawbacks of traditional methods: Manual / impeller mixing entrains air; static degassing is slow and ineffective. Fixed‑ratio machines yield inconsistent results. Adjustable‑ratio planetary system tunes speed ratio for material‑specific mixing‑defoaming.
Why Choose SIE-MIXF301
Three Core Highlights for R&D Pilot Process Optimization
Adjustable Speed RatioThe key advantage of MIXF301 lies in freely adjustable revolution‑rotation speed ratio. Materials vary greatly in viscosity, particle size and density, and fixed‑ratio machines cannot deliver satisfactory mixing‑defoaming performance for all materials. With tunable speed ratio, researchers can set proper revolution‑rotation proportion for each material, strike a balance between mixing efficiency and defoaming effect, and realize process parameter optimization. | Process ValidationThe 300 mL capacity fits sample preparation in R&D and pilot‑scale tests. It provides sufficient volume for parameter verification without excessive material waste. 100‑recipe memory saves tuned speed‑ratio settings in one click. Different parameters for various materials can be quickly recalled for result reproduction. One unit covers the whole workflow from R&D exploration to pilot validation. | Wide CompatibilitySingle MIXF301 can replace multiple fixed‑ratio units. Tunable speed ratio adapts to adhesives, slurries, resins and other materials. Dual‑jar design processes two samples simultaneously for comparative experiments. Non‑contact mixing lowers contamination risk. Switch between materials simply by changing vessels without cleaning, ideal for frequent material‑switching in R&D labs. |
✨ Integrating adjustable speed ratio, process validation and flexible compatibility, the MIXF301 serves as an ideal device for material process parameter optimization and verification in R&D and pilot-scale stages.
Working Principle
Dual synchronous revolution and rotation drive with adjustable speed ratio enables flexible optimization for various materials.
Step 1: Centrifugal Force from Revolution The rotary plate spins at high speed and generates strong centrifugal force for materials inside the container, driving full convection to achieve macro mixing. Meanwhile, centrifugal force pushes low-density bubbles toward the rotating axis to gather and escape. Step 2: Shear Force from Rotation The container rotates around its own axis to produce directional shear force, breaking agglomerated particles for micro dispersion. Shear force also thins bubble membranes and accelerates bubble rupture. Step 3: Speed Ratio Adjustment for Optimized Performance The speed ratio between revolution and rotation can be freely adjusted according to material properties. Higher revolution ratio strengthens centrifugal defoaming for high-viscosity materials; higher rotation ratio enhances shear dispersion for easily agglomerated materials. Tuning the speed ratio balances mixing and defoaming performance. Revolution and rotation run synchronously. Materials complete the full workflow of "Mixing → Dispersion → Defoaming" inside the sealed container. Adjustable speed ratio enables one machine to fit multiple material processes without purchasing extra equipment. |  |
Technical Specifications at a Glance
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIXF301 |
| Mixing Capacity | 0‑300 mL (standard vessel) * Larger volume upon custom request |
| Vessel Type | Tube / Can / Jar; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Freely adjustable |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm |
| Net Weight | Approx. 115 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑MIX60 | SIE‑MIXF301 | SIE‑MIX90 |
| Mixing Capacity | 0‑300 mL (standard vessel) * Customizable | 0‑300 mL (standard vessel) * Customizable | 0‑1000 mL (standard vessel) * Customizable |
| Vessel Type | Tube / Can / Jar; adapters for syringes & cartridges available | Tube / Can / Jar; adapters for syringes & cartridges available | Tube / Can / Jar; adapters for syringes & cartridges available |
| Vessel Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0‑3000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) | 0‑2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Freely adjustable | Fixed planetary ratio |
| Vacuum Level | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) | 220V, 50/60Hz (110V US/JP standard optional) |
| Dimensions (W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 115 kg | 153 kg |
*** Models shown are typical configurations. SIENOX provides customized solutions according to customer requirements for model selection.
Multi‑Industry Solutions
Covers Mixing & Defoaming Applications for Typical Materials in Six Major Industries
Automotive ElectronicsEpoxy potting compound, thermal conductive gel, sealant, automotive‑grade adhesive, sensor encapsulation adhesive |
Wearable DevicesDispensing adhesive, encapsulation glue, UV adhesive, conductive adhesive, micro‑component bonding glue |
Composite MaterialsEpoxy resin system, prepreg resin, structural adhesive, fiber impregnating glue, interlayer adhesive |
Precision OpticsOptical adhesive, lens bonding glue, refractive index matching adhesive, optical silicone, UV‑curing adhesive |
Advanced Building MaterialsSealant, waterproof coating, structural adhesive, grouting material, functional coating |
Textile CoatingCoating adhesive, finishing agent, waterproof agent, flame‑retardant coating, functional coating slurry |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Measured Processing Results for Six Typical Materials
Paste‑like Materials |
Adhesive & Powder |
Polymer Materials |
Pharmaceutical Gels |
Silver Paste Materials |
Battery Slurries |
Measured Data Comparison
Material Before‑and‑after Degassing Comparison
Material Type | State Before Treatment | After Treatment by MIXF301 |
Thermal Conductive Gel | Dense microbubbles inside gel with uneven distribution and unstable thermal conductivity | Uniform and delicate bubble-free gel, qualified thermal conductivity and consistent heat distribution |
Epoxy Potting Adhesive | Massive bubbles inside adhesive, poor fluidity and obvious internal voids after curing | Smooth and well-mixed slurry without residual bubbles. Flat coated surface with consistent coating thickness |
Copper Paste | Obvious agglomeration and sedimentation of copper powder, surface bubbles and unstable conductivity | Uniformly dispersed copper powder, smooth bubble-free paste and stable conductive performance |
* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids |
AB Structural Adhesive Mixing & Defoaming Solution |
Mixing and Defoaming Solution for High‑Viscosity Colloid and Phosphor Powder Materials |
