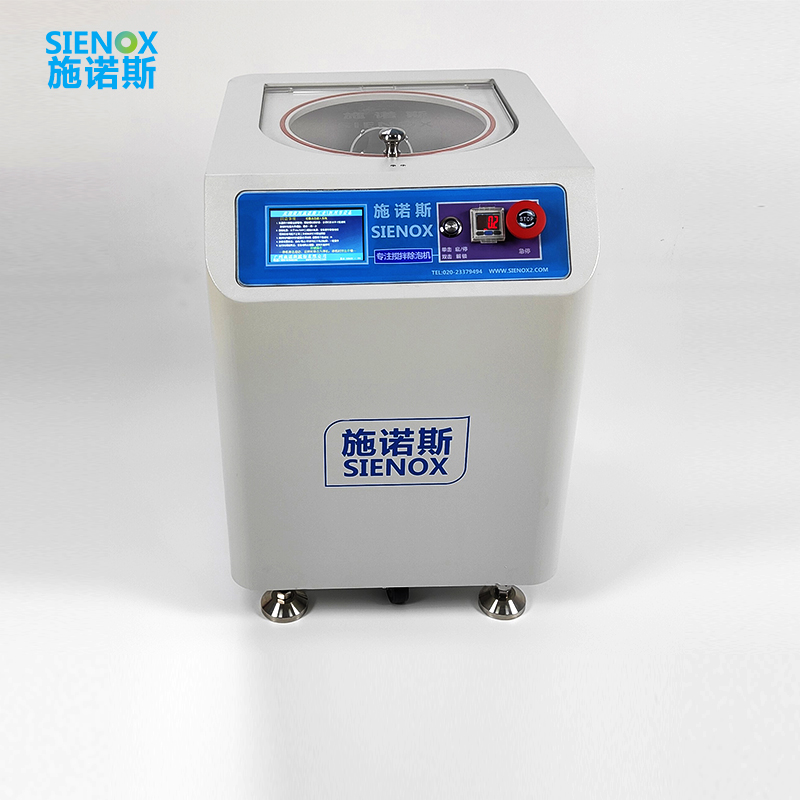

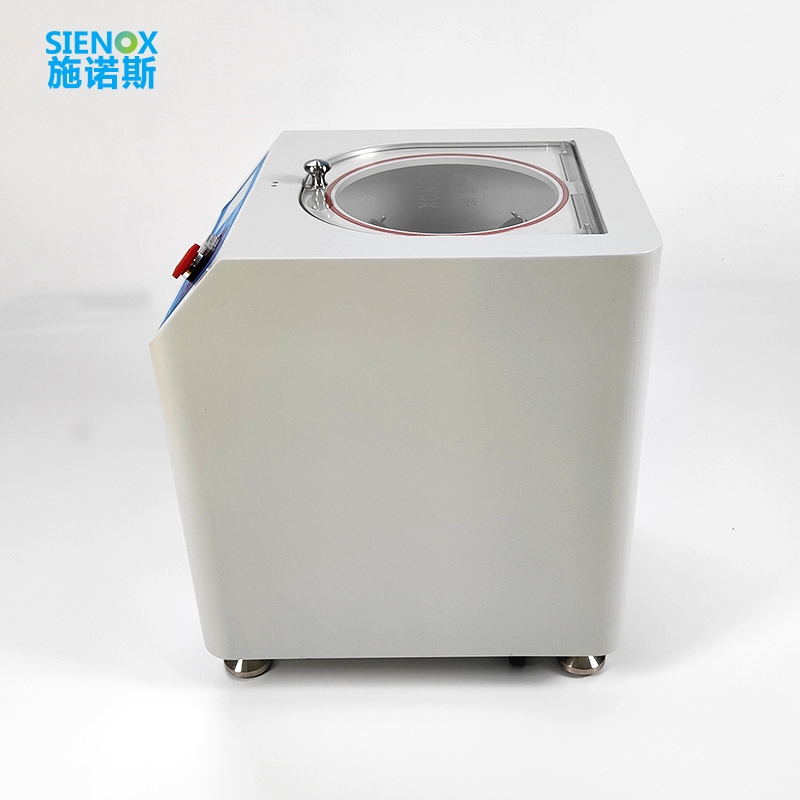

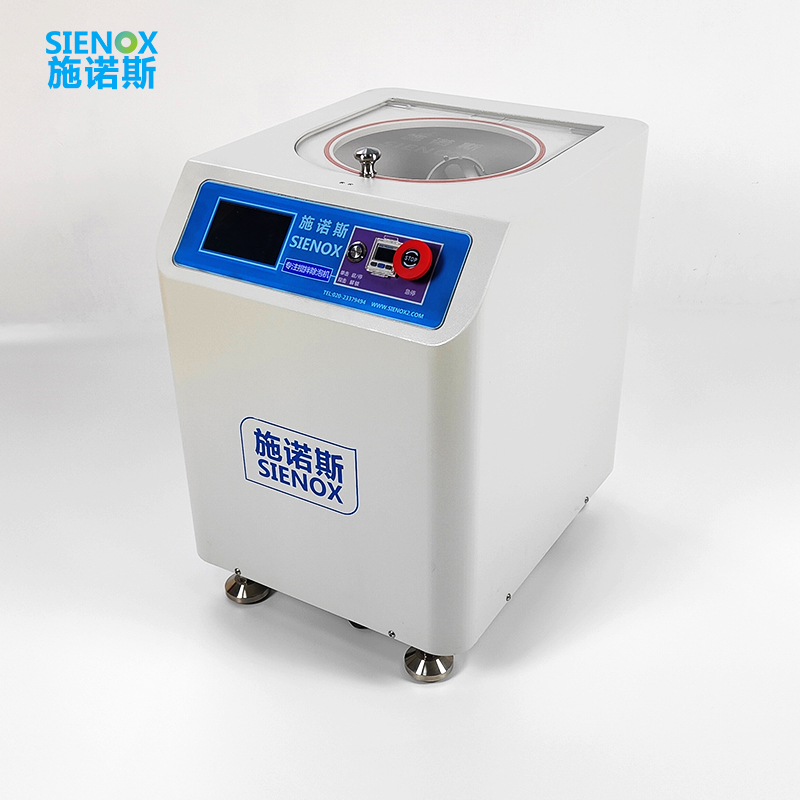

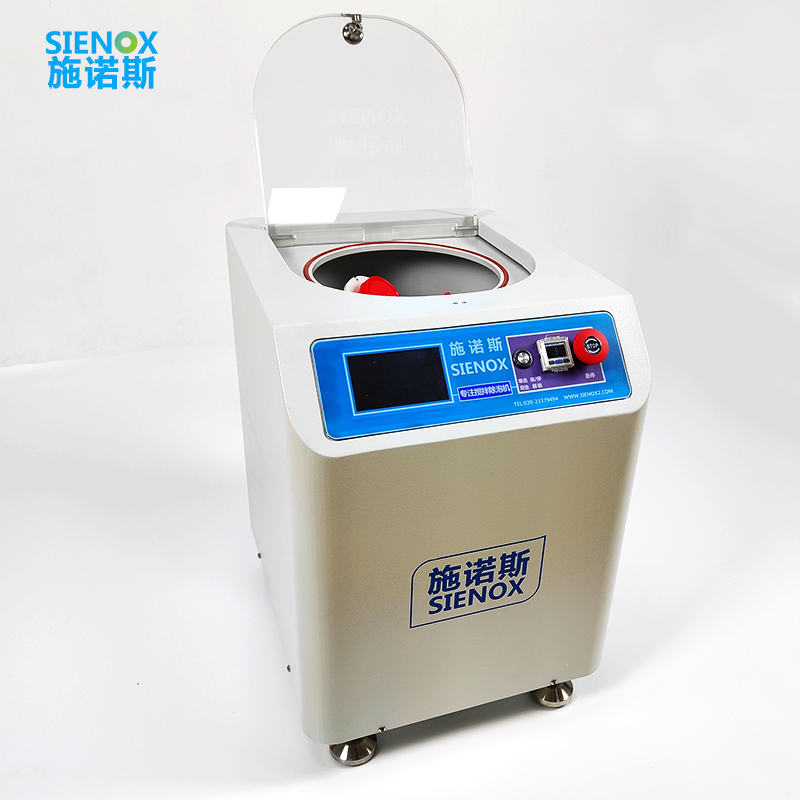

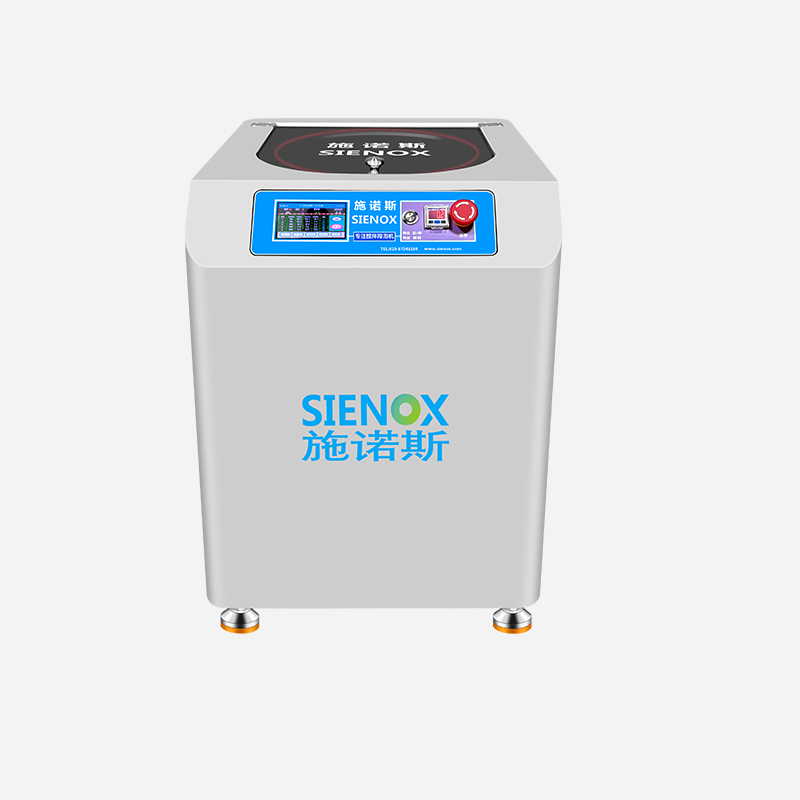

SIENOX Ultra‑Large‑Capacity Planetary Mixer‑Defoamer SIE‑CV20L
20L Dual‑Cup Planetary Mixing · Low‑Speed High‑Torque for Heavy‑Duty Mass Production of High‑Viscosity Materials
20L Ultra‑Large‑Capacity Dual‑Cup + 0‑600rpm Low‑Speed High‑Torque + 100 Recipe Sets Storage
SIE‑CV20L is an ultra‑large‑capacity heavy‑duty unit within SIENOX CV series. Equipped with 20L dual‑cup and 0‑600rpm low‑speed high‑torque mixing, it is specially engineered for ultra‑large‑batch production of high‑viscosity materials. Constructed with 304 stainless steel, the equipment supports long‑cycle continuous operation under industrial conditions.
✓ CE Certification ✓ ISO9001 Quality Management System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect product yield and performance stability.
Aerospace Composite MaterialsBubbles in aerospace composite resin matrix weaken inter‑layer bonding, impair component fatigue resistance, impact toughness and structural strength, and bring potential safety hazards. | Pharmaceutical Formulation IndustryBubbles in pharmaceutical gels and ointments undermine content uniformity, causing inaccurate dosage and jeopardizing therapeutic stability and medication safety. | Petrochemical IndustryBubbles in petrochemical catalyst slurries impair coating uniformity, reducing catalytic efficiency, reaction conversion rate and product yield. |
✨ Traditional defoaming challenges: Manual mixing is nearly impossible for ultra‑high‑viscosity materials; excessive speed of standard equipment causes severe splashing or thermal degradation; insufficient capacity demands repeated batch processing, while material change‑over and cleaning consume excessive time for high‑viscosity media, resulting in extremely low production‑line efficiency.
Why Choose SIE-CV20L
Three core features built for large‑volume mass‑production of high‑viscosity materials.
20L Dual‑Cup Batch Processing | Low‑Speed High‑Torque Homogeneous Mixing | Heavy‑Duty Long‑Term Operation |
✨ When production requirement reaches 20L level or ultra‑large‑batch processing of ultra‑high‑viscosity materials is needed, SIE‑CV20L serves as the heavy‑duty top‑capacity option within the CV series.
Working Principle
Synchronized dual‑power of revolution and rotation delivers deep mixing and defoaming for high‑viscosity materials via low‑speed high‑torque output.
Step 1: Centrifugal force from revolution Step 2: Shear force from rotation Revolution and rotation run simultaneously. Materials complete the full cycle of "Mixing → Dispersion → Defoaming" inside the sealed container. Constant speed ratio maintained by gear transmission guarantees consistency and repeatability of test data across batches. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑CV20L |
| Mixing Capacity | 0–20000 mL (standard container) * Larger volume available upon customization |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100×780×880mm |
| Net Weight | Approx. 225kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑CV2000 | SIE‑CV10L | SIE‑CV20L |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable | 0–10000 mL (standard container) * Customizable | 0–20000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 800 RPM (stepless adjustable) | 0 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed speed ratio | Fixed speed ratio | Fixed speed ratio |
| Vacuum Degree | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa | Optional: –98 kPa / –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100 × 780 × 880 mm | 1100 × 780 × 880 mm | 1100 × 780 × 880 mm |
| Net Weight | 225 kg | 225 kg | 225 kg |
| Certifications | CE | CE | CE |
*** Above are typical models only. SIENOS provides customized solutions according to customer requirements. For model‑selection consultation: 189‑2512‑9293
Multi‑Industry Solutions
Covers Mixing & Defoaming Applications for Typical Materials in Six Major Industries
Aerospace CompositesCarbon‑fiber prepreg resin, aerospace epoxy |
Pharmaceutical FormulationsMedicinal ointment base, pharmaceutical gel |
Petrochemical IndustryDrilling fluid additives, catalyst slurries |
 Fuel‑cell MaterialsProton‑exchange membrane slurry, catalyst layer slurry |
Coatings & ChemicalsIndustrial baking finish, powder coatings |
Industrial SealantsPolysulfide sealant, butyl sealant |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Measured Processing Results for Six Typical Materials
Paste Materials |
Adhesive & Powder |
Polymer Materials |
Pharmaceutical Gel |
Silver Paste Materials |
Battery Slurry |
Measured Data Comparison
Material Before‑and‑after Degassing Comparison
| Material Type | Status Before Treatment | After CV10L Treatment |
| Carbon‑fiber Prepreg Resin | Interlaminar shear strength deviation ±20% | Interlaminar shear strength deviation ±5% |
| Medicinal Ointment Base | Content deviation ±8%, with air bubbles | Content deviation ±2%, bubble‑free |
| Polysulfide Sealant | Porosity approx.10%, insufficient sealing performance | Porosity ＜1%, qualified sealing performance |
* Internal laboratory test data. Actual improvement varies with material formulation. Real customer cases are available upon request from sales.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids |
AB Structural Adhesive Mixing & Defoaming Solution |
High-Viscosity Colloid & Phosphor Material Mixing and Defoaming Solution |
