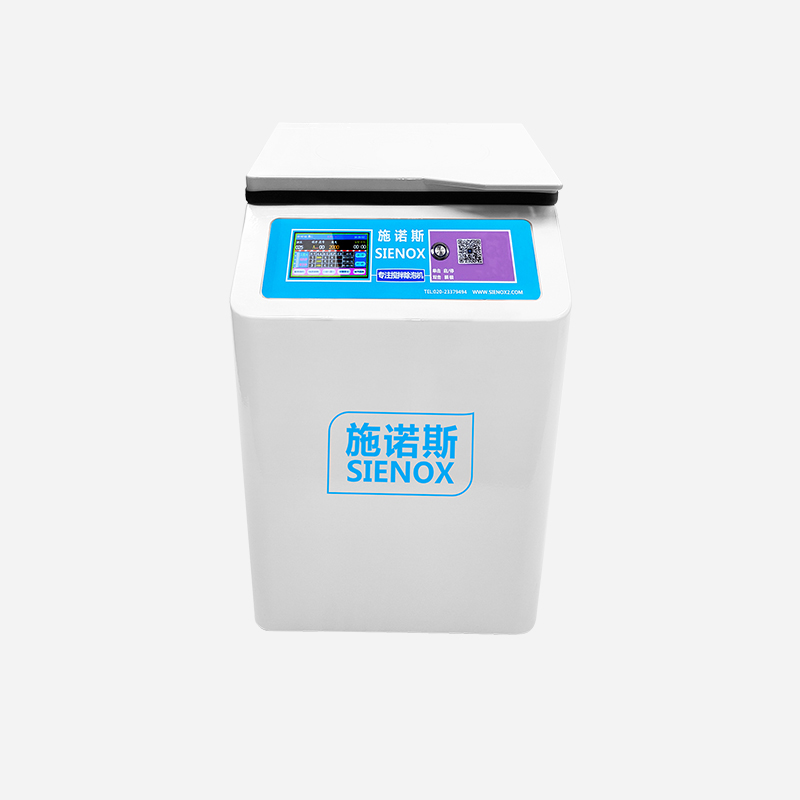

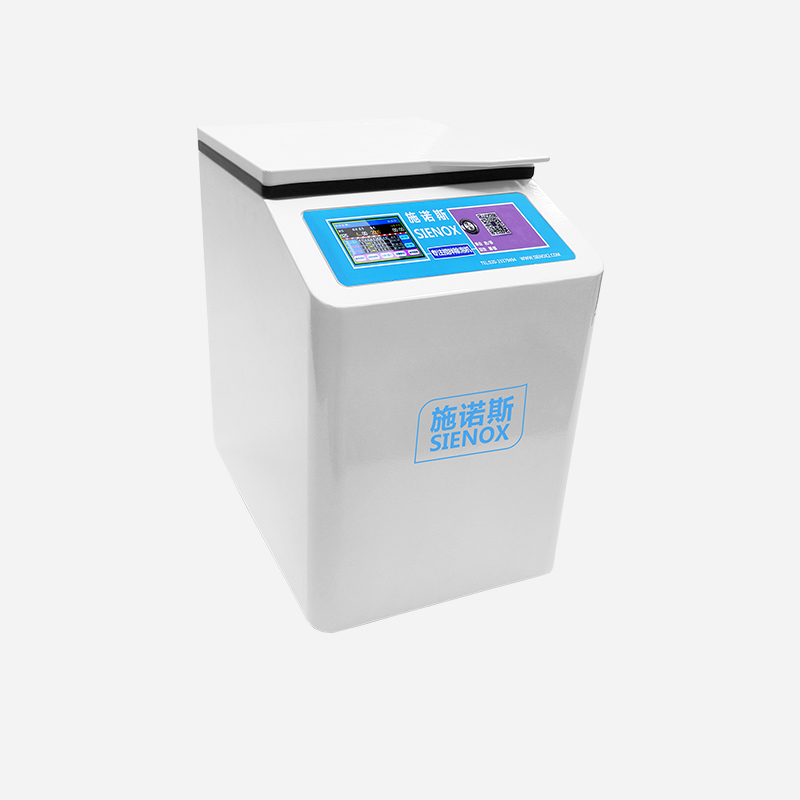

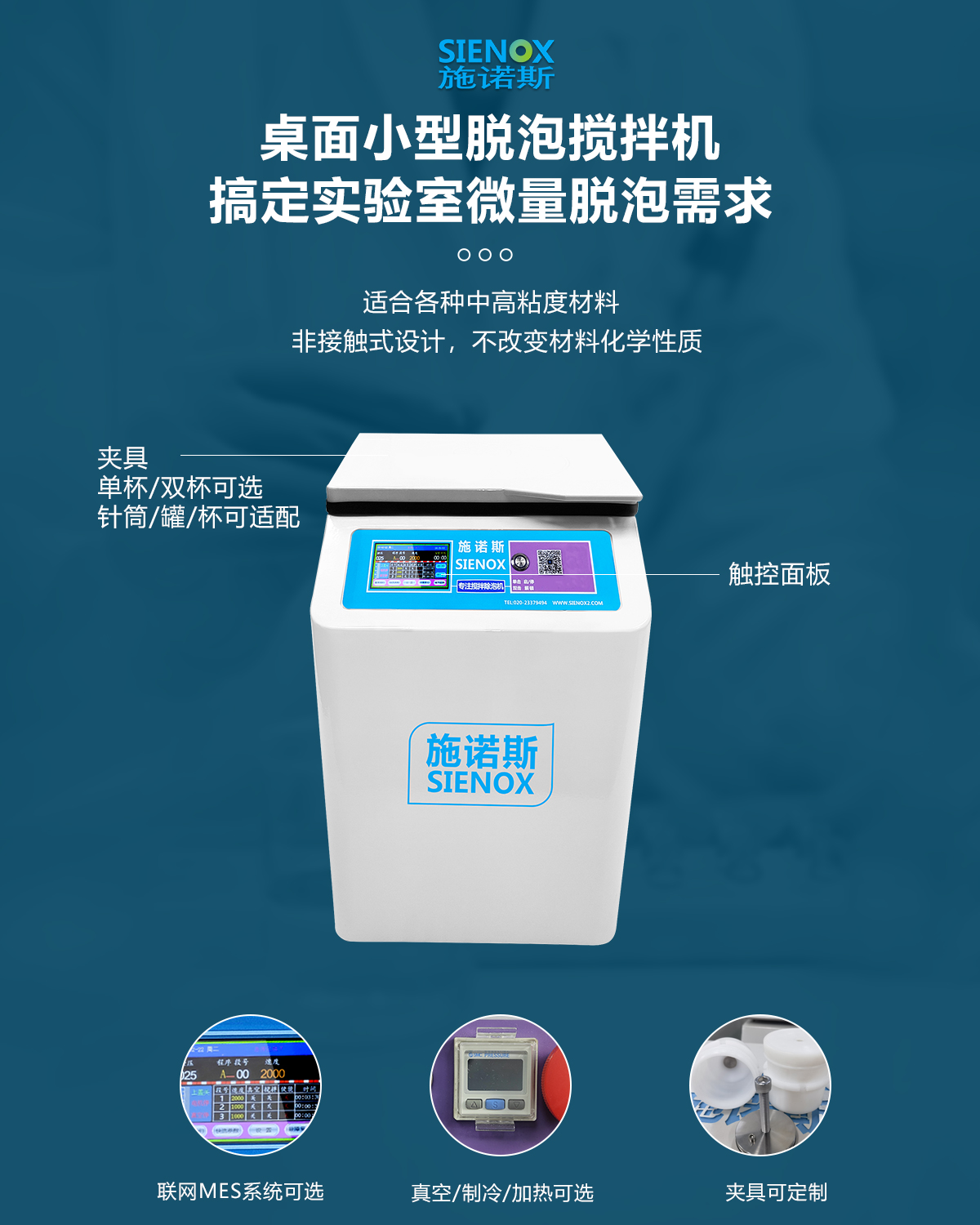

Lab Planetary Mixer‑Degasser SIE-SV200
Lab‑Oriented Design · Bench‑top for Direct Lab‑bench Placement
200mL R&D Sample Size | 3000rpm Gear‑Driven Precise Mixing | 100‑set Multi‑segment Programming
SINOS SIE-SV200 is a bench‑top planetary mixer‑degasser developed for lab research and sample testing. It fits directly on lab benches with no extra space required. The 200 mL sample capacity matches routine lab usage and reduces material waste.
Contact‑free mixing lowers material contamination risk, suitable for phosphor powder, epoxy resin, ceramic slurries, photosensitive resins and other common lab materials.
✓ CE Certification ✓ ISO9001 ✓ RoHS Compliance ✓ Custom Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly compromise test‑data accuracy and research‑conclusion reliability.
University & Lab ResearchBubbles introduced during mixing impair product purity and structure in new‑material synthesis. In polymer research, bubbles create internal voids and skew mechanical test data. For nanomaterial dispersion, bubbles trap agglomerated particles and distort evaluation results, undermining research reliability. | Biopharma R&DMicro‑bubbles in diagnostic reagents cause concentration deviations and unstable test repeatability. Bubbles in sustained‑release drugs lead to uneven dosage and distorted release‑curve measurement. Poor dispersion of vaccine adjuvants biases immune‑effect assessment and delays R&D progress. | Fine Chemical R&DBubbles trigger pinholes and orange‑peel defects in coating formulation tests. Trapped pigment agglomerates cause color deviation and reduced tinting strength. In adhesive development, mixing bubbles lower bonding‑strength readings and result in wrong formula judgements. |
✨ Limitations of conventional methods: Manual/impeller stirring draws extra air bubbles; static degassing is slow and inefficient. Professional contact‑free planetary mixers‑degassers separate bubbles by centrifugal force for consistent, repeatable lab test data.
Why Choose the SIE-SV200
Three Core Advantages for Lab‑scale R&D
Compact Bench‑top Lab‑Oriented Design
|
|
|
✨ The SIE-SV200 integrates compact bench‑top layout, gear‑driven mixing and multi‑segment programming. Optimized for space saving, reliable repeatable data and flexible processes, it fully meets lab R&D and sample‑testing requirements.
Working Principle
Synchronized dual‑drive revolution‑rotation ensures consistent experimental conditions for every test.
Step 1: Centrifugal force from revolution Step 2: Shear force from rotation Revolution and rotation run simultaneously. Materials complete the full cycle of "Mixing → Dispersion → Defoaming" inside the sealed container. Constant speed ratio maintained by gear transmission guarantees consistency and repeatability of test data across batches. |  |
Technical Specifications
Rigorous Equipment Performance Index Data Alignment
| Model | SIE-SV200 |
| Mixing Capacity | 0–200 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / jar / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 jar |
| Max Speed | 0 – 3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Level | Optional: –99 kPa |
| Control System | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 340 × 240 × 370 mm |
| Net Weight | Approx. 30 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE-SV200 | SIE‑CV300 | SIE‑CV1000 |
| Mixing Capacity | 0–200 mL (standard vessel) * Customizable | 0–300 mL (standard vessel) * Customizable | 0–1000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / jar / cup; adapters for syringes & cartridges available | Test tube / jar / cup; adapters for syringes & cartridges available | Test tube / jar / cup; adapters for syringes & cartridges available |
| Vessel Quantity | 1 jar | 1 or 2 jars (optional) | 1 or 2 jars (optional) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Level | Optional: –99 kPa | Optional: –99 kPa | Optional: –99 kPa |
| Control System | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets | Touch screen, stores 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 340 × 240 × 370 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 30 kg | 95 kg | 153 kg |
| Certifications | CE | CE | CE |
*** Above are typical models. SINOS provides customized solutions upon request. For selection consultation: 189‑2512‑9293
Multi‑Industry Solutions
Covers typical lab‑scale mixing and degassing applications for R&D materials across six major industries.
University ResearchNew‑material synthesis, nanomaterial dispersion, polymer research, alumina slurries, functional materials |
BiopharmaceuticalsDiagnostic reagents, sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives |
Fine ChemicalsCoating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries |
LED PackagingPhosphor dispersion, packaging silicone, optical adhesives, color‑matching slurries, reflective adhesives |  AerospaceConductive adhesives, structural adhesives, composite resins, coating materials, high‑temperature adhesives |
Testing InstitutesStandard sample preparation, reference sample production, incoming inspection, quality‑analysis samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
AB Glue |
Glue + Powder |
Glass Powder |
Electronic Adhesive + Powder |
Epoxy Resin |
Battery Slurry Powder |
Actual‑test Effect Comparison
Material Before‑and‑after Degassing Comparison
| Material Type | Status Before Treatment | After SIE-SV200 Treatment |
| Phosphor Slurry | Obvious phosphor agglomeration, turbid slurry with bubbles, uneven luminescence after coating | Well‑dispersed phosphor, fine & dense slurry, greatly improved luminescence consistency |
| Ceramic Slurry | Uneven particle distribution, internal bubbles, poor fluidity, high porosity of sintered parts | Uniform particle dispersion, bubble‑free fluent slurry, higher density of sintered components |
| Photoresin | Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing | Dense micro‑bubbles inside resin with slight turbidity, surface pits after curing |
* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids |
AB Structural Adhesive Mixing & Defoaming Solution |
High-Viscosity Colloid & Phosphor Material Mixing and Defoaming Solution |
