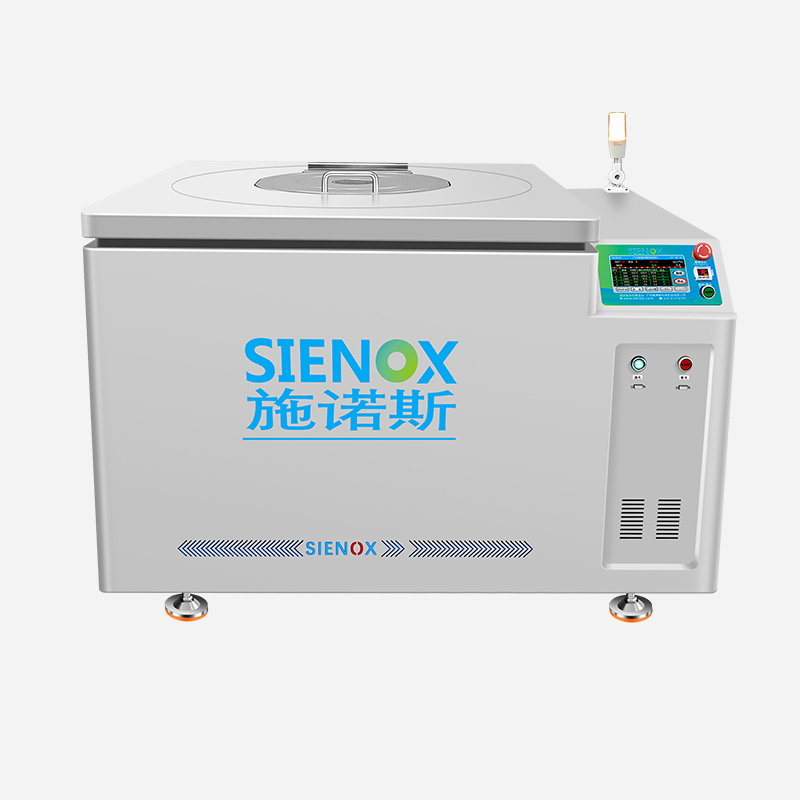

Temperature‑Controlled Vacuum Mixing‑Defoamer SIE‑MIX20LWK
20L Large‑volume For Mass Production · Integrated Mixing & Defoaming Equipment For High‑viscosity Slurries
20L Extra‑large Dual‑cup + Heating & Cooling Temperature Control + ‑98 kPa Vacuum In‑depth Defoaming
SIENOX SIE‑MIX20LWK is a temperature‑controlled vacuum mixing‑defoamer built for heavy‑duty mass production of temperature‑sensitive materials. As the flagship model with 20L dual‑cup capacity, it meets requirements for large‑batch continuous processing. It adjusts material temperature via thermal control, 0‑600 rpm low‑speed heavy‑load design adapts to high‑viscosity substances. Combined with ‑98 kPa vacuum defoaming and dual‑power revolution‑rotation mixing, it completes mixing and defoaming in one cycle.
✓ CE Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in large‑batch high‑viscosity materials directly affect product yield and performance stability.
New Energy IndustryBubbles in lithium‑ion battery anode slurry affect coating areal density and battery capacity consistency; bubbles in energy‑storage electrode slurry reduce electrode energy density. Large‑volume mixing generates substantial heat, temperature‑controlled defoaming stabilizes slurry temperature window and prevents rheological property changes caused by overheating. | Adhesive IndustryBubbles in industrial structural adhesives cause fluctuation of bonding strength and cavities on bearing surfaces; bubbles in silicone sealants lead to sealing surface leakage. For large‑batch adhesive processing, temperature control manages curing exothermic reaction and restrains excessive temperature from aggravating bubble generation. | Advanced Material IndustryBubbles in functional coating liquid trigger coating defects and reduced adhesion; bubbles in ceramic slurry bring pores and unstable density after sintering. Advanced materials have narrow process parameter windows; temperature‑controlled defoaming precisely regulates material temperature and guarantees batch‑to‑batch performance consistency. |
✨ Traditional defoaming dilemmas: manual stirring is barely workable for large‑batch high‑viscosity materials; repeated batch processing with small‑capacity devices costs much time on material replacement and cleaning; static defoaming shows limited performance on high‑viscosity substances. Conventional equipment provides no temperature control, and simple heating tends to degrade temperature‑sensitive materials. This solution combines centrifugal mixing, ‑98 kPa vacuum and precise temperature control to finish mixing, thermal regulation and defoaming in one single step for 20L per batch.
Why Choose SIE‑MIX20LWK
Three Core Advantages Cover Full‑range Demands of Temperature‑Controlled Vacuum Mixing & Defoaming
20L Extra‑large Dual‑stationStandard dual‑bucket loading capacity of 20L per batch. Heavy‑duty transmission adapts to ultra‑high‑viscosity materials, expandable up to 50L large volume for all‑day continuous factory mass production. | Stable Long‑term Operation With Vacuum, Temperature Control & Heavy‑load CapacityStandard ‑98 kPa vacuum system. Centrifugal force removes large bubbles while vacuum negative pressure eliminates deep‑seated micro‑bubbles inside high‑viscosity materials. Vacuum works synchronously with temperature control: heating reduces viscosity to accelerate bubble discharge; vacuum compensates defoaming efficiency under cooling condition. The 950 kg heavy‑duty frame delivers stable and reliable long‑time operation at low speed and high torque. | Full‑process Temperature Control & MES IntegrationDual‑mode temperature control reduces viscosity by heating and suppresses thermal degradation by cooling. Optional fixed / freely adjustable planetary ratio fits diverse material processes. Optional MES integration realizes full‑process data traceability. Micro‑computer control stores 100 recipe sets, built‑in multi‑safety protections for multi‑shift production. |
✨ MIX20LWK is the flagship capacity‑range model, ideal for large‑volume temperature‑controlled mass production of temperature‑sensitive materials such as new energy, semiconductors, adhesives and advanced new materials.
Working Principle
SIE‑MIX20LWK adopts synergistic process of planetary revolution, container rotation, sealed vacuum defoaming and temperature control to complete mixing, thermal regulation and defoaming in one step.
Planetary Revolution The main plate revolves around the main shaft to generate centrifugal force, pushing ultra-large-volume materials toward the container wall, breaking powder agglomerates and improving stratification of high-viscosity materials. The temperature control system runs synchronously to maintain target temperature. Container Rotation Reverse rotation of the material cup creates 360° fluid turbulence for full homogeneous mixing. No stirring paddle contacts materials to avoid contamination. Low speed and high torque output adapts to high-viscosity and ultra-large-batch materials. Sealed Vacuum Defoaming Precise Temperature Control for Material State Temperature control runs through the whole stirring and defoaming process: heating mode reduces viscosity to improve fluidity and accelerate bubble removal; cooling mode suppresses thermal degradation and controls exothermic reactions. Temperature control works synchronously with stirring and defoaming, no separate temperature adjustment procedure required. Planetary revolution, container rotation, sealed vacuum defoaming and dual-mode temperature control work together to complete the full workflow of Mixing → Dispersion → Vacuum Defoaming → Temperature Adjustment in one step. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX20LWK |
| Mixing Capacity | 0‑15L (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes & cartridges supported |
| Container Quantity | 1 or 2 cans (user‑selectable) |
| Max Speed | 0‑600 RPM (stepless adjustable) |
| Temperature Mode | Heating / Cooling |
| Vacuum Level | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 1735 × 1560 × 965 mm |
| Net Weight | 830kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX5000WK | SIE‑MIX15LWK | SIE‑MIX20LWK |
| Mixing Capacity | 0‑5000 mL (standard container) * Customizable | 0‑15L (standard container) * Customizable | 0‑20L (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringes & cartridges supported | Test tube / Can / Cup; adapters for syringes & cartridges supported | Test tube / Can / Cup; adapters for syringes & cartridges supported |
| Container Quantity | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0‑1200 RPM (stepless adjustable) | 0‑800 RPM (stepless adjustable) | 0‑600 RPM (stepless adjustable) |
| Temperature Mode | Heating / Cooling | Heating / Cooling | Heating / Cooling |
| Vacuum Level | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa | Standard: ‑98 kPa / Optional: ‑100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 1370 ×1130 × 965mm | 1735 × 1560 × 965 mm | 1870 × 1380 × 1160 mm |
| Net Weight | 550kg | 830 kg | 900 kg |
*** Above are typical models only, customized solutions are available upon customer requirements.
Measured Defoaming‑Process Performance
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Battery IndustryLithium‑ion battery cathode slurry, lithium‑ion battery anode slurry, solid electrolyte slurry, battery diaphragm coating liquid, battery conductive slurry |
Energy IndustryFuel cell catalytic layer slurry, proton exchange membrane slurry, energy‑storage electrode slurry, supercapacitor slurry, electrolyte additives |
Adhesive & Sealant IndustryIndustrial structural adhesive, epoxy sealant, polysulfide sealant, silicone structural adhesive, hot‑melt adhesive slurry |
Chemical IndustryChemical slurry, resin intermediate, catalyst slurry, functional coating liquid, reactive adhesive |
Electronics IndustryElectronic encapsulation adhesive, conductive silver adhesive, insulating black adhesive, LED phosphor powder, semiconductor encapsulation material |
Medical Device IndustryMedical catheter adhesive, medical sensor encapsulation adhesive, dental resin, medical transparent gel, sterile bonding adhesive |
Measured Defoaming‑Process Performance
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
AB Glue |
Potting Compound |
Electronic Slurry + Adhesive |
Structural Adhesive |
Gel |
Biogel |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Condition Before Treatment | After MIX20LWK Treatment |
| Lithium‑ion Battery Anode Slurry | Abundant bubbles inside slurry, ±15% deviation of coating areal density, large fluctuation of battery capacity | Bubbles eliminated, ±3% deviation of coating areal density, improved capacity consistency |
| Semiconductor Underfill Adhesive | Dense bubbles in adhesive, chip stress concentration rate approx.8%, reliability fluctuation | Bubbles eliminated, stress concentration rate below 1%, stable reliability |
| Polyurethane Structural Adhesive | Dense bubbles in adhesive, ±25% bonding strength deviation, cavities on bearing surface | Bubbles eliminated, ±5% bonding strength deviation, continuous bearing surface |
* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
