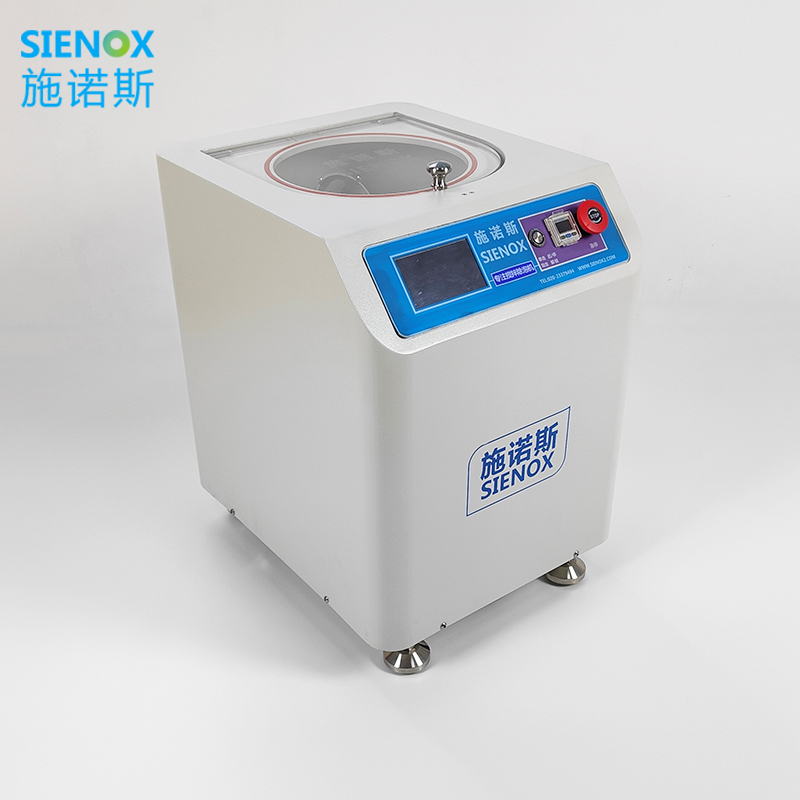

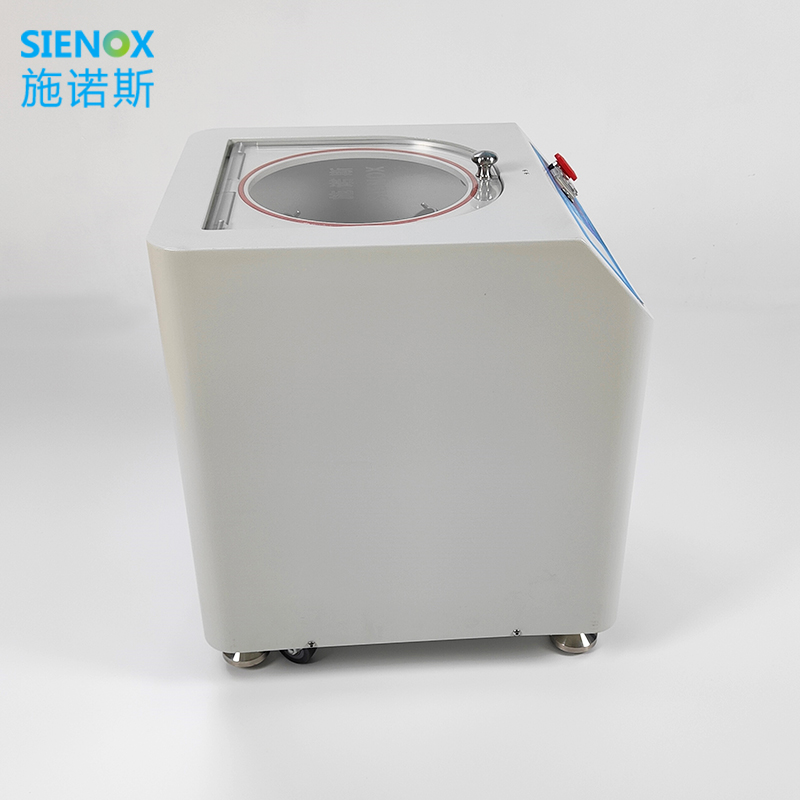

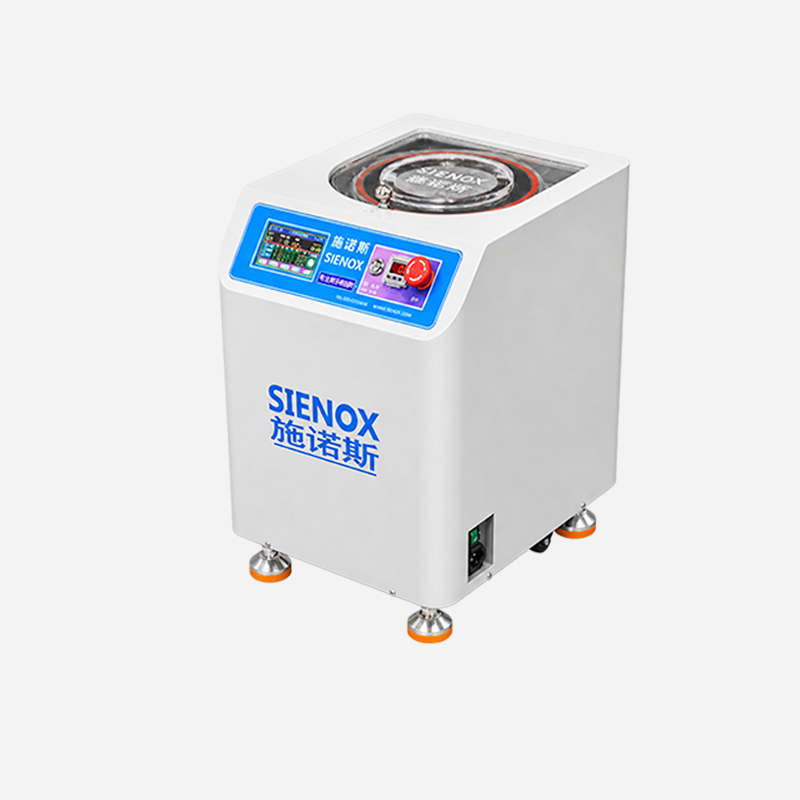

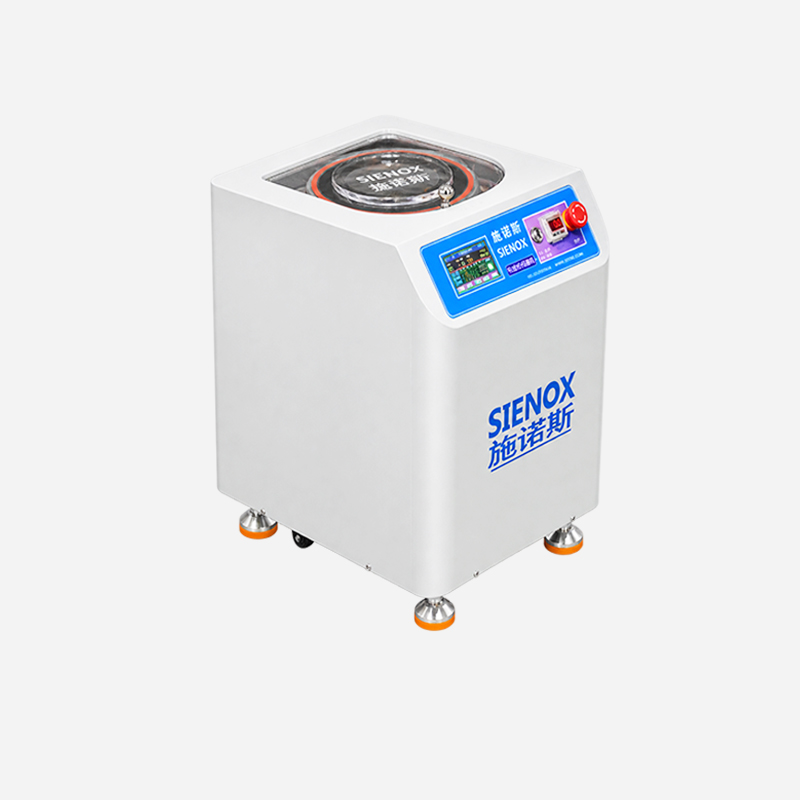

Laboratory Homogenizer SIE‑MIX60
High‑speed Emulsification & Dispersion · Precision Assistant for Laboratory Formula R&D
High‑speed emulsification + 0‑300mL micro dual‑tank processing + compact body for plug‑and‑play operation
SIE‑MIX60 Laboratory Homogenizer is a compact emulsifying and dispersing device for laboratory R&D. Adjustable speed ranges from 0‑3000rpm with 0‑300mL processing volume. Dual‑tank simultaneous design supports comparative experiments. Featuring compact structure and easy operation, it is suitable for formula development and small‑batch verification in cosmetics, pharmaceuticals, nanomaterials and other industries.
✓ CE Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Laboratory Homogenizer is Required
Small‑batch Design with Precisely Adjustable Rotation Speed
Pharmaceutical & Biotechnology IndustryR&D of pharmaceutical preparations such as creams, ointments and suspensions requires repeated formula adjustment, with experimental volumes ranging from tens to hundreds of milliliters. Large‑scale equipment delivers insufficient emulsification for small samples due to low filling volume; manual grinding fails to guarantee batch‑to‑batch consistency. | Cosmetics & Daily‑chemical IndustryNew product development of essences, lotions and creams requires continuous adjustment of emulsifiers and process parameters. Researchers expect to compare emulsification performance of different formulas under identical batch conditions. Sequential testing will double the experimental cycle. | Nanomaterials & Scientific Research IndustryDispersion tests for nanomaterials such as silver nanoparticles and phosphors demand high‑precision equipment. Small sample volumes are required with strict standards for dispersion uniformity. |
✨ Traditional dilemmas: Poor emulsification caused by insufficient filling when using large‑scale equipment for small lab samples; time‑consuming manual grinding with prominent batch variations; sequential testing required for comparing two formulas. A small‑batch laboratory homogenizer with dual‑tank simultaneous‑processing solves the above problems effectively.
Why Choose the Laboratory Homogenizer
Solve core pain points of emulsification and dispersion in laboratory R&D
High Speed for Sufficient Emulsification of Micro‑samplesAdjustable speed: 0‑3000rpm, the highest‑speed model in this series. High rotating speed generates stronger shear force, achieving uniform dispersion in short time for materials requiring intensive emulsification such as low‑viscosity essences and nanoparticle suspensions. Fixed‑speed‑ratio design ensures stable operation and favorable parameter reproducibility for reliable formula verification results. | Dual‑tank Simultaneous Processing, Complete Comparative Tests in One Run1‑by‑2 tank configuration allows simultaneous emulsification of two samples under identical rotating speed and time parameters. For experiments comparing different emulsifier dosages or formula ratios, dual‑tank simultaneous processing obtains comparative data under identical conditions, ensuring experimental efficiency and data comparability. | Compact Body, Plug‑and‑Play on Laboratory BenchOverall dimension: only 51×43×50 cm, weight 95 kg. Fits standard laboratory bench without extra rack or dedicated space. Compatible with tubes, tanks, cups and other vessels to flexibly meet loading requirements of diverse experiments. Heating / cooling module and network connectivity are optional for on‑demand expansion. |
✨ Suitable for scenarios such as cosmetic formula screening, small‑batch pharmaceutical preparation and nanomaterial dispersion verification.
Product Features
3000rpm High‑speed Emulsification Adjustable speed ranges from 0‑3000rpm, representing a high‑speed range among laboratory homogenizers. High rotating speed delivers stronger shear force and finer emulsified particle size. For materials requiring sufficient emulsification such as essences and nano‑suspensions, uniform and fine emulsification effect can be achieved within short time. Fixed speed ratio design ensures stable operation and favorable parameter reproducibility. Dual‑tank Simultaneous Design 1×2‑tank configuration enables simultaneous processing of two samples. No queuing is required for comparative experiments, and two sets of data under identical conditions can be obtained in one run. Compatible with tubes, tanks and cups for flexible vessel selection according to experimental volume. 0‑300mL Precisely Matches Laboratory Volume Processing volume 0‑300mL covers common laboratory volumes from micro‑verification to small‑batch preparation. Avoid insufficient emulsification caused by under‑filling and material waste brought by oversized equipment. Compact Body Design Overall dimension 51×43×50cm, weight 95kg, fits standard laboratory bench. Small footprint and easy movement, ideal for R&D laboratories with limited space. Optional Vacuum & Temperature‑control Expansion ‑98kPa vacuum degree enables synchronous debubbling during emulsification to reduce subsequent procedures. Heating / cooling module is optional for temperature‑dependent emulsification processes; network function is available for data logging and remote monitoring. Safety Lock Protection Equipped with safety lock, the device cannot start if vessels are not properly fixed to guarantee operational safety. The safety design brings reliable operation for multi‑user laboratory scenarios. | ![]() |
Quick View of Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX60 |
| Mixing Volume | 0–300 mL (standard vessel) * Larger volume customizable |
| Vessel Type | Test tube / tank / cup; compatible with syringe & cartridge adapters |
| Vessel Quantity | 1 or 2 tanks (user‑selectable) |
| Max Rotation Speed | 0 – 3000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 510 × 430 × 500 mm |
| Net Weight | Approx. 95 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么?用于哪些行业?
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备?
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势?
源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。
-
搅拌脱泡机的工作原理?
施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。
-
为什么选择施诺斯?
施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX60 | SIE‑MIXF301 | SIE‑MIX90 |
| Mixing Volume | 0–300 mL (standard vessel) * Customizable | 0–300 mL (standard vessel) * Customizable | 0–1000 mL (standard vessel) * Customizable |
| Vessel Type | Test tube / tank / cup; compatible with syringe & cartridge adapters | Test tube / tank / cup; compatible with syringe & cartridge adapters | Test tube / tank / cup; compatible with syringe & cartridge adapters |
| Vessel Quantity | 1 or 2 tanks (user‑selectable) | 1 or 2 tanks (user‑selectable) | 1 or 2 tanks (user‑selectable) |
| Max Rotation Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Freely adjustable | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimensions(W×D×H) | 510 × 430 × 500 mm | 510 × 430 × 500 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 115kg | 153 kg |
***The above are typical models only. SIENOX provides customized solutions upon customer requirements. For model selection: 189‑2512‑9293
Multi‑Industry Solutions
Covering stirring and debubbling applications of typical materials across six major industries
Adhesive R&DEpoxy structural adhesive, sealant, hot‑melt adhesive, pressure‑sensitive adhesive, modified adhesive |
Precision Electronic AssemblyUnderfill, conductive adhesive, die attach adhesive, dispensing adhesive, chip bonding adhesive |
BiosensorsEncapsulant, reagent immobilization material, microfluidic bonding adhesive, biocompatible adhesive, sensor sealant |
Microelectronic PackagingPackaging epoxy, molding compound, lead bonding adhesive, substrate bonding adhesive, passivation layer material |
Functional CoatingsHydrophobic coating, conductive coating, insulating coating, anti‑corrosion coating, wear‑resistant coating |
Electronic PastesSilver paste, copper paste, carbon paste, resistance paste, dielectric paste |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Measured Processing Results for Six Typical Materials
Paste‑like Materials |
Adhesive with Powder |
Polymer Materials |
Pharmaceutical Gels |
Silver Paste Materials |
Battery Slurries |
Measured Data Comparison
Comparison of Defoaming Effects for Three Representative Materials
| Material Type | Status Before Treatment | After MIX60 Treatment |
| Silver Paste | Visible bubbles cover slurry surface, uneven silver‑powder distribution with obvious agglomeration and sedimentation | Smooth and dense slurry surface, silver powder evenly dispersed without agglomeration, good fluidity and stable conductivity |
| Battery Cathode Slurry | Numerous internal bubbles and poor fluidity, causing streaks and pinholes during coating | Uniform and smooth slurry without residual bubbles, flat coated surface with consistent coating thickness |
| Epoxy Adhesive (AB Glue) | Dense micro‑bubbles inside mixed adhesive with milky turbidity, uneven surface after curing | Transparent clear adhesive with no visible bubbles, smooth surface after curing and dense cross‑section without voids |
* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real‑world customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
