SIENOX Matching PP Mixing Tank 0‑50L


Full‑range Sizes from 12 mL to 50 L · Premium Virgin PP Resistant to Acid, Alkali and Low Temperature

Complete Size Range · Acid‑alkali Resistance & Cost‑effective · Perfect Match for Defoaming Equipment

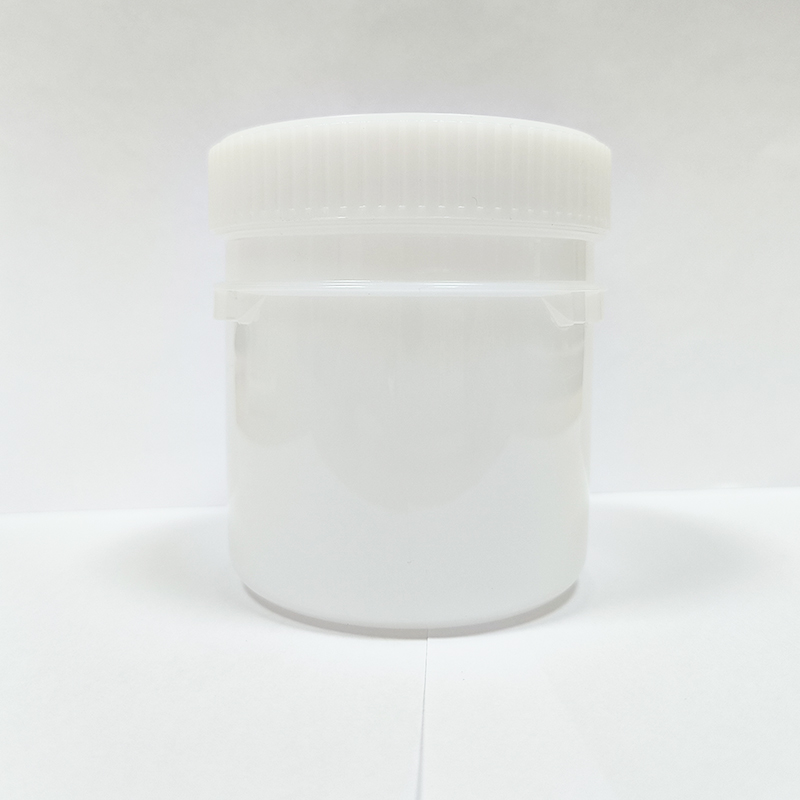

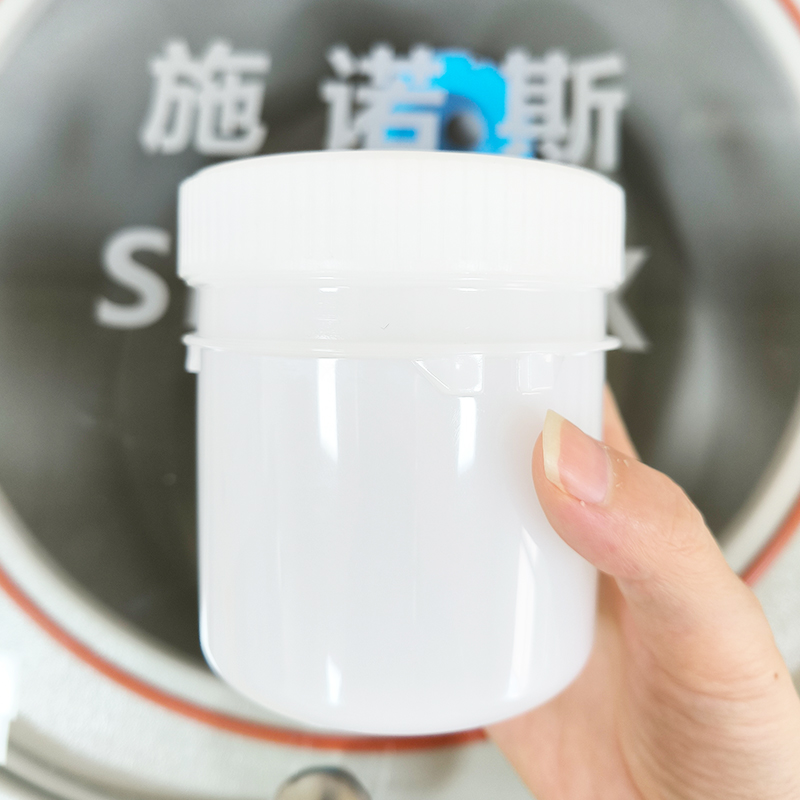

SIENOX matching PP mixing jars are made of high‑quality domestic PP material. Multiple sizes are available:12mL/…125ml/150ml/300ml/1L/2L/5L/10L/15L up to 50L. Temperature resistance:‑24°C~60°C, acid and alkali resistant, white / black / transparent optional. Compatible with the full series of SIENOX vacuum defoaming mixers.

✓ 0‑50L  ✓ PP Material ✓ Multi‑color Options




在线留言 免费寄样测试 工程师热线:189-2512-9293

Why PP Mixing Jars Are Required

PP Polypropylene mixing jars: acid‑alkali resistant, low‑temperature resistant and cost‑effective

Acid‑alkali Resistance for Chemical Materials

Materials such as electronic pastes, adhesives and chemical reagents often contain acid‑alkali components. Ordinary plastic containers tend to age and turn brittle upon long‑term contact. Featuring favorable acid‑alkali resistance, PP material is compatible with most water‑based, weak‑acid and weak‑alkali materials to avoid cross‑contamination between containers and materials.

Low‑temperature Resistance for Cold‑storage Processes

Some materials need storage or processing under low‑temperature conditions. PP material withstands temperatures down to ‑24°C, ideal for refrigerated materials and low‑temp lab environments. Thick‑walled and shatter‑resistant, it resists cracking under low temperatures for safe handling.

Full‑size Coverage for All Scenarios

Complete size range from 12 mL lab small‑batch defoaming to 50 L industrial mass production. One defoaming mixer works with PP jars of varied capacities to flexibly meet different throughput requirements without extra containers for different‑scale processes.

✨ Dilemmas of conventional containers: Beakers & ordinary plastic bottles suffer from mismatched calibers, poor vacuum sealing, acid‑alkali corrosion, thin‑wall cracking, material leakage and equipment contamination.

Why Choose SIENOX PP Mixing Jars

Solve pain‑points in container selection for ambient‑temp mixing‑defoaming

Full Size Coverage from 12mL to 50L

Multiple sizes available including 12mL, 150mL, 300mL, 1L, 2L, 5L, 10L, 15L and 50L, covering full scenarios from laboratory small-batch testing to industrial mass production. Small sizes suit formula development and sample testing, medium sizes for pilot production, and large sizes for continuous industrial production. White and black color options support laboratory classification and management.

Premium Virgin PP Material & Reliable Craftsmanship

Made of high-quality virgin high-density PP plastic without recycled materials. The pure material releases no impurities and avoids material contamination. The jar features uniform wall thickness and smooth surface. Thick and drop-resistant, it stably holds powder, solid and paste materials without leakage. Precisely calibrated caliber and lid size ensure perfect fitting with equipment ports, achieving zero air leakage and pressure relief during vacuum defoaming.

High Equipment Compatibility

Custom-designed for SIENOX defoaming mixers with perfectly matched interface sizes for easy installation and disassembly. Compatible with various capacity jars for flexible batch processing. Fully adaptable to the full series of SIENOX equipment, including stirring defoamers, vacuum stirring defoamers, temperature-controlled defoamers and centrifugal defoamers.

✨ SIENOX PP mixing jars feature acid‑alkali resistance, low‑temperature tolerance, full‑size coverage and high cost‑performance. For temperatures above 60°C, choose imported HDPE jars. For organic‑solvent‑containing materials, select stainless‑steel jars.

Matching Instructions for Mixing Jars and Equipment

SIENOX PP mixing jars are custom‑designed for SIENOX defoaming mixers

SIENOX PP mixing jars are custom‑designed for SIENOX defoaming mixers with precisely‑matched interfaces. Place the jar into the mixing chamber and secure it with fixtures or adapters. During operation, the jar revolves and rotates inside the equipment, and materials are mixed and defoamed within the sealed jar.


Installation Steps:

Load materials into the jar and fasten the sealing lid

Put the jar into mixing chamber and fix in place

Set mixing‑defoaming parameters and start the device

Take out the jar upon completion for subsequent processes

Working Principle of Vacuum Defoaming Mixer.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

SpecificationCapacityApplication
0‑125mL0‑125mLSmall‑volume lab mixing‑defoaming
150mL150mLSmall‑volume lab use
300mL300mLStandard lab capacity
1L1LPilot small‑batch production
2L2LPilot small‑batch production
5L5LMedium‑batch production
10L10LMedium‑large batch production
15L15LLarge‑batch production
20L20LLarge‑batch production
......Larger sizes available
50L50L Industrial‑grade mass production

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 真空脱泡搅拌机是什么?用于哪些行业?

    真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。

  • 广州施诺斯主要生产哪些设备?

    主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。

  • 源头厂家采购脱泡设备有什么优势?

    源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。

  • 搅拌脱泡机的工作原理?

    施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。

  • 为什么选择施诺斯?

    施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。

Technical Specification List

Full‑line parameter specifications to assist your accurate process‑model selection

SpecificationCapacityApplication
0‑125mL0‑125mLSmall‑volume lab mixing‑defoaming
150mL150mLSmall‑volume lab use
300mL300mLStandard lab capacity
1L1LPilot small‑batch production
2L2LPilot small‑batch production
5L5LMedium‑batch production
10L10LMedium‑large batch production
15L15LLarge‑batch production
20L20LLarge‑batch production
......Larger sizes available
50L50L Industrial‑grade mass production

Applicable Material Types

Covering stirring and debubbling applications of typical materials across six major industries

University‑level Scientific Research.jpg

Powder

Metal powder / ceramic powder / medicinal powder


Solid Particles


Ink & Coatings.jpg

Paste

Creams

LED Raw Materials 02.jpg

Adhesive

Various glues


Slurry

Battery slurry, ceramic slurry

Testing Institution.jpg

Acid‑alkali Materials


Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

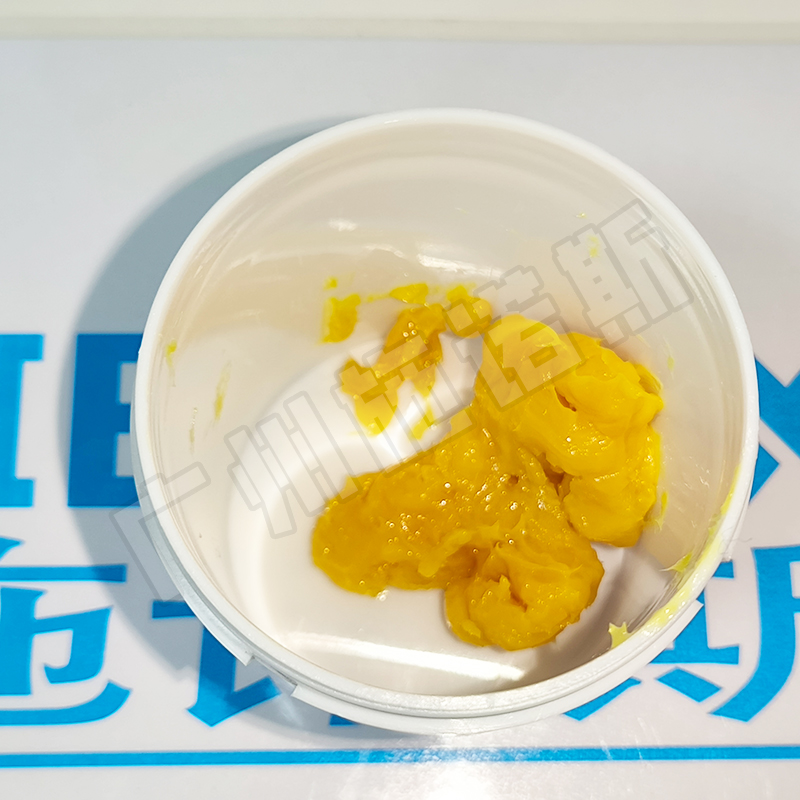

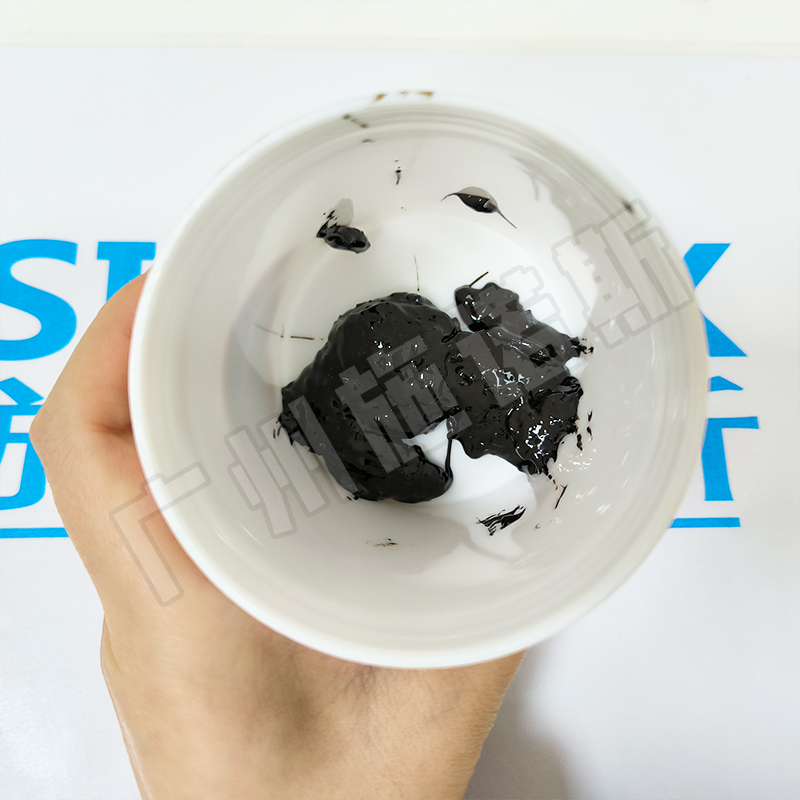

Lab Sample Actual Test Results

AB Glue Mixing & Defoaming.jpg

AB Glue

Glue‑powder Mixing & Defoaming.jpg

Glue & Powder

Glass Powder Mixing & Defoaming.jpg

Glass Powder

Electronic Adhesive‑powder Mixing & Defoaming.jpg

Electronic Adhesive & Powder

Black Epoxy Resin Mixing & Defoaming.jpg

Epoxy Resin

Battery Slurry‑powder Mixing & Defoaming 02.jpg

Battery Slurry & Powder

Precautions for Use

PrecautionsDescription
Organic Solvent RestrictionPP is not resistant to organic solvents. Do not use for materials containing organic solvents
Temperature LimitDo not operate above 60°C to prevent jar deformation
Seal InspectionCheck sealing lid integrity before use to guarantee sealing performance
Cleaning & MaintenanceClean the jar promptly after use and keep it clean
Specification MatchingApplicable jar sizes vary by equipment model. Please consult before selection

* Internal lab test data. Actual improvement varies with material formulas. Contact sales for real‑world customer cases.
