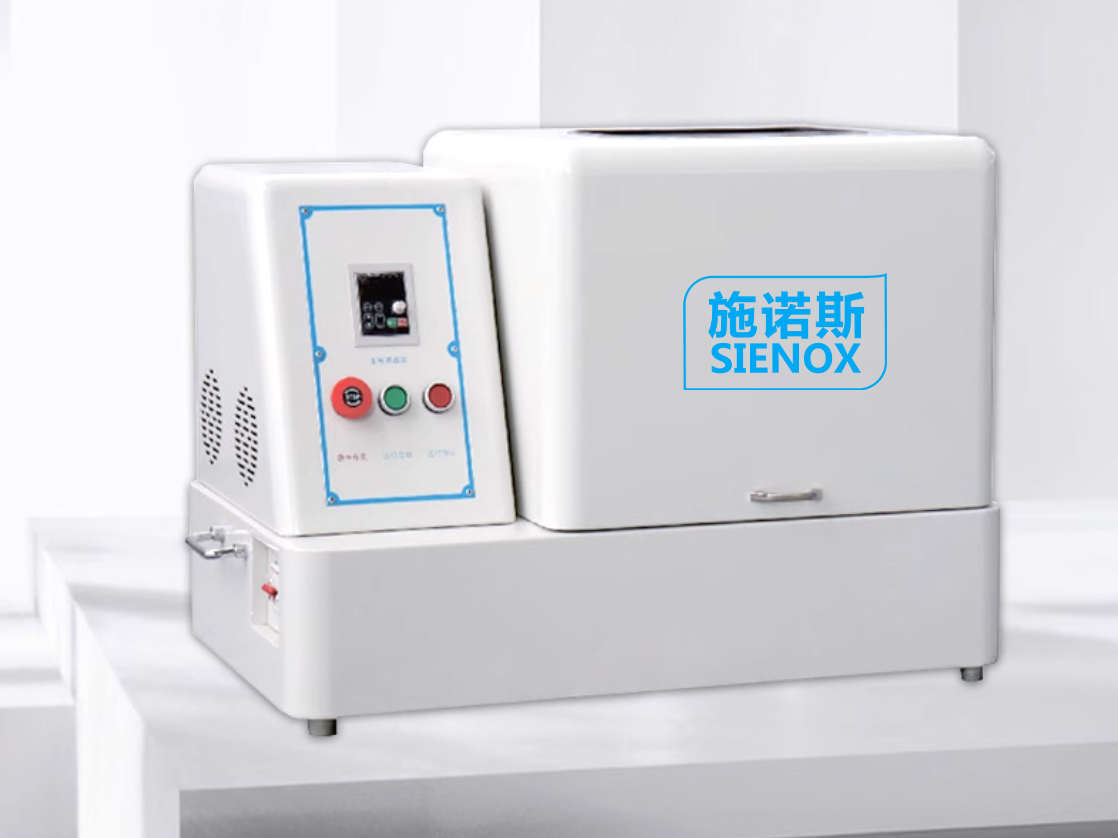

Laboratory Planetary Ball Mill SIE-BM80


Heatable & Coolable Rollers for Temperature-controlled Grinding · 80mm rollers for small-batch multi-grade production · Standard circulating cooling water

Roller heating & cooling control + 3-18μm fineness + circulating cooling water for stable quality

SIENOX SIE-SG80 precision three-roll mill. 80mm×200mm rollers support heating and cooling, grinding fineness reaches 3-18μm after 3 passes. Equipped with standard circulating cooling water system. Designed for small-batch & multi-variety production. Temperature control preserves quality of heat-sensitive materials, suitable for coatings, pharmaceuticals, food and more industries.

✓ CE certification  ✓ FC certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom voltage available (110V/220V)

在线留言 免费寄样测试 工程师热线:189-2512-9293

Why Precision Grinding Is Required

Coarse particles & poor dispersion impair final product quality.

Printing Ink Industry

Coarse pigment particles in lab ink formulas cause uneven hue and poor color development, undermining formula evaluation. Three-roll mill disperses pigments to micron level for uniform hue and reliable repeatable test data.

Cosmetics Industry

Gritty texture in lipstick and foundation hurts smoothness and gloss. Three-roll milling delivers creamy paste, boosts product quality, and verifies end performance in small trial batches.

Electronic Slurry Industry

Agglomerated silver powder in conductive paste causes broken screen printing lines and unstable resistance. Three-roll mill evenly disperses silver powder for consistent printing and accurate lab formula tests.

✨ Traditional grinding challenges: High-speed dispersers only disperse without real milling, failing fineness targets. Sand mills introduce impurities from worn media and contaminate valuable samples. Manual grinding is slow, inconsistent, and operator-dependent.

Why Choose SIE-SG80

Solve core pain points of small-batch grinding

Micron-level Precision Grinding

Precisely ground rollers with high parallelism and uniform gap across full length. Matte roller surface ensures good slurry adhesion. Roll ends are cold-pressed with heavy interference fit for solid connection. Repeated grinding achieves fine particle size to meet R&D fineness requirements.

Precise Speed Control by DC Governor

DC motor with adjustable speed, freely set according to material viscosity & target fineness. High speed for low-viscosity materials to boost efficiency; low speed for high-viscosity materials for uniform dispersion. Triangular belt and gear train drive rollers reliably for controllable grinding.

Compact Benchtop Design

Ideal for lab benchtop use. Small footprint, easy to move, fits limited lab space, no foundation required, ready after power-on. Removable feeding copper blade for easy cleaning and quick material changeover.


✨ SG80 is ideal for small batches with temp grinding, frequent changeover or heat-sensitive materials.

Working Principle

Based on planetary motion principle

What other devices adopt planetary motion principle besides SG80?

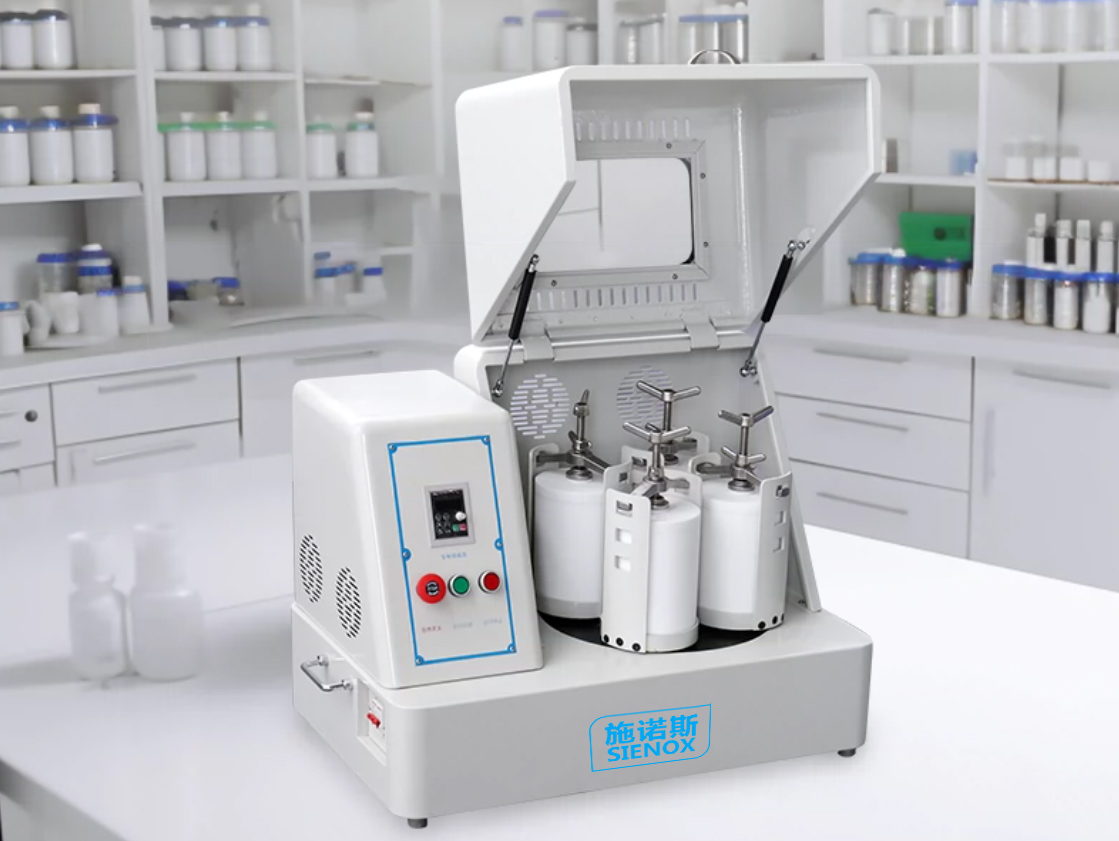

Planetary ball mill operates on planetary motion principle. Grinding jars are mounted on the main sun disk. While the disk revolves around the central axis, grinding jars rotate rapidly on their own axes in the opposite direction.



Under this compound motion, grinding balls inside jars are subjected to alternating forces:

Impact Force: Grinding balls are flung at high speed to crush coarse particles.

Friction and Shear Force: High-frequency friction and shear between balls and jar walls realize fine grinding and dispersion.


When centrifugal acceleration from revolution exceeds the critical value, balls are pressed against jar walls and rotate together with jars without effective grinding. Proper speed setting and transmission ratio are key to grinding efficiency. SIENOX models adopt optimized transmission ratios to achieve high centrifugal acceleration within valid speed ranges for efficient grinding.


Typical Grinding Parameters:

Sample Loading: ≤ 2/3 of jar volume (including grinding media and samples)

Media Filling Ratio: 1/3 to 1/2 of jar volume

Typical Grinding Time: 5–60 min (depends on material hardness and target fineness)

Final Fineness: down to <0.1μm (varies with material, parameters and media selection)

Three Roll Mill Working Principle.png

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE-BM80-1S (Single Jar)SIE-BM80-2S (Dual Jars)
Max. Feed Size≤5mm≤5mm
Sun Disk Speed100–900 rpm continuously adjustable100–800 rpm continuously adjustable
Effective Sun Disk Diameter290mm290mm
Final Fineness<0.1μm<0.1μm
Grinding Media Size0.1–15mm0.1–15mm
Grinding ModeDry / Wet GrindingDry / Wet Grinding
Safety ProtectionAuto-stop on lid openingAuto-stop on lid opening
Power SupplyAC 220V / 50Hz, 0.55KWAC 220V / 50Hz, 0.75KW
Overall Dimension(W×D×H)520×360×440mm520×360×440mm
Net WeightApprox. 48kgApprox. 56kg
CertificationsCE, FC, ISO9001, RoHS ComplianceCE, FC, ISO9001, RoHS Compliance

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

Technical Specification List

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE-BM80SIE-BM500SIE-BM1000
Max. Jar Volume80mL500mL1000mL
Max. Feed Size≤5mm≤10mm≤10mm
Sun Disk Speed100–900 rpm continuously adjustable100–700 rpm continuously adjustable100–320 rpm continuously adjustable
Effective Sun Disk Diameter290mm290mm430mm
Final Fineness<0.1μm<0.1μm<0.1μm
Grinding Media Size0.1–15mm0.5–20mm0.5–25mm
Grinding ModeDry / Wet GrindingDry / Wet GrindingDry / Wet Grinding
Safety ProtectionAuto-stop on lid openingAuto-stop on lid openingAuto-stop on lid opening
Power SupplyAC 220V / 50Hz, 0.55-0.75KWAC 220V / 50Hz, 0.75–1.1KWAC 220V / 50Hz, 1.5KW
Overall Dimension(W×D×H)520×360×440mm520×360×440mm520×360×440mm
Net WeightApprox. 48-56kgApprox. 85-162kgApprox. 155kg
CertificationsCE, FC, ISO9001, RoHS ComplianceCE, FC, ISO9001, RoHS ComplianceCE, FC, ISO9001, RoHS Compliance

***The above are typical models. SIENOX provides customized solutions upon request. For selection consultation: 189-2512-9293

Multi‑Industry Solutions

Covers mixing & defoaming applications for typical materials across six major industries.


Adhesive R&D

Epoxy structural adhesive, sealant, hot melt adhesive, pressure-sensitive adhesive, modified adhesive

Precision Optics.jpg

Precision Electronic Assembly

Underfill, conductive adhesive, die attach adhesive, dispensing adhesive, chip bonding adhesive

Electronic Materials.jpg

Biosensors

Encapsulation adhesive, reagent immobilization material, microfluidic bonding glue, biocompatible adhesive, sensor sealant

Thermal Silicone.jpg

Microelectronic Packaging

Packaging epoxy, molding compound, lead bonding adhesive, substrate bonding adhesive, passivation layer material

Medical Devices02.jpg

Functional Coatings

Hydrophobic coating, conductive coating, insulating coating, anti-corrosion coating, wear-resistant coating

Photosensitive Materials.jpg

Electronic Slurries

Silver paste, copper paste, carbon paste, resistance paste, dielectric paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Measured Defoaming‑Process Performance

Measured Processing Results for Six Typical Materials

Lubricant Mixing & Defoaming.jpg

Paste Materials

Photoresist Mixing & Defoaming.jpg

Adhesive with Powder

Polymer Materials.jpg

Polymer Materials

Gel Defoaming 02.jpg

Pharmaceutical Gels

Silver Paste Mixing & Defoaming.jpg

Silver Paste Materials

Battery Slurry & Adhesive Mixing Defoaming.jpg

Battery Slurries



Optional Accessories

Accessory NameDescription
Grinding Jars of Various MaterialsStainless steel, agate, zirconia, tungsten carbide, alumina ceramic, silicon nitride, nylon, PTFE. Selected according to machine model.
Grinding Media (Balls)Matching balls in corresponding materials, size Φ0.1–30mm. Single size or mixed grading packages available.
Vacuum Grinding JarsStainless steel / agate / zirconia, fitted with vacuum sealing valve. Support vacuum pumping and inert gas shielding milling.

* Internal lab test data. Actual improvement varies with material formula. Contact sales for real customer cases.
