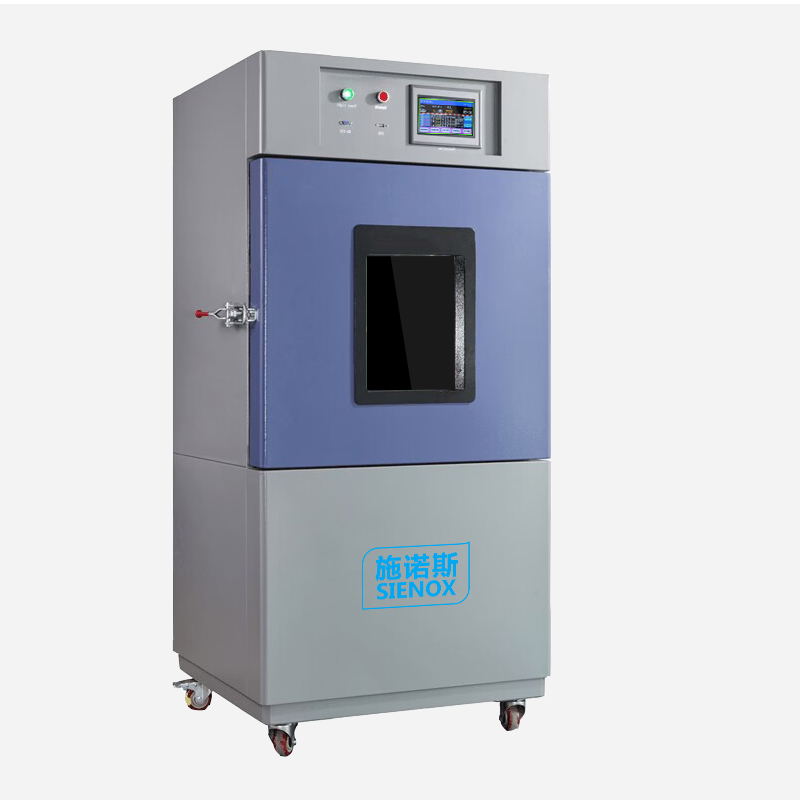

Vacuum Defoamer SIE‑ZK600
Large‑Chamber Dual‑Layer Parallel · Uninterrupted On‑Line Operation
216L large‑chamber dual‑layer parallel defoaming + Independent over‑temperature protection with automatic power‑off
SIENOX SIE‑ZK600 Vacuum Defoamer features a 216L large‑volume chamber of 600×600×600 mm with dual‑layer parallel design equipped with two mesh plates. Independent over‑temperature protector triggers power‑off and alarm upon overheating. 3.0 mm reinforced 304 stainless‑steel inner tank. Multi‑stage PID temperature control ranges from ambient to 300℃ with ±0.5℃ accuracy. Non‑contact vacuum defoaming keeps original chemical properties of materials unchanged.
✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles degrade end‑product quality directly
Transformer Potting IndustryBubbles inside transformer potting compound trigger partial discharge, insulation breakdown, and even transformer failures or explosions in severe cases. Vacuum defoaming enables full bubble escape under negative pressure, while heating reduces compound viscosity for faster defoaming. The 216L large‑chamber with dual‑layer mesh plates doubles throughput for mass‑batch transformer potting processing. | LED Lighting IndustryBubbles within LED module and driver power potting compound reduce light transmittance and heat dissipation. High‑volume production lines demand non‑stop operation without idle waiting. The 216L dual‑layer parallel structure doubles defoaming capacity. Independent over‑temperature protector ensures unattended‑run safety for continuous mass‑production LED potting processing. | Silicone Rubber IndustryBubbles in silicone sealing parts and thermal‑conductive silicone cause seal failure and uneven heat dissipation. Continuous defoaming is required for batch consistency during mass‑production. Automatic constant‑pressure vacuum cycles maintain stable chamber pressure. The 3.0 mm thick 304 stainless‑steel inner tank resists deformation under long‑term vacuum, suitable for extended‑run silicone rubber defoaming on production lines. |
✨ Pain points of conventional solutions: Mass‑production lines require continuous operation. Ordinary equipment delivers poor pressure retention, frequent vacuum‑pump start‑stop creates loud noise and shortens pump service life. Large‑chamber units suffer uneven temperature, resulting in inconsistent defoaming results across products. Without independent over‑temperature protection, temperature runaway may damage products and equipment, bringing severe safety risks for production lines.
Why Choose SIE‑ZK600
Solve throughput & safety pain points for mass‑production lines
Large‑Chamber Dual‑Layer Parallel Design600×600×600 mm chamber with 216L volume, internally divided into two layers fitted with two mesh plates. Dual‑layer simultaneous defoaming doubles throughput. During continuous line operation, materials can be loaded/unloaded on the lower layer while the upper layer runs defoaming to cut waiting time. Capacity rises nearly double from 125L to 216L, enabling seamless transition from medium‑batch to mass‑batch production. | Independent Over‑Temperature ProtectionEquipped with separate over‑temperature protector independent from the main temperature‑control system. Once temperature runaway exceeds the preset threshold, heating power is cut off automatically with alarm alerts to safeguard products and equipment. It ensures safety for unattended production without interfering with normal operation of the main temperature‑control system. | Robust Structure for Long Service LifeReinforced inner chamber resists deformation and denting under long‑term vacuum. 1.2 mm‑thick Q235 cold‑rolled steel shell with powder‑coated surface for corrosion‑proof and scratch‑resistant performance. High‑temperature‑resistant fiberglass rock‑wool insulation delivers excellent thermal insulation so the outer shell stays cool. Brake‑equipped casters at machine bottom facilitate movement and positioning. |
✨ If your production line requires continuous high‑volume defoaming with high demands on equipment safety and durability, ZK600’s dual‑layer parallel function and independent over‑temperature protection enable reliable line operation.
Working Principle
Bubbles expand and burst under negative pressure for gas escape to improve material compactness.
Step 1: Vacuum pumping to build negative pressure: The built-in vacuum pump reaches -100kPa within 3-5 minutes. The negative pressure environment expands bubbles inside materials. Step 2: Heating-assisted defoaming: Thermal radiation heating adjustable from room temperature to 300°C reduces material viscosity and accelerates bubble rupture and escape. Step 3: Non-contact purity preservation: Materials stay static inside the vacuum chamber with no contact from stirring paddles, keeping the chemical properties of materials unchanged. Simple three steps: Vacuum Pumping → Heating Assistance → Non-contact Purity Preservation to improve material compactness. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑ZK600 |
| Chamber Size | 600×600×600mm* Larger volume customizable |
| Effective Volume | 216L |
| Cabinet Structure | Integrated unit with built‑in vacuum pump |
| Internal Compartments | 2 layers, supplied with 2 mesh plates |
| Heating Mode | Thermal radiation heating, left / right / bottom‑side heating |
| Vacuum Range | 0.0~‑100.0KPa |
| Safety Protection | Over‑temperature protection, overload protection, earth‑ground protection |
| Power Supply | 380V/220V, 50/60Hz |
| Overall Dimension(W×D×H) | Approx.1000×980×1830mm (with casters, subject to actual product) |
| Net Weight | Approx.30 kg |
| Certifications | ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Parameter Comparison for Accurate Model Selection

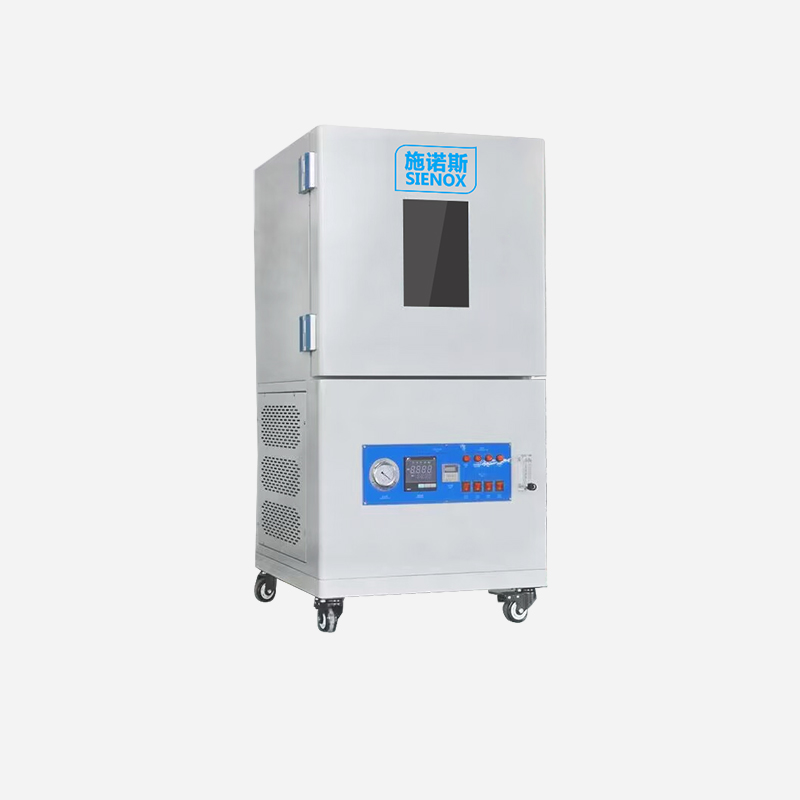

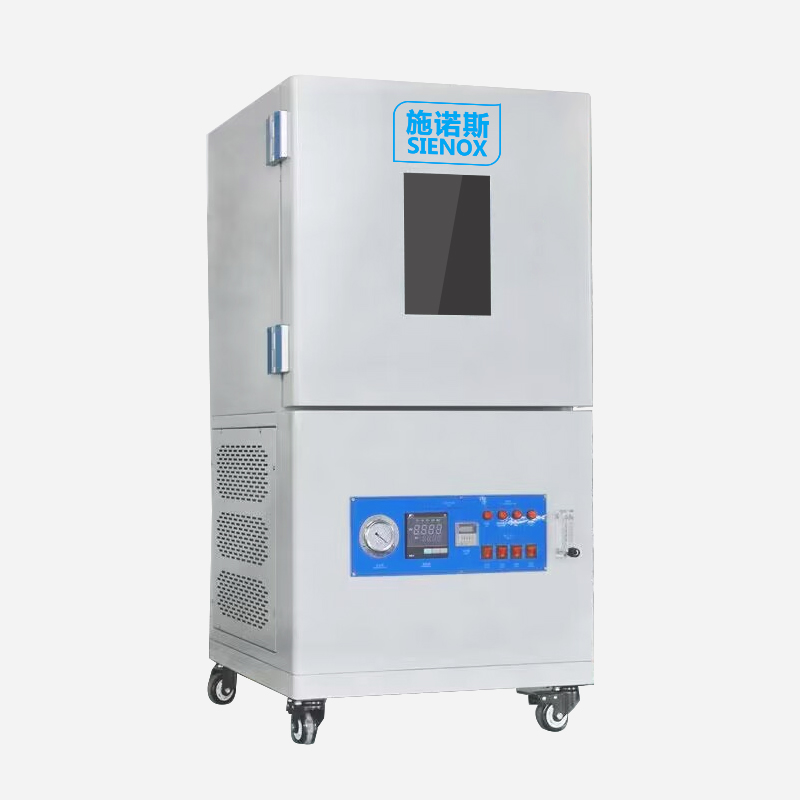

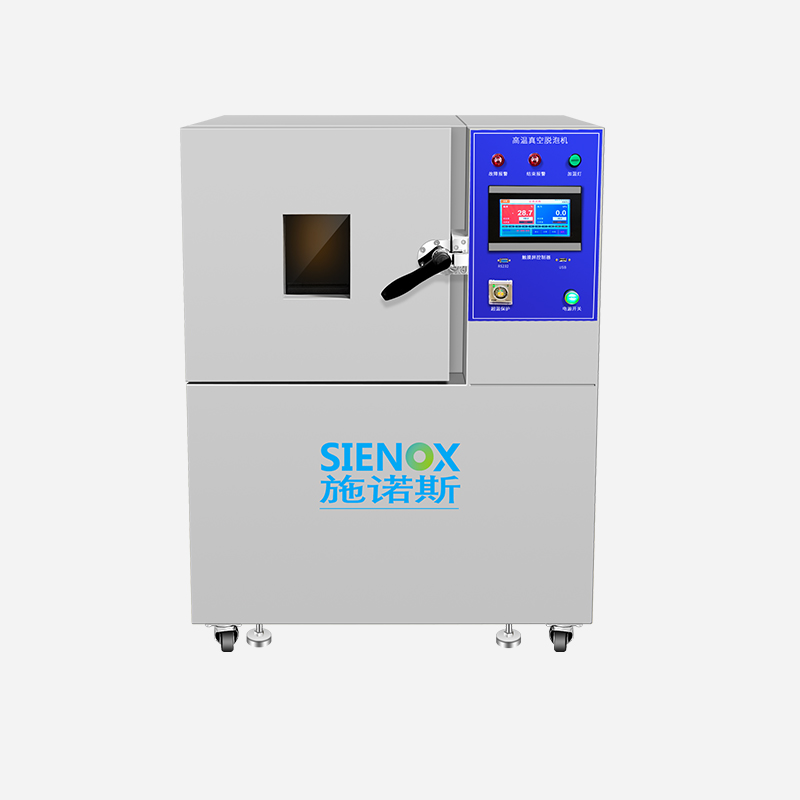

| Model | SIE‑ZK400 | SIE‑ZK500 | SIE‑ZK600 |
| Chamber Size | 400×400×450mm | 500×500×500mm | 600×600×600mm |
| Effective Volume | 72L | 125L | 216L |
| Temperature Range | Ambient+30~300℃ | Ambient+30~300℃ | Ambient+30~300℃ |
| Vacuum Degree | 0~‑100kPa | 0~‑100kPa | 0~‑100kPa |
| Safety Protection | Over‑temperature protection, overload protection, earth‑ground protection | Over‑temperature protection, overload protection, earth‑ground protection | Over‑temperature protection, overload protection, earth‑ground protection |
| Power Supply | 380V/220V, 50/60Hz | 380V/220V, 50/60Hz | 380V/220V, 50/60Hz |
| Overall Dimension(W×D×H) | 510 × 430 × 500 mm | 610 × 560 × 780 mm | 1000×980×1830mm |
| Net Weight | 95 kg | 153 kg | 153 kg |
*** Above are typical models only. SIENOX provides customized solutions per customer requirements. For model selection: 189‑2512‑9293
Multi‑Industry Solutions
Vacuum defoaming applications covering typical materials across six major industries
LED LightingLED strip potting compound, LED bead encapsulation resin |
Plastic ToysToy potting compound, coating materials |
Silicone RubberLiquid silicone, silicone rubber sealing parts |
Transformer PottingEpoxy potting compound, insulating adhesive |  Resin CraftsCraft resin, AB adhesive |
AB AdhesiveStructural AB adhesive, electronic AB adhesive |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
Silicone Rubber |
Adhesive |
Silver Paste |
Medical Gel |
UV Adhesive |
Battery Slurry |
Measured Data Comparison

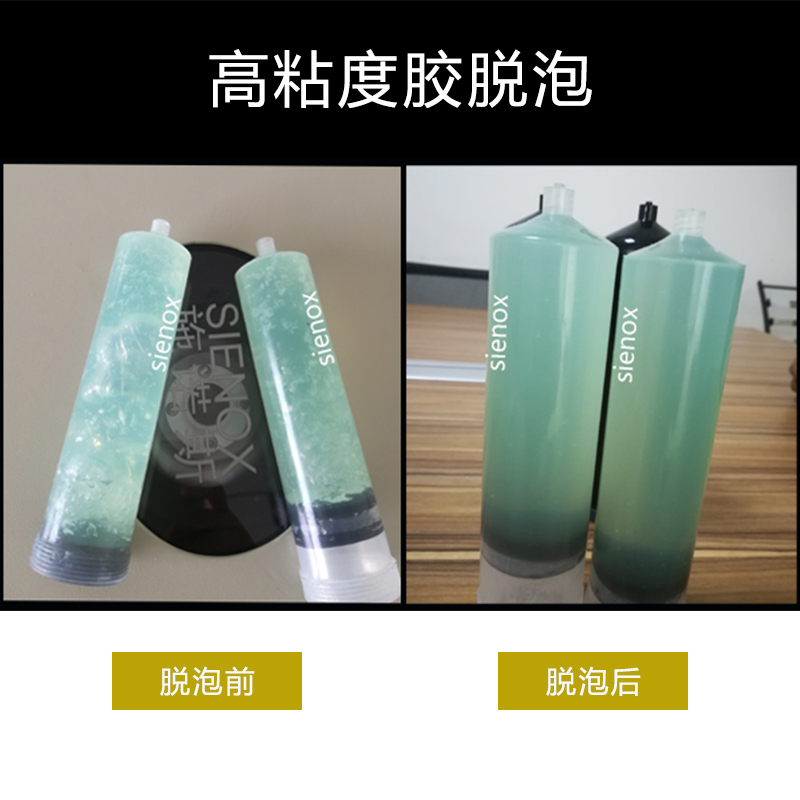

Material Defoaming Effect Comparison (Before & After)
| Material Type | Pre‑treatment Status | Post‑treatment by ZK600 |
| Transformer Potting Compound | Dense internal bubbles causing voids after curing and high partial‑discharge risk | Dense compound without voids for stable insulation performance |
| LED Module Potting Compound | Abundant bubbles lead to uneven light transmission and dark spots after curing | Clear and transparent compound with uniform light transmittance |
| Thermal‑conductive Silicone | Numerous bubbles raise thermal resistance at heat‑dissipation interface | Uniform and dense silicone with low thermal‑interface resistance |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real‑world customer cases.
