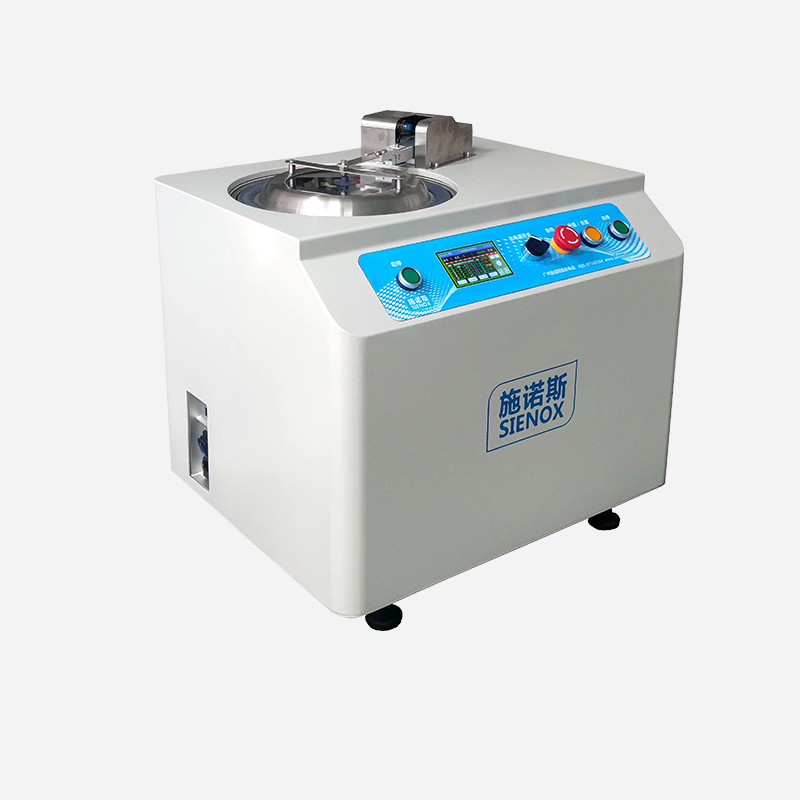

Large‑Capacity Vacuum Defoaming Mixer SIE‑MIX2000
Paddle‑Free Non‑Contact Mixing · For Deep Micro‑Bubble Treatment in Small‑Batch Pilot Tests
Customizable Capacity 0‑50L | Homogenizing & Defoaming Equipment for Medium‑to‑Large Production Lines
The SIE‑MIX2000 planetary vacuum defoaming mixer meets mixing and defoaming requirements from 0‑2000 mL. Dual‑drive mixing of revolution and rotation combined with ‑98 kPa negative vacuum environment achieves consistent density, uniform dispersion and deep degassing for multi‑material blends. It is suitable for small‑batch pilot vacuum defoaming of new‑energy lithium‑battery materials, photovoltaic conductive silver paste, medical polymer gels and other materials. Customization is available.
✓ CE Certified ✓ ISO9001 Quality System ✓ RoHS Compliant ✓ Custom Voltage Available (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual nanoscale micro‑bubbles within materials directly affect product yield and performance stability.
Polymer Composite Material IndustryMicro‑bubbles trapped inside polymer raw materials such as epoxy resin and silicone will form voids and micro‑cracks after curing, reducing the tensile strength and sealing performance of finished parts. Bubbles degrade light transmittance and surface uniformity, raise defective rates for injection‑molded / cast products and increase raw‑material waste costs. | Cosmetic Paste IndustryBubbles inside makeup and skincare pastes cause uneven spreading and patchy color appearance. Compressed bubbles during filling lead to filling‑volume deviation, which jeopardizes metering compliance. Internal voids accelerate raw‑material oxidation and shorten the shelf‑life of finished products. | Ceramic Conductive Slurry IndustryBubbles trapped in ceramic slurries result in pinholes and porosity defects on sintered bodies, causing fluctuations in conductive and insulating performance. Bubbles bring inconsistent coating thickness and scattered resistance parameters of components, making it difficult to unify parameter control for mass‑produced products. |
✨ Challenges of conventional defoaming: Ordinary planetary mixer‑defoamers rely on centrifugal force to remove bubbles, with limited performance on nanoscale micro‑bubbles trapped in high‑viscosity materials. Static defoaming is time‑consuming and incomplete. Vacuum mixing‑defoaming applies ‑98 kPa negative‑pressure vacuum during planetary agitation, lowering the pressure difference inside and outside bubbles to enable micro‑bubbles to expand and escape. It delivers deep‑layer defoaming results unachievable by conventional mixing methods.
Why Choose SIE‑MIX2000
Engineered for Vacuum Defoaming in Small‑Batch Production
Customizable Capacity Upon RequestStandard 2L dual‑station base model, capacity adjustable within 0‑30L range. Compatible with large‑volume single‑bucket materials and multi‑batch continuous mass‑production conditions. Supports large‑size mixing vessels and custom tooling fixtures, covering requirements for small‑batch pilot tests and scaled‑up production lines. Suitable for multi‑viscosity pastes and liquid raw materials. | Coordinated Revolution & RotationDual‑driven planetary structure. Revolution generates centrifugal force to spread materials, while vessel rotation creates 360° fluid shear to reduce powder agglomeration and colloid delamination. Speed range adapts to adhesives, silver pastes, ceramic materials and other substances for broader mixing coverage and less local inhomogeneity. | Intelligent Industrial ControlEquipped with large‑size touch‑screen for storing multi‑segment running recipes. Optional MES industrial data interface to fully record full‑process data including speed, vacuum level, temperature control and duration. Built‑in audio‑visual alarm, multi‑safety interlocks and overload power‑off protection for standardized continuous factory production. |
✨ When vacuum defoaming is required and production volume reaches the 2000 mL level, the SIE‑MIX2000 is the small‑batch pilot‑scale option within the planetary vacuum defoaming mixer series.
Working Principle
Adopts synergistic process combining planetary revolution, vessel rotation and closed high‑vacuum environment.
Planetary Revolution: The main plate carrying material cups rotates at high speed around the main shaft and generates centrifugal force, pushing materials to spread evenly on the container wall, breaking powder agglomerates and solving colloid stratification issues; Container Rotation: Material cups rotate in the opposite direction synchronously. Materials form 360° fluid turbulence inside the container to realize full-range homogeneous mixing. No built-in stirring paddle touches materials, lowering the risk of contamination by metal debris; Sealed Vacuum Defoaming: Negative pressure down to -98kPa is formed inside the sealed chamber, increasing the pressure difference inside and outside materials. Micro and nano tiny bubbles gradually expand, rise and discharge out of the chamber. Stirring and defoaming are finished in one single process. The material mixing uniformity and bubble removal performance are better than conventional open stirring equipment. |  |
Technical Specifications
Hard‑Core Equipment Performance Indicators & Data Alignment
| Model | SIE‑MIX2000 |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) |
| Max Speed | 100 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100 × 780 × 880 mm |
| Net Weight | 225 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑Line Standardized Parameters for Accurate Process Evaluation & Model Selection
| Model | SIE‑MIX2000 | SIE‑MIX5000 | SIE‑MIX15L |
| Mixing Capacity | 0–2000 mL (standard container) * Customizable | 0–5000 mL (standard container) * Customizable | 0–15L (standard container) * Customizable |
| Container Type | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported | Tubes / Jars / Cups; adapters for syringes and cartridges supported |
| Container Quantity | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) | 1 or 2 jars (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) | 0 – 1200 RPM (stepless adjustable) | 100 – 600 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Freely adjustable | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets | Touch‑screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 1100 × 780 × 880 mm | 1370 ×1130 × 965 mm | 1735 × 1560 × 965 mm |
| Net Weight | 225 kg | 550 kg | 830 kg |
*** Above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Customized solutions are available to meet comprehensive requirements ranging from cutting‑edge R&D to mass‑scale production.
Chemical IndustryChemical slurries, resin intermediates, catalyst slurries, reactive adhesives, functional coating liquids |
Adhesive / Sealant IndustryStructural adhesives, industrial sealants, hot‑melt adhesives, epoxy structural adhesives, polyurethane adhesives |
Ink & Coating IndustryIndustrial coatings, conductive inks, color pastes, anti‑corrosion coatings, UV‑curable coatings |
Electronics IndustryElectronic encapsulation adhesives, conductive silver adhesives, insulating adhesives, LED phosphors, semiconductor packaging materials |
Battery IndustryLithium‑ion battery cathode & anode slurries, conductive agents, electrolyte auxiliary materials, fuel‑cell catalyst slurries |
Silicone IndustrySilicone rubber compounds, silicone resins, silicone oils, thermal‑conductive silicone adhesives, silicone coatings |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual Test Results of Defoaming Process
Eliminate bubble voids and material delamination completely.
Syringe Adhesive |
Photoresist |
Biogel |
Cosmetic Serum |
Lubricant |
Ink |
Measured Data Comparison
Data‑Driven Results · Quantifiable Performance
| Material Type | State Before Treatment | After Treatment by MIX2000 |
| Epoxy Resin Slurry | Uneven mixing with dense internal bubbles. Casted parts have abundant pores after curing and low mechanical strength | Transparent resin without bubbles. Casted parts are dense and void-free with smooth surface after curing |
| Silicone Rubber Compound | Abundant bubbles, dense surface pores after vulcanization, uneven elasticity and fluctuating tensile strength | Bubbles eliminated. Smooth and dense surface after vulcanization with consistent elasticity |
| Industrial Anti-corrosion Coating | Plenty of bubbles, dense pinholes on coating film, uneven adhesion and shortened anti-corrosion service life | Dense and flat coating film, pinholes removed, uniform adhesion and extended anti-corrosion service life |
* Internal laboratory test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
Stirring & Defoaming Solution for Powders and Fluids |
AB Structural Adhesive Mixing & Defoaming Solution |
Mixing and Defoaming Solution for High‑Viscosity Colloid and Phosphor Powder Materials |
