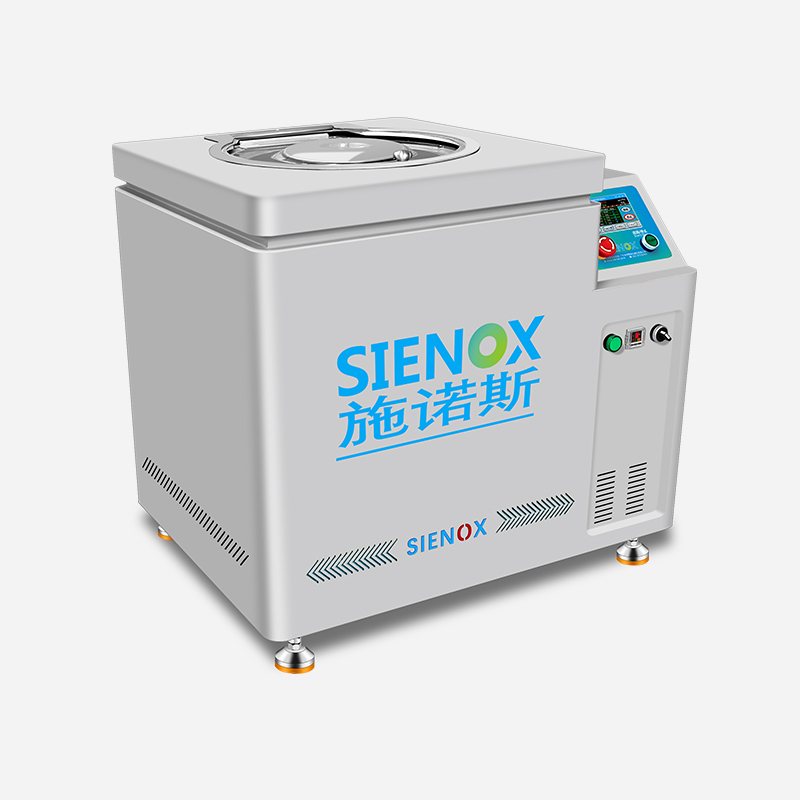

SIENOX Planetary Vacuum Mixing‑Defoaming Machine SIE‑MIX650
Vacuum Mixer‑Defoamer · Nano‑scale Bubble Removal
500mL Medium‑capacity Dual‑cup + Built‑in Maintenance‑free Vacuum — 99.9% Nano‑scale Bubble Removal
SIE‑MIX650 vacuum mixing‑defoaming machine meets 0‑500 mL mixing and defoaming requirements. Built‑in maintenance‑free vacuum unit combined with revolution‑rotation dual‑power mixing‑defoaming delivers consistent density, uniform dispersion and pure defoaming for multi‑material processing. Suitable for epoxy resin, conductive adhesive, electronic slurry, glue, gel and other materials. Customization available with one‑stop solutions provided.
✓ CE Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect finished‑product yield and performance
Electronics IndustryBubbles in potting adhesives cause cavities and gaps after electronic component encapsulation, impairing heat dissipation and insulation reliability. Bubbles in conductive silver paste lead to circuit breaks and resistance fluctuation. Bubbles in circuit‑board laminating adhesives produce bonding‑interface defects and reduce product yield. Medium‑to‑high‑viscosity adhesives tend to entrap air during conventional stirring, with slow natural bubble release and inconsistent encapsulation quality. | Medical Device IndustryBubbles in medical adhesives weaken bonding strength and biocompatibility. Bubbles in catheter & sensor potting adhesives trigger seal failure and signal interference. Bubbles in in‑vitro diagnostic reagent carriers compromise test accuracy. Medical devices demand high material purity; residual bubbles may cause batch‑to‑batch performance variation and raise quality risks. | Aerospace & Defense IndustryBubbles in composite matrix resins degrade interlaminar shear strength and fatigue resistance. Bubbles in structural adhesives induce stress concentration at bonding interfaces and harm long‑term reliability. Bubbles in radar‑absorbing coatings alter electromagnetic parameters. The aerospace sector allows minimal internal material defects; micro‑bubble residues may trigger structural‑part failure under extreme operating conditions. |
✨ Traditional defoaming challenges: Manual stirring or conventional impeller stirring actively entraps air and generates more bubbles with agitation. Static defoaming takes long time and delivers limited performance for high‑viscosity materials. Conventional vacuum defoaming only removes surface bubbles and fails to eliminate internal micro‑bubbles. The planetary mixing‑defoaming solution separates bubbles while mixing via centrifugal force, enhanced by negative‑pressure vacuum for deep defoaming to realize one‑step mixing and bubble removal.
Why Choose MIX650
Three Core Features Cover Full‑process Requirements for Medium‑capacity Vacuum Defoaming
Built‑in Maintenance‑free Vacuum for Clean DefoamingEquipped with built‑in vacuum unit, MIX650 requires no regular pump‑oil replacement for maintenance‑free operation with zero environmental pollution, ideal for clean‑room application. Vacuum level adjustable from ‑98 kPa to 0 kPa for flexible parameter setting according to material viscosity and bubble characteristics. The built‑in design eliminates external vacuum pump piping and extra space occupation with high integration. Vacuum defoaming starts right after power‑on to shorten production‑line changeover time. | 500 mL Medium‑capacity with Wide‑range Speed Regulation500 mL dual‑cup configuration fits pilot R&D and continuous production sampling. Dual‑cup simultaneous operation improves batch efficiency. 0‑2000 rpm wide‑range speed covers low‑/medium‑/high‑viscosity materials. Low speed for gentle mixing & defoaming of high‑viscosity adhesives; high speed for fast dispersion of low‑viscosity coating liquids. Synchronized revolution‑rotation dual power completes mixing and defoaming within approx. 1 minute. | Flexible Multi‑segment Program Process EditingMicrocomputer control system stores 100 sets of programs. Each program supports multi‑segment independent time & speed setting for multi‑stage process configuration. User permission management & fault indication support multi‑operator shared usage. Program‑driven operation reduces manual adjustment errors and guarantees consistent batch‑to‑batch performance. |
✨ MIX650 integrates three core capabilities: built‑in maintenance‑free vacuum, 500 mL medium‑capacity dual‑cup with wide‑range speed regulation, and flexible multi‑segment program editing. It is suitable for pilot‑scale R&D and production sampling of materials for electronic encapsulation, medical device bonding, aerospace composite materials and more.
Working Principle
Synchronized revolution‑rotation dual‑power operation realizes one‑step mixing and defoaming.
Step 1: Centrifugal Force Generated by Revolution High‑speed rotating revolution turntable generates centrifugal force for materials inside containers to drive full‑range convection and achieve macro‑mixing. Meanwhile, centrifugal force pushes low‑density bubbles toward the rotating axis for aggregation and escape. Stable revolution speed ensures consistent mixing performance for each batch. Step 2: Shear Force Provided by Rotation Containers spin around their own axis to generate directional shear force for breaking agglomerated particles and realizing micro‑dispersion. Precisely calculated fixed revolution‑rotation speed ratio ensures high‑efficiency full‑range mixing. Shear force thins bubble membranes and accelerates bubble rupture. No built‑in impeller contacts materials, lowering risk of metal‑chip contamination and preserving material chemical properties. Step 3: Deep Defoaming Under Vacuum Negative Pressure The built‑in vacuum unit draws gas to form negative‑pressure environment, reducing pressure difference inside and outside bubbles so deep‑seated micro‑bubbles expand and escape. Adjustable vacuum from ‑98 kPa to 0 kPa adapts to defoaming requirements of various‑viscosity materials. Built‑in vacuum unit runs maintenance‑free with no regular pump‑oil replacement and zero environmental pollution. Synchronized revolution‑rotation combined with vacuum negative pressure completes the full‑flow "Mixing → Dispersion → Vacuum Defoaming" inside sealed containers with built‑in maintenance‑free vacuum. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑MIX650 |
| Mixing Capacity | 0–500 mL (standard container) * Larger volume customizable |
| Container Type | Test tube / Can / Cup; adapters for syringe & cartridge available |
| Quantity of Containers | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US‑JP standard customizable) |
| Overall Dimension(W×D×H) | 580 × 560 × 760 mm |
| Net Weight | 145 kg |
| Certifications | CE, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑MIX60 | SIE‑MIX650 | SIE‑MIX90 |
| Mixing Capacity | 0–300 mL (standard container) * Customizable | 0–500 mL (standard container) * Customizable | 0–1000 mL (standard container) * Customizable |
| Container Type | Test tube / Can / Cup; adapters for syringe & cartridge available | Test tube / Can / Cup; adapters for syringe & cartridge available | Test tube / Can / Cup; adapters for syringe & cartridge available |
| Quantity of Containers | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) | 1 or 2 cans (user‑selectable) |
| Max Speed | 0 – 3000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) | 0 – 2000 RPM (stepless adjustable) |
| Revolution / Rotation Ratio | Fixed planetary ratio | Fixed planetary ratio | Fixed planetary ratio |
| Vacuum Degree | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa | Standard: –98 kPa / Optional: –100 kPa |
| Control System | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets | Touch screen, stores up to 100 recipe sets |
| Power Supply | 220V, 50/60Hz (110V US‑JP standard customizable) | 220V, 50/60Hz (110V US‑JP standard customizable) | 220V, 50/60Hz (110V US‑JP standard customizable) |
| Overall Dimension(W×D×H) | 510 × 430 × 500 mm | 580 × 560 × 760 mm | 610 × 560 × 780 mm |
| Net Weight | 95 kg | 145kg | 153 kg |
*** The above are typical models only. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Provide customized solutions to meet comprehensive demands from cutting‑edge R&D to large‑scale mass production
Electronics IndustryEpoxy Potting Adhesive, Conductive Silver Adhesive, Electronic Slurry, UV Adhesive, Thermal‑conductive Gel |
Aerospace & Defense IndustryComposite Matrix Resin, Structural Adhesive, Radar‑absorbing Coating, Functional Coating Liquid |
Medical Device IndustryMedical Adhesive, Sensor Potting Adhesive, Catheter Coating Liquid, Diagnostic Reagent Carrier |
Chemical IndustryResin Casting Compound, Resin Solution, Catalyst Slurry, Reactive Adhesive |
Adhesive & Sealant IndustryStructural Adhesive, Sealant, Conductive Adhesive, High‑temperature Adhesive |
3D Printing IndustryPhotosensitive Resin, Functional Ink, Ceramic Slurry, Composite Prepreg |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Measured Defoaming‑Process Performance
Thoroughly eliminate material bubbles, voids and stratification
UV Adhesive |
Epoxy Resin |
Polymer Materials |
Pharmaceutical Gel |
Silver Paste Material |
Battery Slurry |
Measured Data Comparison
Quantifiable Effects Validated by Test Data
| Material Type | Status Before Treatment | After MIX650 Treatment |
| Epoxy Potting Adhesive | Dense internal bubbles, ~5% encapsulation void rate, unstable insulation performance | Bubbles removed, encapsulation void rate <0.5%, stable insulation property |
| Lithium‑ion Battery Cathode Slurry | Heavy internal bubbles, ~6% coating pinhole rate, large thickness deviation | Bubbles removed, coating pinhole rate <1%, uniform thickness |
| Thermal‑conductive Grease | Numerous bubbles, agglomerated thermal‑conductive powder, thermal conductivity deviation ±15% | Uniform powder dispersion, bubbles removed, thermal conductivity deviation ±3% |
* Internal lab test data. Actual improvement varies with material formula. Contact sales for real customer cases.
