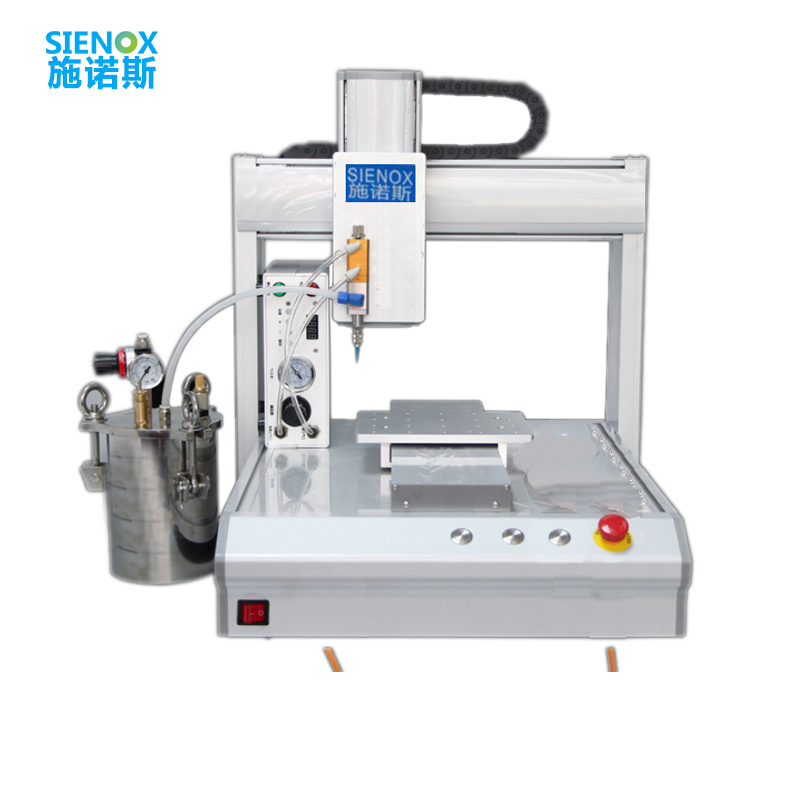

Fully automatic dispensing machine and precision dispensing machine equipment


Sienox specializes in the research and development, as well as the production of mixers, deaeration machines, filling machines, and dispensing equipment. Our machines are easy to operate, deliver excellent results, and are of high quality, as we strive for sustainable development!


Key Features of Fully Automatic Dispensing Machine:

1. Simple operation, can be programmed on-site using a teach pendant or programmed on a computer using CAD, CORELDRAW, and other application software and then downloaded to the machine.

2. High precision, uniform glue spraying surface without any issues of excess or dead glue.

3. Precise positioning and accurate glue control, without trailing, leaking, or dripping glue.

4. Four-axis linkage allows dispensing, coating, and spraying on three-dimensional, inclined, and curved surfaces in addition to front-to-back and left-to-right movements.

5. Capable of rapid dotting, line drawing, circle drawing, and spraying various irregular shapes on product surfaces, outer walls, vertical surfaces, and gaps.

6. Transmission mode: synchronous belt + guide rail control.


SIENOX Glue Dispensing Machine Product Selection Table

model

SIE-301

SIE-302

SIE-303

scope of work(mm)

400*400*100

600*600*100

1000*1000*200

control model

Controller/Computer

Controller/Computer

Controller/Computer

Multi head mode

single-head

Single head/Multiple head

Single head/Multiple head

Working mode

Glue dispensing/spraying/coating

Glue dispensing/spraying/coating

Glue dispensing/spraying/coating

Delay waiting for glue

have

have

have

Close the glue in advance

have

have

have

Maximum Load(kg)

10

20

30

movement speed(mm/s)

0.1-500

0.1-500

0.1-500

repeatability(mm)


+/-0.02

+/-0.02

+/-0.02

size(mm)

L500*W600*H5000

L700*W800*H500

L1300*W1100*H1600

***The above are only typical models, and we can provide personalized solutions according to customer needs.


【Applicable Liquids】

Various solvents, adhesives, paints, chemical materials, solid adhesives, including silicone, EMI conductive adhesive, UV adhesive, AB adhesive, quick-drying adhesive, epoxy adhesive, sealant, hot melt adhesive, foam adhesive, lubricant, silver adhesive, red adhesive, solder paste, thermal paste, anti-solder paste, transparent paint, screw fixative, woodworking adhesive, anaerobic adhesive, acrylic adhesive, anti-wear adhesive, crystal adhesive, potting adhesive, horn adhesive, instant adhesive, rubber paint, enamel paint, glossy paint, ink, pigment, etc.


Sienox offers comprehensive solutions tailored to your needs!


在线留言 免费寄样测试 工程师热线:189-2512-9293

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 脱泡机的作用是什么?

    脱泡机是一种用于去除液体中的气泡的设备。它的作用在于帮助生产过程中的液体混合、反应、涂布、印刷、灌注等工艺环节,避免气泡的产生和对最终产品的影响。在许多工业和实验室环境中,去除气泡是非常必要的,因为气泡可能会对产品质量产生负面影响,如影响表面张力和稳定性等问题。脱泡机通常采用各种不同的技术,如振动、超声波、离心等,以实现有效的气泡去除。它的应用领域广泛,包括但不限于半导体、太阳能、光学、生物技术、材料科学等。

  • 售后服务怎么样?

    公司拥有专业的售后服务人员,24小时专人服务,一对一提供技术支持,解决您的后顾之忧。

  • 为什么要选择施诺斯?

    选择施诺斯的原因有很多,以下是一些主要的原因:

     1. 专业性:我们的团队由一群专业的人士组成,他们在各自的领域拥有丰富的经验和知识。我们不仅了解行业趋势和最佳实践,而且还能提供切实可行的解决方案。

     2. 服务质量:我们注重客户的需求和满意度,始终致力于提供高质量的服务。我们不仅快速响应客户需求,而且还能根据客户的要求进行定制化服务。

    3. 可靠性:我们以诚信和专业精神为宗旨,始终遵守承诺和协议。我们的工作方法和交付成果均符合行业标准和最佳实践,使得我们的客户能够信任我们。

    4. 创新性:我们不断探索新的方法和工具,以提供更好的服务并满足客户的需求。我们鼓励创新和实验,并愿意接受挑战和改变。

    5. 成本效益:我们提供高性价比的服务,不仅能够帮助客户节省成本,而且还能提高效率和生产力。我们始终以客户的利益为出发点,为客户提供最优的解决方案。

     6. 团队合作:我们相信团队的力量和合作的价值,我们的团队成员之间互相支持、协作和尊重。我们与客户、合作伙伴和其他利益相关者建立紧密的合作关系,以实现共同的目标。

    以上只是选择我们的部分原因,我们相信还有很多其他的优点和价值可以为客户提供。如果您正在寻找一家专业、可靠、高质量的服务提供商,我们非常期待与您的合作。

  • 搅拌脱泡机的工作原理?

    施诺斯搅拌脱泡机通过公转的离心力进行脱泡,通过公转与自转形成的剪切力进行搅拌,

    再辅助以真空泵抽取气体以达到真空状态,去除纳米级微小气泡。 不接触物料,无二次污染,无二次浪费。


  • 施诺斯能提供工程咨询技术服务吗?

    施诺斯能为广大客户提供全面的工程和现代化的咨询服务。施诺斯近二十年的搅拌经验,可以为你提供高效的咨询服务。

    想要让搅拌机性能更上一层楼,提升系统的整体效能?我们有全面的咨询、工程以及现代化改造服务,为您量身打造解决方案。 在如今竞争激烈的全球化浪潮中,唯有不断创新、持续优化,才能始终跑在对手前面。您的生产工艺和产品日新月异,我们就为您提供最适配的混合技术。不管是新的产品参数,还是既有的工艺条件,我们都能对现有系统和搅拌设备进行全方位的检查与评估,挖掘其中潜藏的流程优化空间和机械性能提升潜力,并且帮您把这些改进切实落地。 要是您的搅拌设备已经跟不上时代步伐,能耗居高不下,或是维护成本让您头疼不已,那就别犹豫,我们的咨询、工程设计和现代化改造服务,就是为您排忧解难的良方。欢迎随时联系我们,携手开启高效生产新征程!

SIENOX Glue Dispensing Machine Product Selection Table

model

SIE-301

SIE-302

SIE-303

scope of work(mm)

400*400*100

600*600*100

1000*1000*200

control model

Controller/Computer

Controller/Computer

Controller/Computer

Multi head mode

single-head

Single head/Multiple head

Single head/Multiple head

Working mode

Glue dispensing/spraying/coating

Glue dispensing/spraying/coating

Glue dispensing/spraying/coating

Delay waiting for glue

have

have

have

Close the glue in advance

have

have

have

Maximum Load(kg)

10

20

30

movement speed(mm/s)

0.1-500

0.1-500

0.1-500

repeatability(mm)


+/-0.02

+/-0.02

+/-0.02

size(mm)

L500*W600*H5000

L700*W800*H500

L1300*W1100*H1600

***The above are only typical models, and we can provide personalized solutions according to customer needs.


The fully automatic dispensing machine is easy to operate and can be programmed on-site using a teaching pendant. It can also be programmed on a computer using application software such as CAD and CORELDRAW and downloaded to the machine
