Centrifugal Degasser
TEL:18925129293

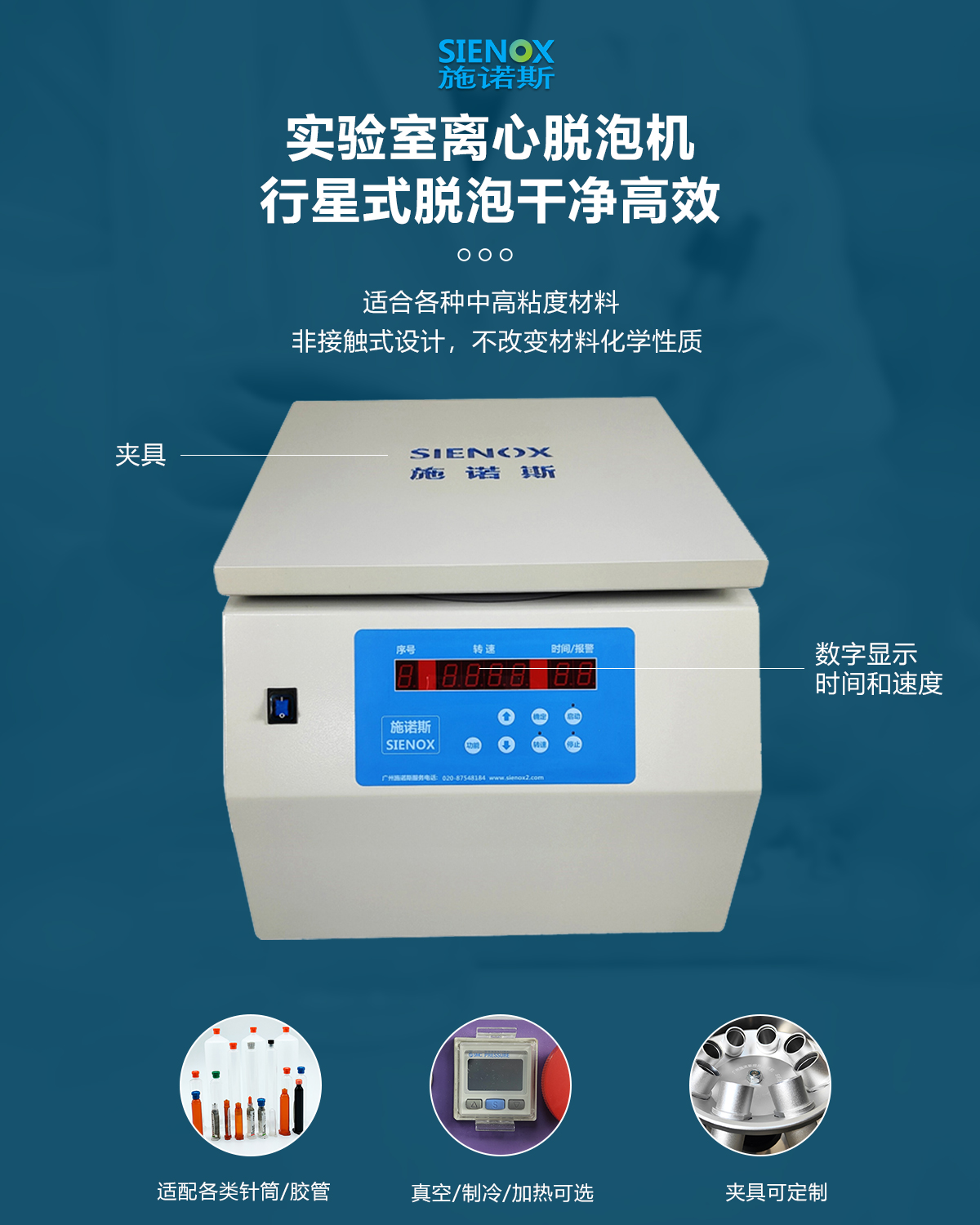

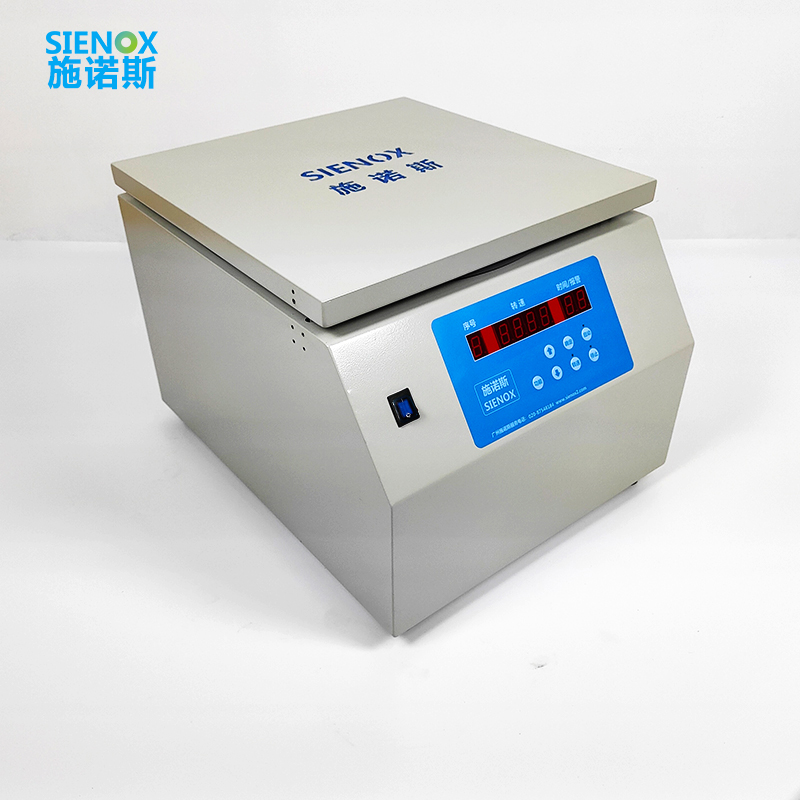

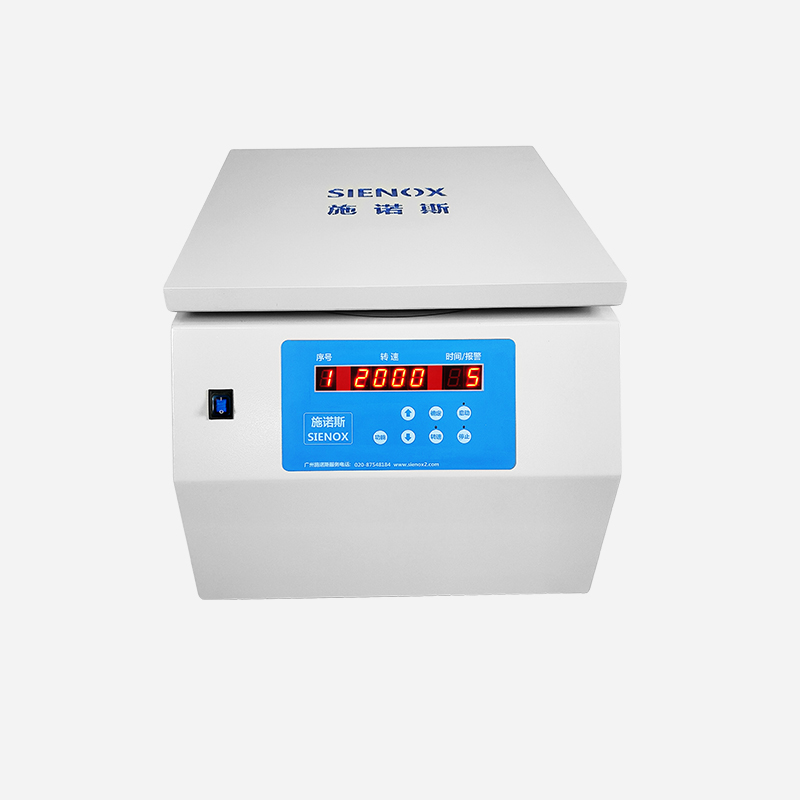

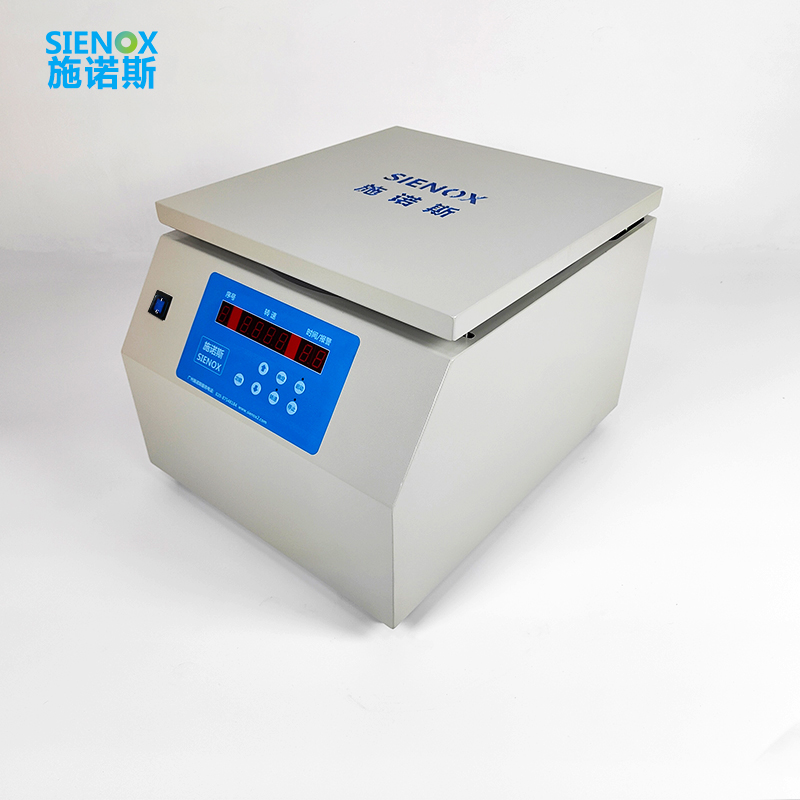

Centrifugal Defoaming Machine SIE‑C008
High‑Centrifugal‑Force Driven Deep Defoaming · 8‑Tube Parallel Processing with Reproducible Recipes
4500rpm high‑centrifugal‑force deep defoaming + 8‑station parallel operation + one‑click recall for 100 recipe sets
SIENOX SIE‑CV200 is a desktop planetary stirring‑defoaming machine developed for laboratory research and small‑sample tests. It requires no extra floor space and can be placed directly on lab benches. The 200mL small‑sample capacity matches regular research‑lab consumption and reduces material waste.
SIENOX SIE‑C008 centrifugal defoaming machine processes 8 syringes simultaneously. Wide speed range 100‑4500rpm adapts to materials of various viscosities. 100‑set recipe storage saves and reproduces process parameters without re‑adjustment during material change. Mechanical panel operation with low‑noise design, ideal for shared lab environments.
✓ FCC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly affect end‑product quality.
Laboratory R&D FieldRepeated small‑sample tests in R&D suffer from non‑reproducible test data caused by bubbles. Significant result deviations occur between two runs of the same material, wasting valuable samples and delaying R&D progress. Centrifugal defoaming performs non‑contact processing inside sealed syringes to ensure sample purity and reliable, reproducible data. | Medical Consumable IndustryBubbles in dental resins and diagnostic reagents directly reduce product pass rates. Voids after curing degrade mechanical properties and may cause total product rejection. Meeting strict medical cleanliness requirements, centrifugal defoaming avoids secondary contamination without stirrer contact, suitable for defoaming in clean environments. | Touch‑screen IndustryResidual bubbles in touch‑screen silver paste trigger screen‑printing open circuits and uneven sheet resistance, lowering yield rates. Non‑contact bubble separation via centrifugal defoaming guarantees consistent screen‑printing performance for conductive slurries and improves production yield. |
✨ Dilemmas of conventional methods: Manual stirring or ordinary stirrer paddles draw in air actively, generating more bubbles with stirring. Static defoaming takes long time with limited effect. Laboratories need professional non‑contact planetary stirring‑defoaming equipment, which separates bubbles while mixing via centrifugal force to ensure consistency and reproducibility of experimental data for every run.
Why Choose SIE‑C008
Three Core Advantages Built for Laboratory Research Scenarios
High‑centrifugal‑force DefoamingMax 4500 RPM delivers powerful centrifugal force for deep defoaming of high‑viscosity materials, and fast processing for low‑viscosity materials. Starting at 100 RPM for splash‑prone substances, the broad speed range flexibly fits diverse material properties. One unit meets multi‑material defoaming demands for lab teams. | Multi‑station Simultaneous Defoaming8 syringes process 8 samples in one run; multiple lab samples finish in parallel without queuing. Five syringe sizes 3/5/10/30/55 cc available, covering small‑scale tests to medium‑volume pre‑treatment. Tubular containers are ready‑to‑use; jar‑type containers are optional. | Storage for 100 Recipe SetsProcess parameters can be saved and reproduced. One‑click recall of different material recipes eliminates re‑setting speed and time upon material change. It prevents repeated trial‑and‑error from forgotten parameters, cuts material waste, delivers consistent batch results and enables traceable, comparable experimental data. |
✨ If your team processes multi‑variant materials, pursues process reproducibility, or handles hard‑to‑defoam high‑viscosity materials, C008’s 8‑tube parallel processing and recipe storage effectively boost efficiency.
Working Principle
Bubbles escape downward by gravity principle to efficiently eliminate micro‑bubbles and improve product quality.
Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials. Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape. Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged. Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑C008 |
| Mixing Capacity | 3/5/10/30/55cc* Larger volume customizable |
| Vessel Type | Test tube (jar optional) |
| Syringe Quantity | 8 pcs |
| Max Rotation Speed | 100 – 4500 RPM (stepless adjustable) |
| Standard Accessories | 8 × tubular syringes |
| Safety Lock Device | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 630×740×380mm |
| Net Weight | Approx.45 kg |
| Certifications | FCC, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Multi‑model Comparison Table
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑C006 | SIE‑C008 | SIE‑C012 |
| Mixing Capacity | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable |
| Vessel Type | Test tube (jar optional) | Test tube (jar optional) | Test tube (jar optional) |
| Syringe Quantity | 6 pcs | 8 pcs | 12 pcs |
| Max Rotation Speed | 100 – 4000 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) |
| Standard Accessories | 6 × tubular syringes | 8 × tubular syringes | 12 × tubular syringes |
| Safety Lock Device | Yes | Yes | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 560×640×370mm | 630×740×380mm | 660×740×380mm |
| Net Weight | 32 kg | 45 kg | 65 kg |
| Certifications | FCC | CFCC | FCC |
***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293
Multi‑Industry Solutions
Covers stirring‑defoaming applications for typical R&D and experimental materials across six industries.
University & Research InstitutesNew material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials |
BiopharmaceuticalsDiagnostic reagents, drug sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives |
Fine ChemicalsCoating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries |
LED PackagingPhosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive |  AerospaceConductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive |
Testing LaboratoriesStandard sample preparation, reference sample production, incoming material inspection, quality analysis samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results

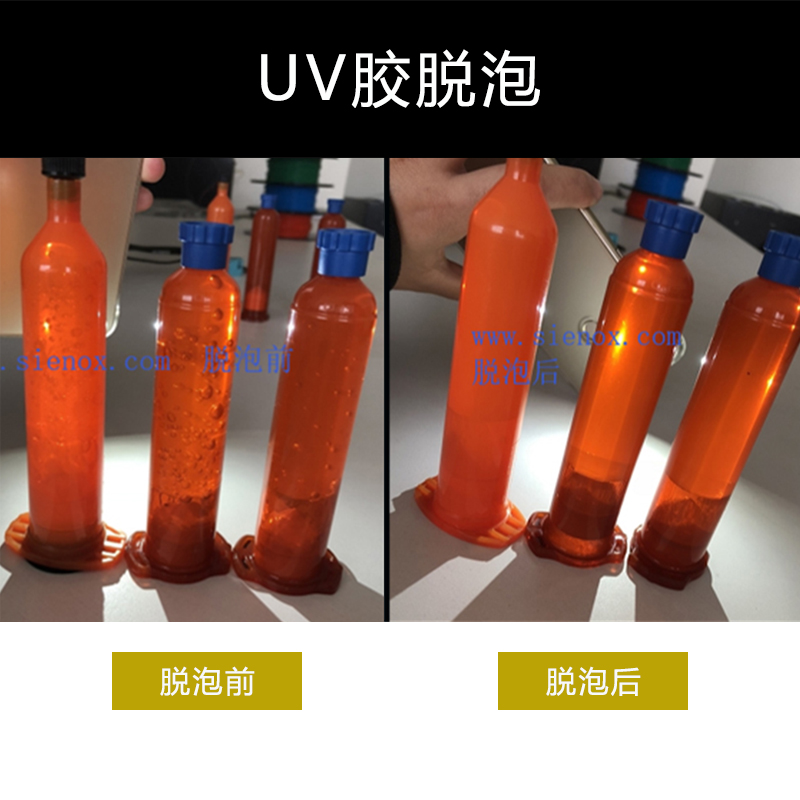

UV Adhesive |
UV Adhesive |
Pharmaceutical Gel |
Lubricant |
Polymer Material |
High‑viscosity Adhesive |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison (Before & After)
| Material Type | State Before Treatment | After Treatment by C006 |
| Ceramic Slurry | Turbid and whitish slurry with thick foam layer on surface after mixing, numerous forming defects | Transparent and uniform slurry, smooth foam-free surface, dense forming |
| Dental Resin | Visible bubbles inside resin, voids after curing, fluctuating mechanical properties | Clear transparent resin, dense and void-free after curing with stable performance |
| Touch Silver Paste | Bubbles inside silver paste, broken lines and pinholes during screen printing, uneven sheet resistance | Smooth and uniform silver paste, continuous screen printing without breakage, consistent sheet resistance |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
