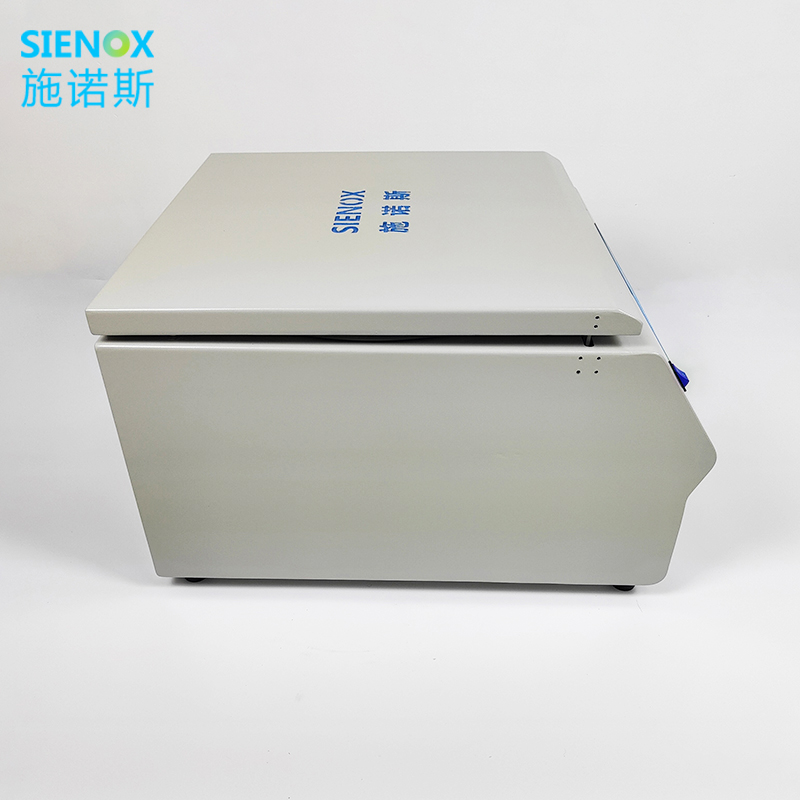

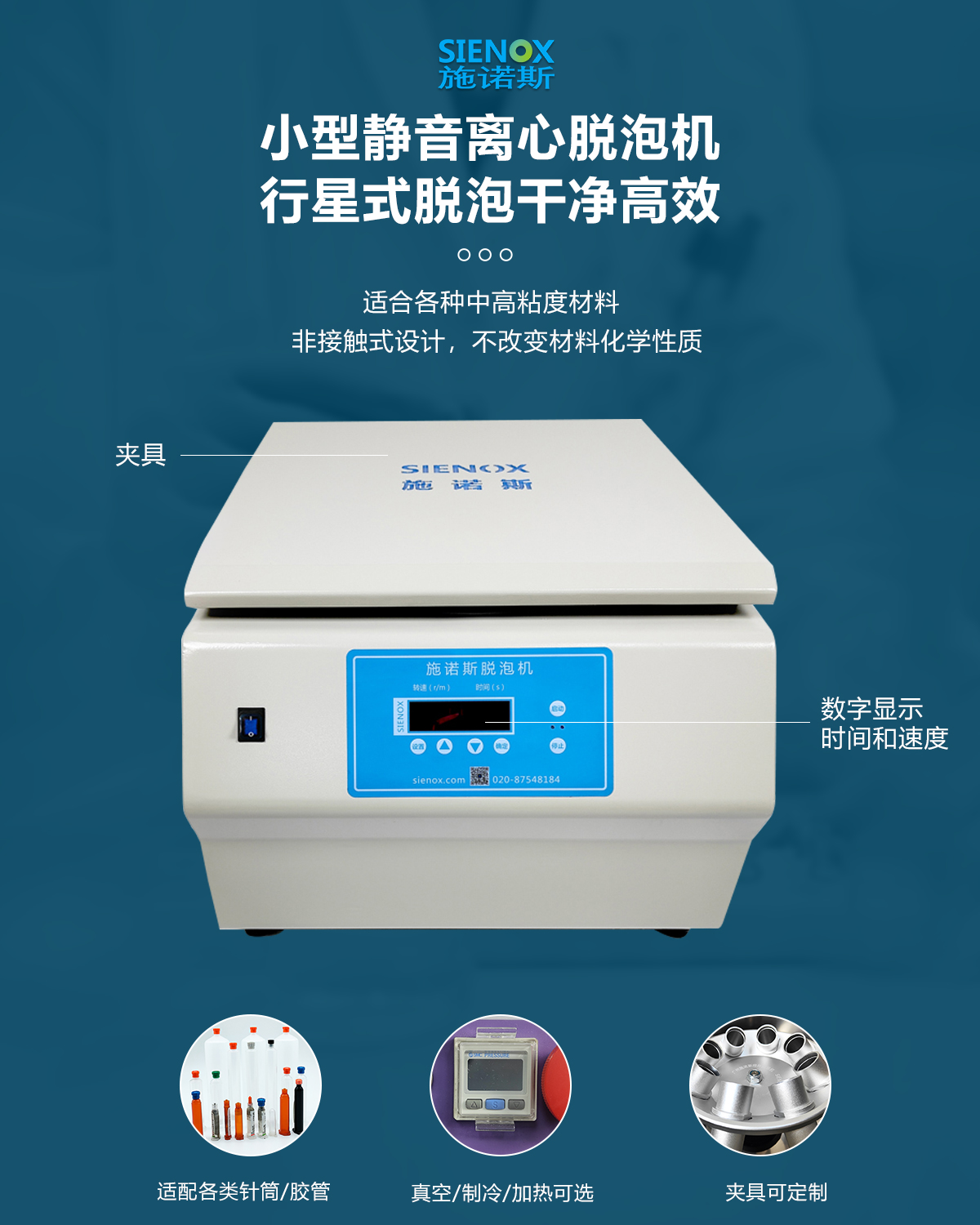

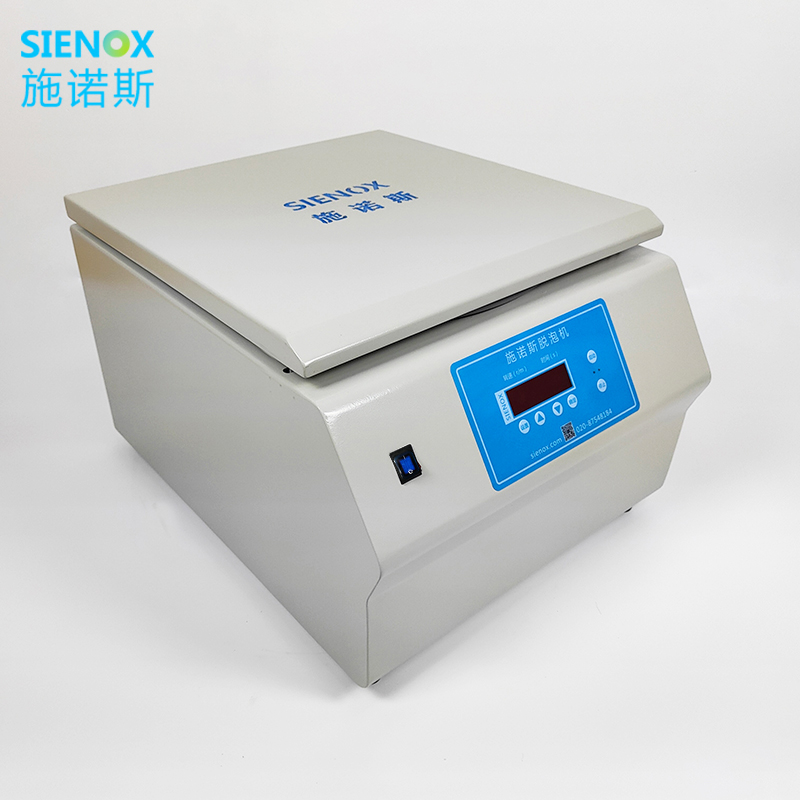

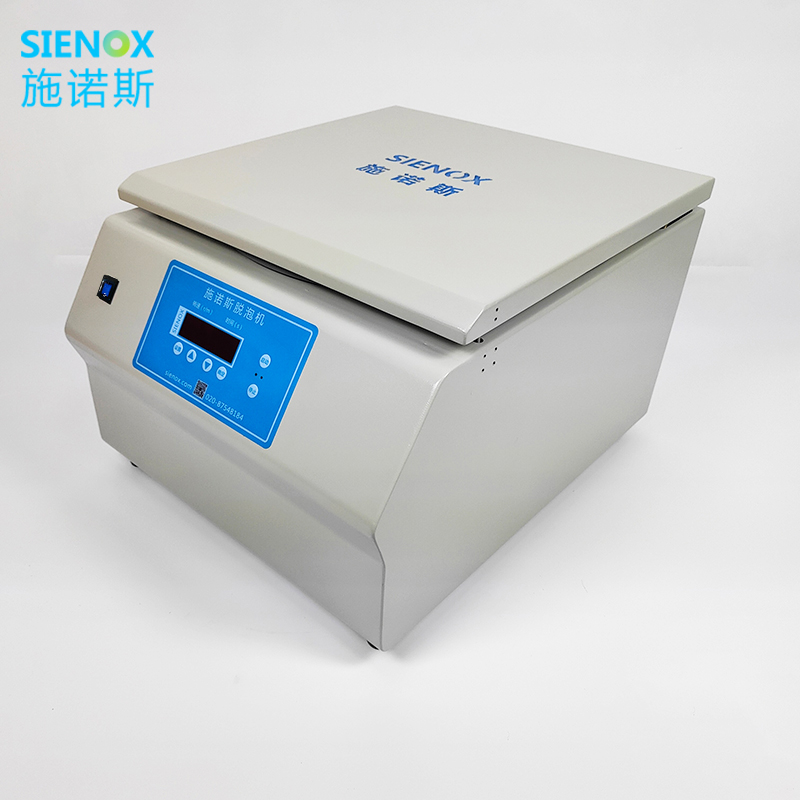

Centrifugal Defoaming Machine SIE‑C012


16‑Tube High‑Throughput Batch Defoaming · One Unit Covers Full Range from Small Sample to Pilot‑Scale

16‑tube high‑throughput 100% incoming inspection + full specification coverage 3‑200cc + expandable vacuum & temperature control

SIENOX SIE‑C012 centrifugal defoaming machine processes 16 syringes simultaneously for 16 samples per batch. Compatible with 3‑200cc syringes, handling both micro‑samples and pilot‑scale production in one device. Optional vacuum and temperature‑control expansions adapt to diverse materials and processes with simple, intuitive mechanical panel operation.

✓ FCC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable Voltage (110V/220V)

在线留言 免费寄样测试 工程师热线:189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Micro‑bubbles remaining in materials will directly affect the quality of end‑products.

Laboratory R&D Field

Repeated small‑sample tests in R&D suffer from non‑reproducible test data caused by bubbles. Significant result deviations occur between two experiments on the same material, wasting precious samples and delaying R&D progress. Centrifugal defoaming performs non‑contact treatment inside sealed syringes to keep small samples pure and deliver reliable, reproducible data.

Medical Consumables Industry

Bubbles in dental resin and diagnostic reagents directly reduce product qualification rate. Voids after curing degrade mechanical properties and even cause product rejection. Demanding cleanliness requirements in medical industry are satisfied by centrifugal defoaming without stirring paddle contact to avoid secondary contamination, suitable for defoaming in clean‑room environments.

Touch‑Screen Industry

Residual bubbles in touch silver paste cause screen‑printing open circuits and uneven sheet resistance, lowering yield rate. Non‑contact bubble separation via centrifugal defoaming ensures screen‑printing consistency of conductive slurry and improves production yield.

✨ Dilemmas of Conventional Methods: Large number of incoming inspection samples cause long waiting time for tube‑by‑tube processing, leading to severely delayed test reports. Batch R&D experiments require multiple separate runs, making synchronous data comparison impossible. Samples of different specifications demand different devices, resulting in high laboratory equipment investment costs.

Why Choose SIE‑C012

Solve the efficiency bottleneck of laboratory batch testing and R&D defoaming

High‑Centrifugal‑Force Defoaming

Max 4500rpm generates strong centrifugal force for deep defoaming of high‑viscosity materials, while low‑viscosity materials can also be processed rapidly. Starting at 100rpm low‑speed setting for splash‑prone materials. Wide speed range flexibly adapts to various material properties, one machine meets defoaming demands for multiple lab materials.

Multi‑Station Simultaneous Defoaming

16 syringes process 16 samples in one run. Multiple lab samples run in parallel without queuing. Compatible with 3/5/10/30/55/200cc syringe sizes, covering small‑sample tests to medium‑batch pre‑treatment. Tube containers are plug‑and‑play; jar containers are available as option.

Expandable Temperature Control

Optional temperature‑control system (heating / cooling) for temperature‑sensitive material processes. MES network connection supported for production data traceability and recipe parameter management. Full‑process non‑contact design reserves space for future process upgrades.


✨ If your laboratory requires high‑throughput incoming inspection, full‑range coverage from small samples to pilot tests, or potential future vacuum & temperature‑control expansion, the C012 delivers better cost‑performance.

Working Principle

Bubbles escape under downward gravity, efficiently removing micro‑bubbles from materials to improve product quality.

Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials.

Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape.

Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged.


Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle.

Centrifugal Defoaming Machine Working Principle.jpg

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

ModelSIE‑C012
Mixing Capacity3/5/10/30/55/.../200cc* Larger volume customizable
Vessel TypeTest tube (jar optional)
Syringe Quantity16 pcs
Max Rotation Speed100 – 4500 RPM (stepless adjustable)
Standard Accessories16 × tubular syringes
Safety Lock DeviceYes
Control SystemMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)660×740×380mm
Net WeightApprox.65 kg
Certifications FCC, ISO9001, RoHS Compliance



我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 真空脱泡搅拌机是什么?用于哪些行业?

    真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。

  • 广州施诺斯主要生产哪些设备?

    主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。

  • 源头厂家采购脱泡设备有什么优势?

    源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。

  • 搅拌脱泡机的工作原理?

    施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。

  • 为什么选择施诺斯?

    施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。

Model Comparison Table

Full‑line standardized specifications for accurate process evaluation and equipment selection

ModelSIE‑C006SIE‑C008SIE‑C012
Mixing Capacity3/5/10/30cc* Customizable3/5/10/30cc* Customizable3/5/10/30cc* Customizable
Vessel TypeTest tube (jar optional)Test tube (jar optional)Test tube (jar optional)
Syringe Quantity6 pcs8 pcs12 pcs
Max Rotation Speed100 – 4000 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)100 – 4500 RPM (stepless adjustable)
Standard Accessories6 × tubular syringes8 × tubular syringes12 × tubular syringes
Safety Lock DeviceYesYesYes
Control SystemMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parametersMechanical panel, stores 100 sets of formula parameters
Power Supply220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)220V, 50/60Hz (110V US/JP standard customizable)
Overall Dimension(W×D×H)560×640×370mm630×740×380mm660×740×380mm
Net Weight32 kg45 kg65 kg
CertificationsFCCFCCFCC

***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293

Multi‑Industry Solutions

Covers centrifugal defoaming applications for typical materials across six major industries


University & Research Institutes

New material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials


Biopharmaceuticals

Diagnostic reagents, sustained‑release pharmaceutical preparations, pharmaceutical gels, vaccine adjuvants, biological adhesives


Fine Chemicals

Coating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries


LED Packaging

Phosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive


Aerospace

Conductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive


Testing Laboratories

Standard sample preparation, reference sample production, incoming material inspection, quality analysis samples

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

Actual‑test Performance Demonstration

Lab Sample Actual Test Results

UV Adhesive Defoaming 02.jpg

UV Adhesive

UV Adhesive Defoaming.jpg

UV Adhesive

Gel Defoaming 02.jpg

Pharmaceutical Gel

Lubricant Mixing & Defoaming.jpg

Lubricant

Polymer Material.jpg

Polymer Material

High‑viscosity Adhesive Before‑after Defoaming 01.jpg

High‑viscosity Adhesive

Measured Data Comparison

Comparison of Material Condition Before and After Centrifugal Defoaming

Material TypePre‑treatment ConditionPost‑treatment by C012
Ceramic SlurryTurbid whitish slurry with thick surface foam after stirring, numerous molding defectsTransparent & uniform slurry, foam‑free smooth surface, compact molding
Dental ResinVisible bubbles inside resin, voids after curing and fluctuating mechanical performanceClear transparent resin, void‑free compact curing with stable performance
Touch‑screen Silver PasteInternal bubbles cause screen‑printing open circuits & pinholes, uneven sheet resistanceSmooth uniform paste, continuous screen‑printing and consistent sheet resistance

* Internal lab test data. Actual improvement varies with material formulations. Contact sales for real customer cases.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.


BOX Single‑Component Epoxy Adhesive Defoaming Solution: SIENOX Planetary Defoaming Machine


SIENOX Planetary Stirring‑Defoaming Machine Enables High‑reliability Structural‑Adhesive Bonding Solutions


Silicone Rubber Material Stirring & Defoaming Solution
