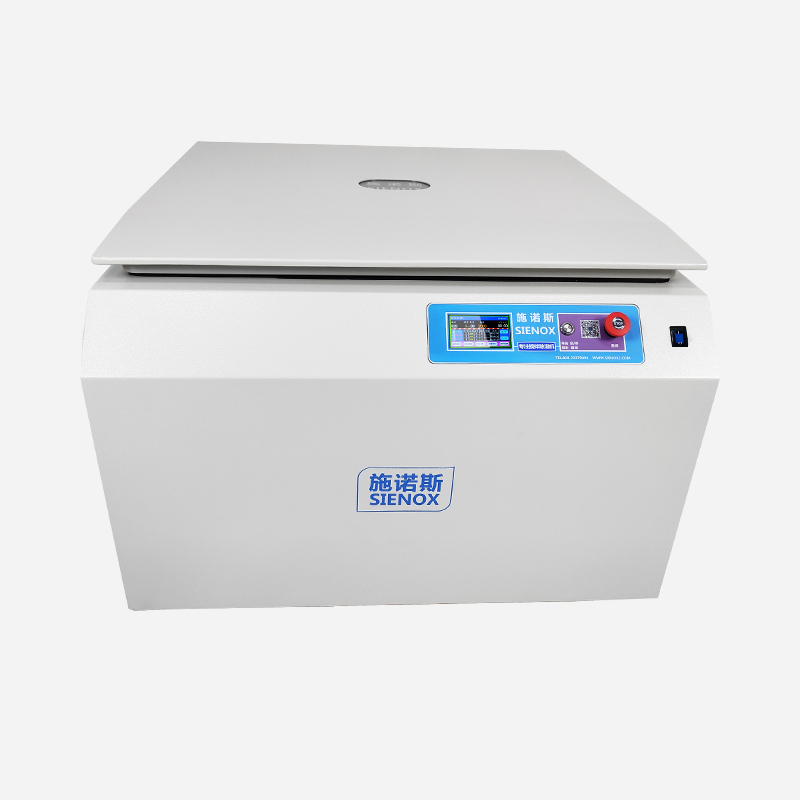

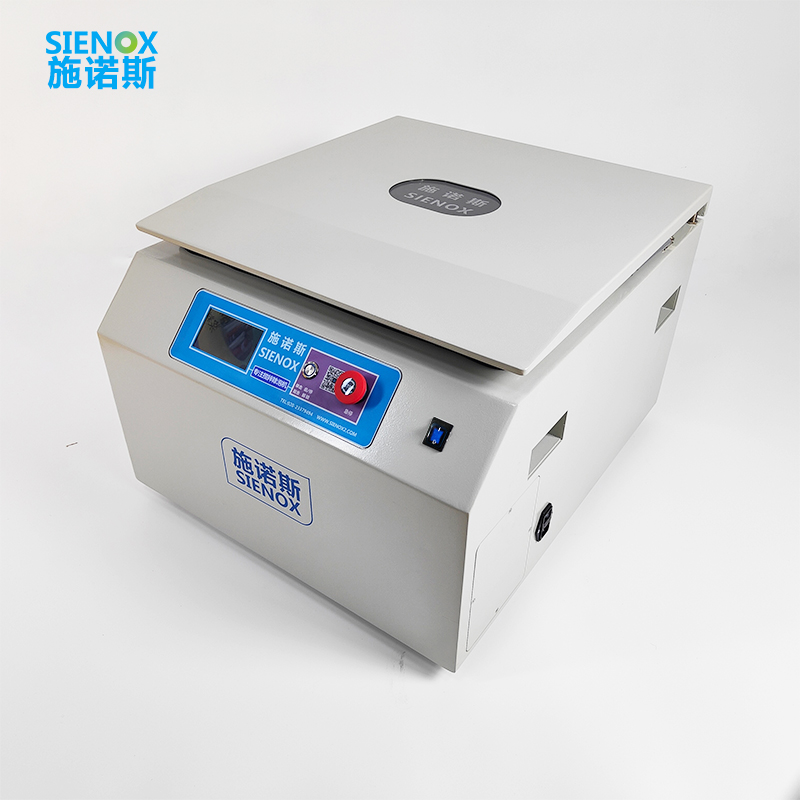

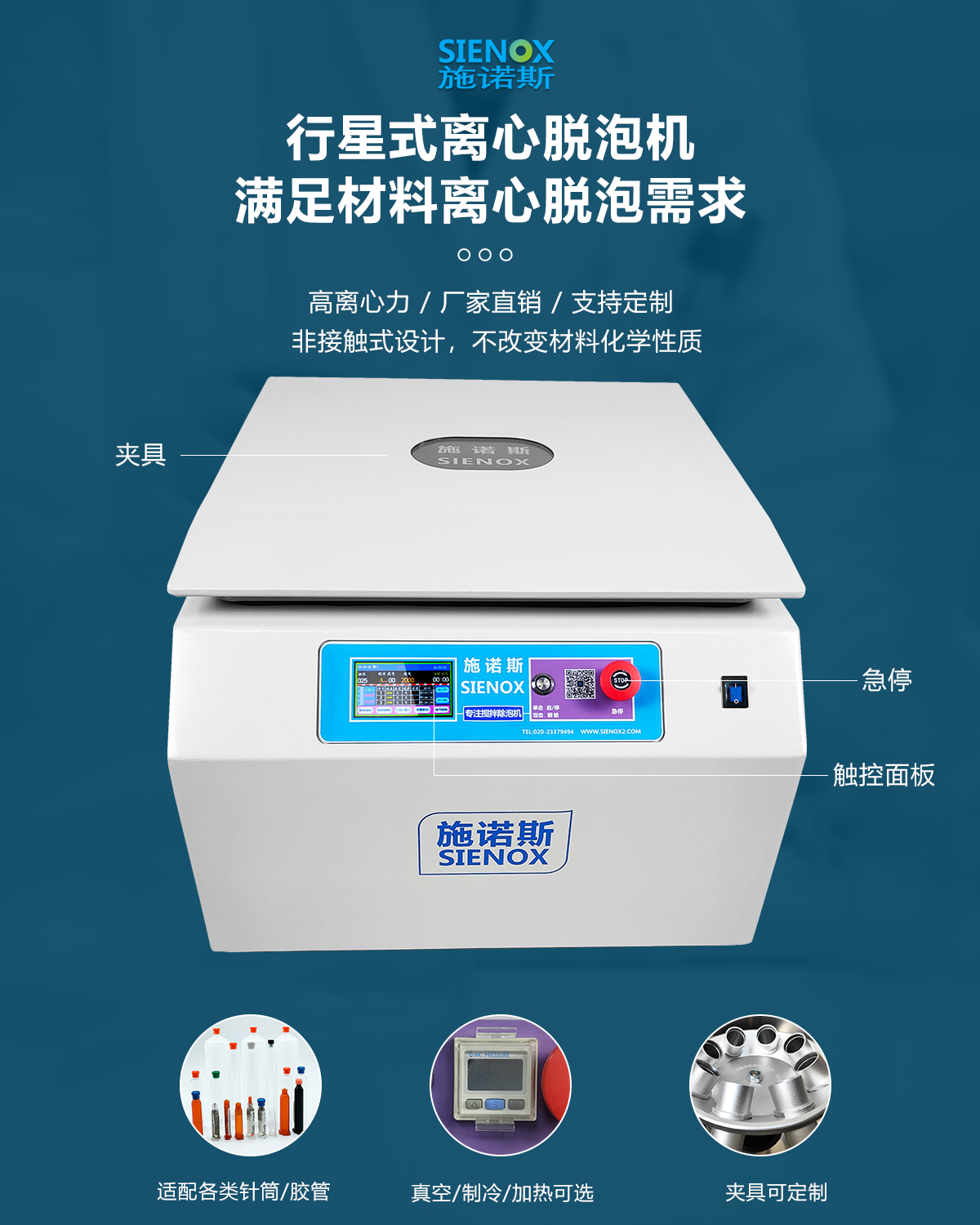

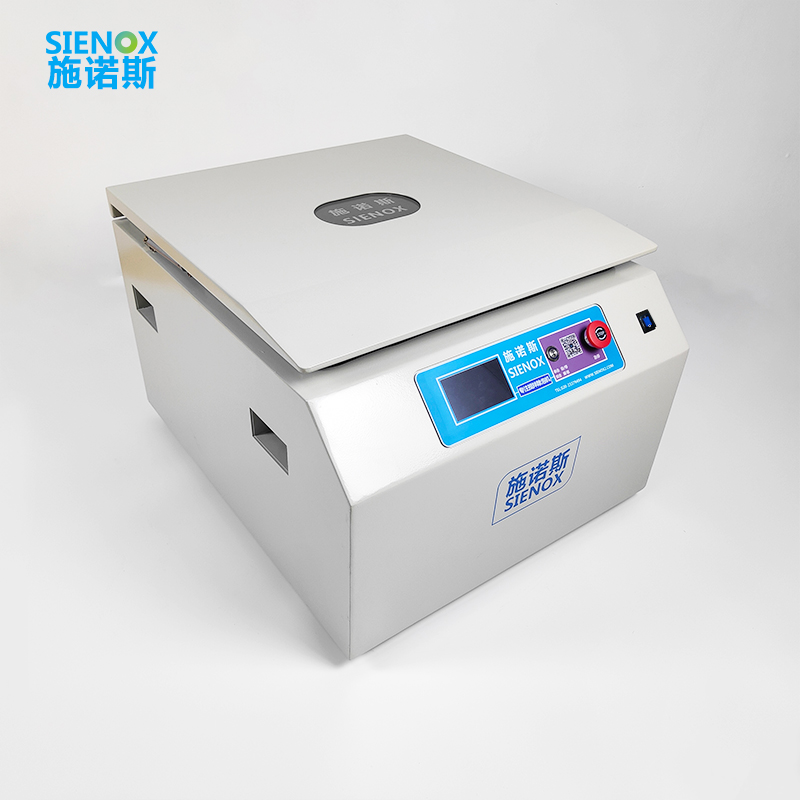

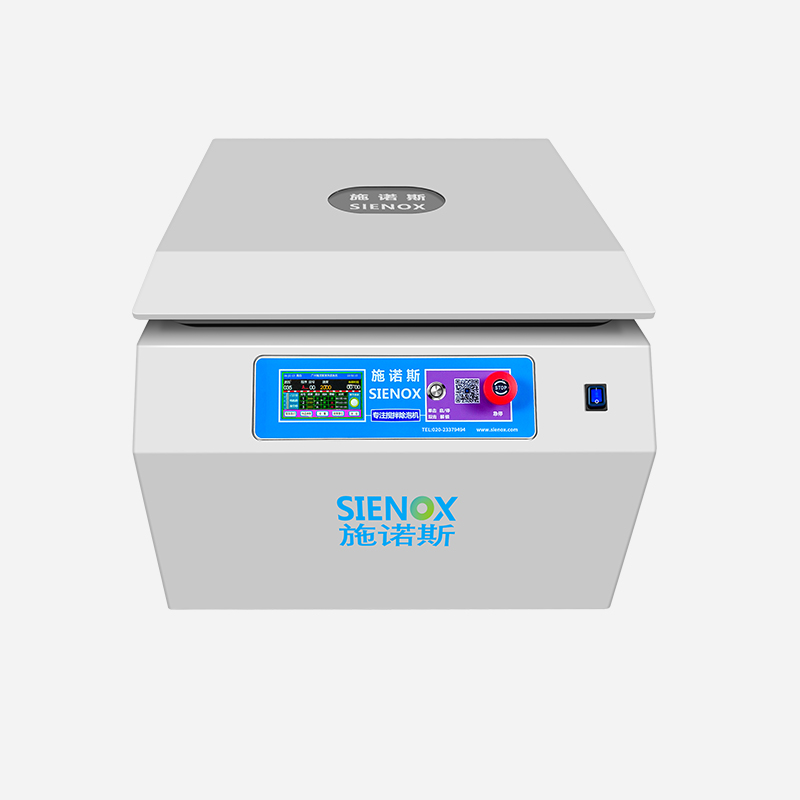

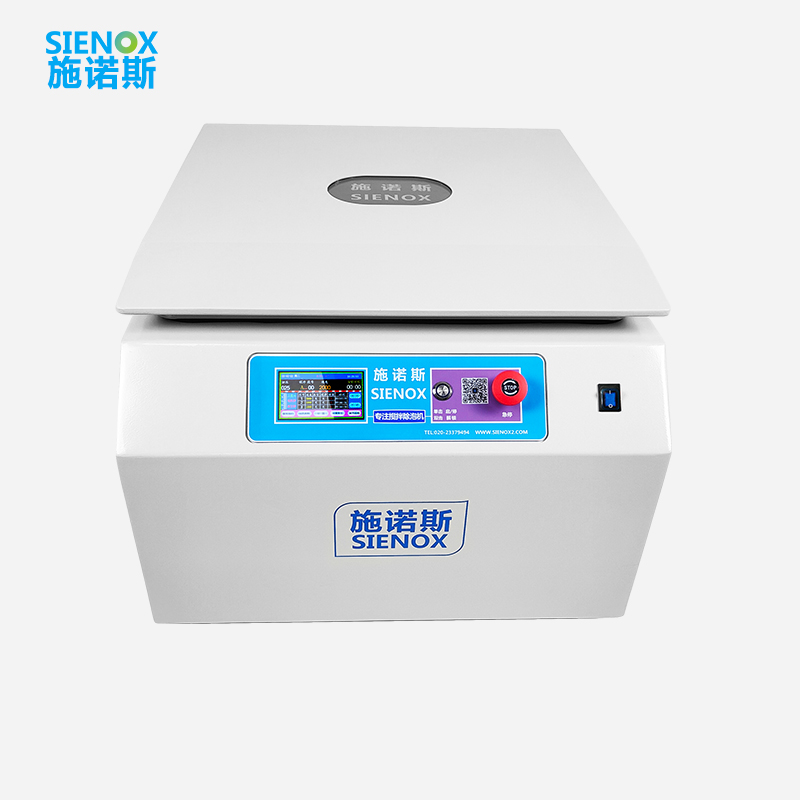

Benchtop Centrifugal Defoamer SIE‑VH350


Compact Body with Multi‑Container Compatibility · One‑Step Non‑Contact Centrifugal Defoaming

Standard 300CC×4 pcs + 0‑2000rpm Stepless Adjustment + Non‑Contact Centrifugal Defoaming

SIE‑VH350 centrifugal defoamer comes with standard 300CC×4‑piece configuration and 0‑2000rpm adjustable speed. Non‑contact centrifugal defoaming keeps material chemical properties unchanged, ideal for small‑batch syringe defoaming in electronics, 3D printing, cosmetics and other industries.

✓ Patented Design ✓ FCC Certification ✓ ISO9001 Quality System ✓ 304 Stainless‑Steel Cabinet ✓ 20‑Year Original Manufacturer

在线留言 免费寄样测试 工程师热线:189-2512-9293

Why Must Microbubbles in Materials Be Eliminated?

Residual micro‑bubbles in materials impair end‑product quality.

Electronics Industry

Residual bubbles in conductive silver paste cause dispensing interruption and coating pinholes, resulting in voids and poor insulation after curing. Centrifugal defoaming separates bubbles non‑contact by centrifugal force without introducing impurities, ensuring consistent dispensing performance of conductive paste.

Laboratory & Advanced Material R&D

Micro‑bubbles in nano‑dispersion compromise the accuracy of particle size measurement and reliability of dispersion evaluation data. Non‑contact treatment inside sealed containers preserves sample purity, suitable for small‑sample defoaming of test tubes and syringes.

Medical Consumables Industry

Bubbles in medical‑grade silicone lead to potting defects, reduced product compactness and fluctuating biocompatibility. No stirrer contact during centrifugal defoaming prevents secondary contamination for clean defoaming of medical consumables.

✨ Traditional Defoaming Dilemma: Manual stirring entraps air, static defoaming takes long hours, and contact‑type stirring may introduce impurities or modify material properties. The centrifugal defoaming solution separates bubbles via non‑contact centrifugal force without changing material chemical properties, and multi‑tube parallel operation boosts efficiency.

Why Choose SIE‑VH350

Three Core Advantages Cover Small‑Batch Syringe Defoaming Demands

Compact Design with Flexible Compatibility

VH350 occupies small floor space, suitable for laboratory and R&D bench‑top operation. Three container types including tubes, jars and cups are available, covering common syringes and sample tanks within 30‑300mL volume range.

Maximum Expandable Capacity for 16 Containers

Comes with four 300CC containers as standard, expandable to 16‑piece parallel defoaming. Multi‑tube parallel processing improves batch efficiency, satisfying both flexible small‑batch operation and multi‑sample simultaneous processing requirements.

Efficient Non‑Contact Defoaming

0‑2000rpm stepless adjustment. Centrifugal force separates bubbles without changing material chemical properties. Materials rotate inside sealed containers without direct contact from stirring paddles to prevent secondary contamination.

✨ VH350 suits small‑batch syringe defoaming requirements for laboratory and R&D scenarios.

Working Principle

High‑speed rotation generates centrifugal force, and gravity assists bubble escape. Materials complete non‑contact defoaming inside sealed containers.

Step 1: High‑Speed Centrifugal Separation
High‑speed rotation generates powerful centrifugal force. Density difference drives separation between bubbles and materials. Heavier materials distribute outward while low‑density bubbles gather inward.

Step 2: Gravity‑Assisted Bubble Escape
Downward gravity cooperates with centrifugal force, bubbles migrate axially to the liquid surface and escape to achieve high‑efficiency defoaming.

Step 3: Non‑Contact Purity Preservation
Materials rotate inside sealed containers without direct contact from stirring paddles, so chemical properties of materials remain unchanged.

Inside the sealed container, materials go through the full process of "high‑speed centrifugation → gravity‑driven bubble escape → non‑contact purity preservation" to complete centrifugal defoaming in one single step.




Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

Equipment ModelSIE‑VH350
Mixing Capacity30 / 55 / 75 / … / 300 cc (Customizable)
Standard Configuration300CC × 4 pcs
Quantity of Containers16 pcs (User‑selectable)
Max Rotation Speed0 – 2000 RPM (Stepless adjustable)
Technical PrincipleCentrifugal‑Force Defoaming

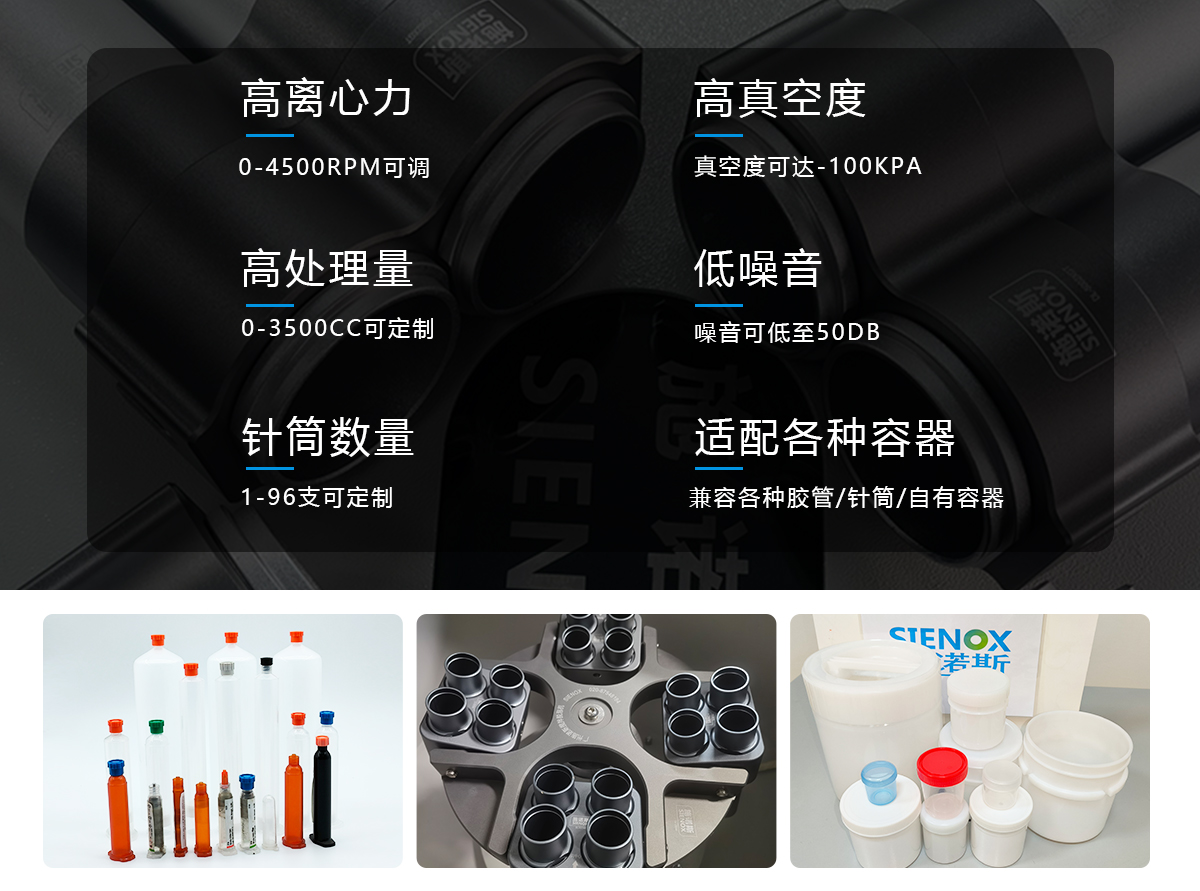

Container TypesTest tubes / jars / cups; adapters for syringes & cartridges supported
Control SystemTouch screen, stores up to 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/Japan standard customizable)
Overall Dimension(W×D×H)700 × 635 × 470 mm
Net WeightApprox. 150 kg
CertificationsFCC, ISO9001, RoHS Compliance

我们的合作伙伴

深受全球知名工业制造集群及前沿高校实验室信赖

合作伙伴展示

FAQ 您关心的问题

为您解答关于产品性能及日常工艺选型中的常见疑问

  • 真空脱泡搅拌机是什么?用于哪些行业?

    真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备,脱泡同时混料,避免二次气泡混入,常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理,广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。

  • 广州施诺斯主要生产哪些设备?

    主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。

  • 源头厂家采购脱泡设备有什么优势?

    源头厂家直供可省去中间环节,价格更透明,同时能提供参数定制、来料试机、工艺验证等服务,售后响应更直接。

  • 搅拌脱泡机的工作原理?

    施诺斯设备采用行星式混合原理:料罐在自转的同时绕公转轴公转,物料在罐内随之翻动混合,同时抽真空脱泡。整个过程设备不设搅拌桨,搅拌部件不接触物料,不会引入金属异物,混合均匀不分层。

  • 为什么选择施诺斯?

    施诺斯(SIENOX)是广州施诺斯科技股份有限公司旗下品牌,2014 年成立,专注脱泡机与搅拌机的研发与制造,团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计,不设搅拌桨,行星式公转加自转运动辅以真空系统,高效除泡,混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机,以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材,广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证,拥有 30 余项专利,服务富士康、比亚迪、清华大学等企业与科研院所。

Technical Specifications

Complete Technical Specifications Overview, Customizable on Demand

Equipment ModelSIE‑VH350SIE‑VH600SIE‑VH960
Mixing Capacity30 / 55 / 75 / … / 300 cc (Customizable)30 / 55 / 75 / … / 300 cc (Customizable)30 / 55 / 75 / … / 960 cc (Customizable)
Standard Configuration300CC × 4 pcs300CC × 8 pcs960mL × 4 pcs
Maximum Number of Containers16 pcs16 pcs32 pcs
Maximum Rotation Speed0 – 2000 RPM (Stepless adjustable)0 – 2000 RPM (Stepless adjustable)0 – 2000 RPM (Stepless adjustable)
Technical PrincipleCentrifugal DefoamingCentrifugal DefoamingCentrifugal Defoaming
Container TypeTubes / Jars / CupsTubes / Jars / CupsTubes / Jars / Cups
Control SystemTouch screen, stores up to 100 sets of recipe parametersTouch screen, stores up to 100 sets of recipe parametersTouch screen, stores up to 100 sets of recipe parameters
Power Supply220V, 50/60Hz (110V US/Japan standard customizable)220V, 50/60Hz (110V US/Japan standard customizable)220V, 50/60Hz (110V US/Japan standard customizable)
Overall Dimension(W×D×H)700 × 635 × 470 mm700 × 635 × 470 mm980 × 735 × 490 mm
Net Weight150 kg180 kg235 kg
CertificationsFCCFCCFCC

*** The above are typical models only. Customized solutions are available according to customer requirements.


Multi‑Industry Solutions

Covers centrifugal defoaming applications for typical materials across six major industries

Electronic Materials.jpg

Electronic Semiconductor

Conductive Silver Paste, UV Adhesive, One‑component Epoxy Resin, SMT Red Glue

University Scientific Research.jpg

Advanced Material R&D

Nano‑dispersion, Ceramic Slurry, Reagent Gel, Lab‑prepared Resin

Medical Devices.jpg

Medical Consumables Industry

Medical‑grade Silicone, Dental Resin, Biological Gel, Diagnostic Reagent Paste

LED Raw Material02.jpg

Optoelectronic Display

Optical Clear Adhesive, Touch Silver Paste, Frame Sealing Silicone, Backlight Filling Paste


Adhesives

One‑component Silicone, Acrylic Adhesive, Polyurethane Sealant, Molding Silicone

Automotive Electronics.jpg

Automotive Electronics Industry

Vehicle‑mounted PCB Potting Compound, Headlamp Encapsulation Silicone, Wire Harness Sealant, Vehicle‑use Thermal Conductive Paste

Comprehensive Equipment Operation Demo Videos

Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.

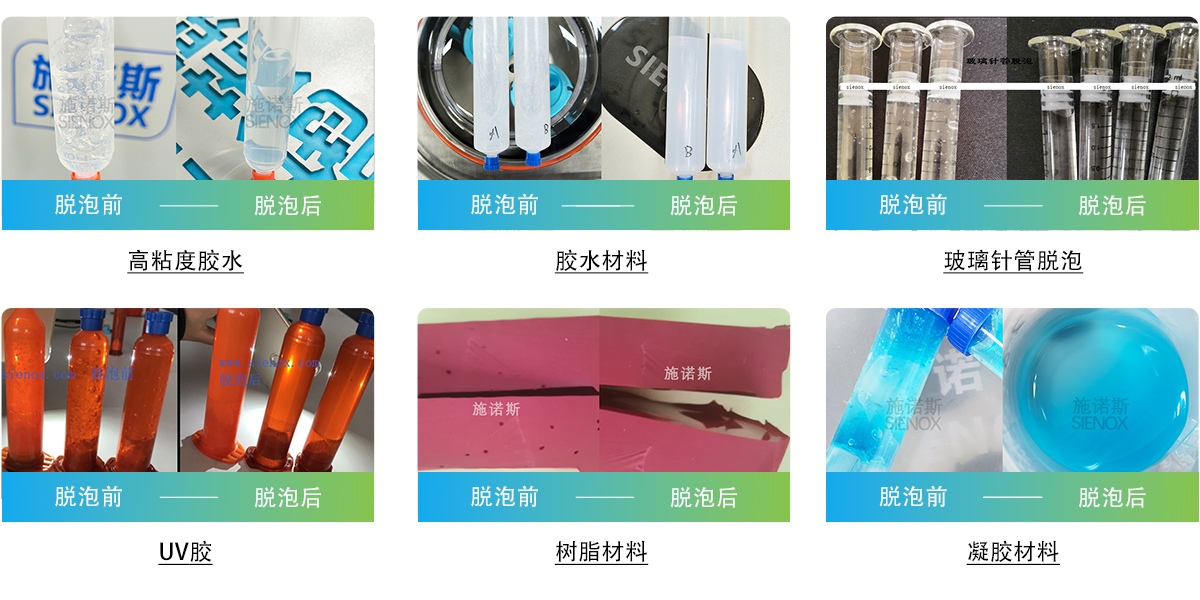

Actual‑test Performance Demonstration

Lab Sample Actual Test Results


Gel


Epoxy Resin


Polymer Materials


Potting Adhesive


Silver Paste Materials


Adhesive

Actual‑test Effect Comparison

Comparison of Material Condition Before and After Centrifugal Defoaming


Material Type

Condition Before Treatment

After VH350 Treatment

Conductive Silver Paste

Dense bubbles in paste, dispensing interruption rate approx. 5%, abundant coating pinholes

Bubbles eliminated, dispensing interruption rate below 1%, uniform coating

Nano‑dispersion

Numerous internal bubbles, particle size test deviation approx. 8%, poor repeatability

Bubbles eliminated, particle size test deviation below 2%, good repeatability

Medical‑grade Silicone

Plenty of bubbles inside silicone, potting defect rate approx. 6%, poor compactness

Bubbles eliminated, potting defect rate below 1%, stable compactness

* Internal laboratory test data. Actual improvement varies with material formulation. Real customer cases are available upon contact with sales.

Customer Delivery & Application Cases

Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.


BOX Single‑Component Epoxy Adhesive Defoaming Solution: SIENOX Planetary Defoaming Machine


SIENOX Planetary Stirring‑Defoaming Machine Enables High‑reliability Structural‑Adhesive Bonding Solutions


Silicone Rubber Material Stirring & Defoaming Solution
