Centrifugal Degasser
TEL:18925129293

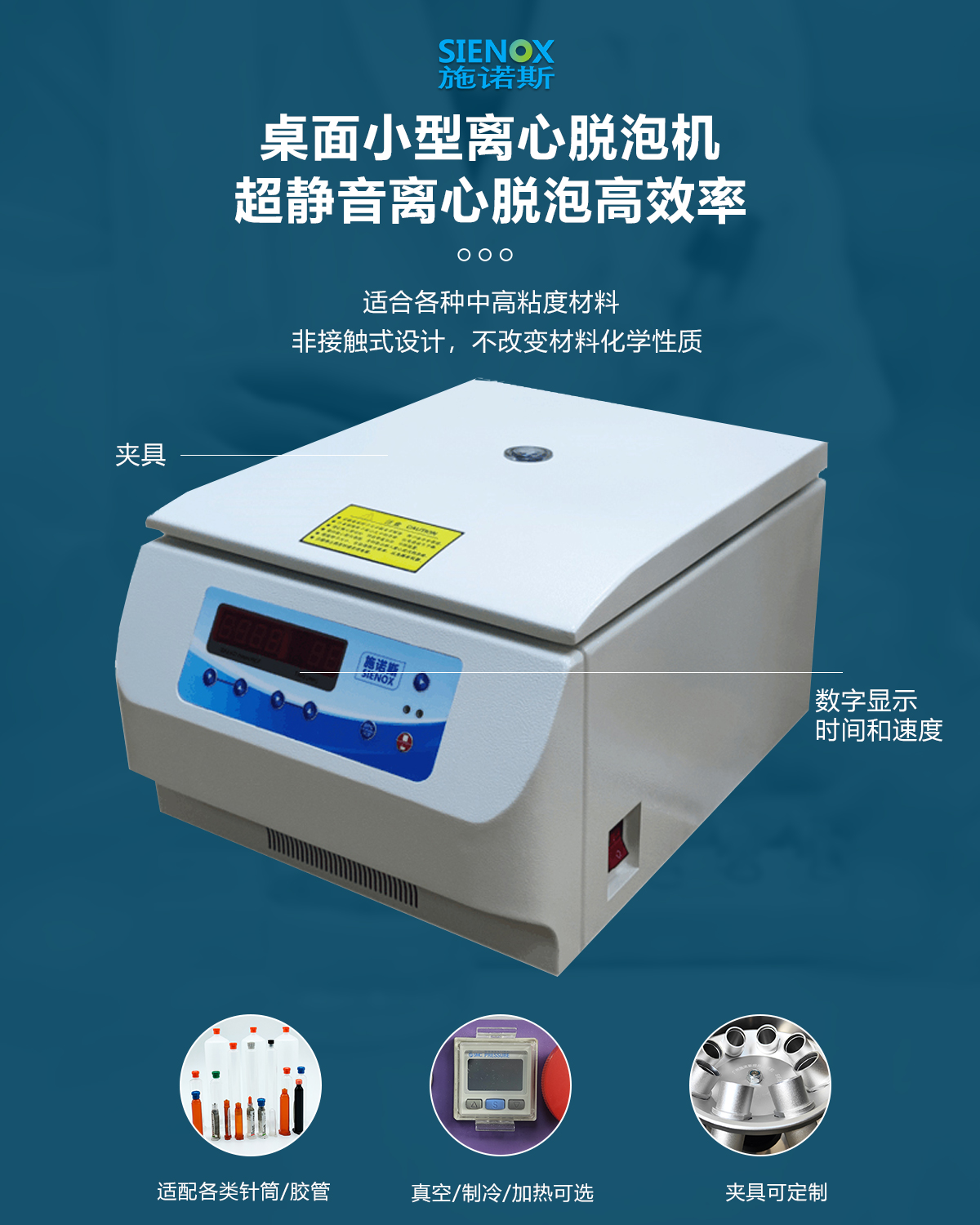

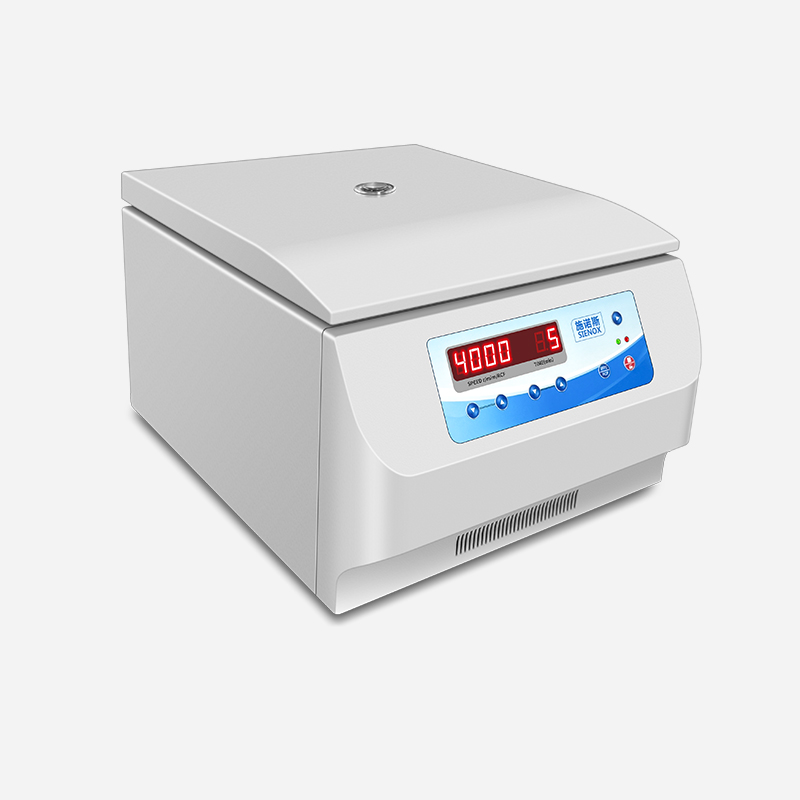

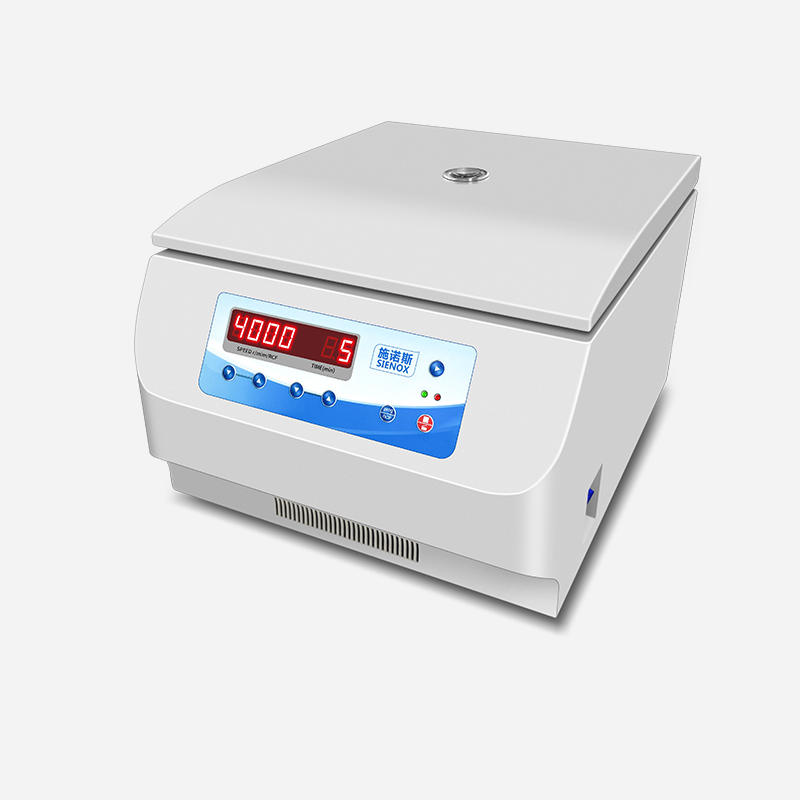

Centrifugal Defoaming Machine SIE‑C006
Compact Silent Centrifugal Defoamer for Glove‑box Use · Non‑contact Gravity Defoaming Preserves Material Properties
Glove‑box compatible operation + 6‑tube simultaneous defoaming without queuing + silent running for undisturbed workflow
SIENOX SIE‑CV200 is a benchtop planetary mixing‑defoaming machine developed for laboratory research and small‑sample tests. It requires no extra floor space and can be placed directly on lab benches. The 200 mL small‑volume capacity matches regular lab consumption and reduces material waste.
SIENOX SIE‑C006 centrifugal defoaming machine fits inside standard glove boxes and processes six small samples simultaneously. Simple intuitive mechanical panel control and patented silent design suit lab and office environments. Non‑contact gravity‑driven defoaming keeps chemical properties unchanged and lowers material contamination risks. It works for phosphor powder, epoxy resin, ceramic slurry, photosensitive resin and other common lab materials.
✓ FCC Certification ✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Customizable voltage (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles in materials directly degrade end‑product quality.
Laboratory R&DRepeated small‑sample tests in R&D suffer from non‑reproducible data caused by bubbles. Large deviations between duplicate experiments waste precious samples and delay progress. Centrifugal defoaming runs non‑contact inside sealed syringes to keep samples pure for reliable repeatable test results. | Medical ConsumablesBubbles in dental resins and diagnostic reagents reduce product pass rate. Cured voids degrade mechanical properties and cause scrap. High‑cleanliness requirements are met by stirrer‑free centrifugal defoaming which prevents secondary contamination for clean‑room operation. | Touch‑screen IndustryResidual bubbles in silver paste trigger screen‑printing disconnections, pinholes and uneven sheet resistance, lowering yield. Non‑contact centrifugal bubble separation guarantees consistent printing performance and improves production yield. |
✨ Limitations of Conventional Methods: Manual stirring or standard agitator paddles draw in air actively and generate more bubbles with stirring. Static defoaming takes long time with limited performance. Laboratories require professional non‑contact planetary mixing‑defoaming equipment, which separates bubbles while mixing via centrifugal force to ensure consistent and reproducible experimental data for every test.
Why Choose SIE‑C006
Three Core Advantages Tailored for Laboratory Research Scenarios
Glove‑box Compatible OperationCompact footprint fits inside standard glove boxes for direct defoaming under inert‑gas atmosphere. Air‑sensitive materials such as organolithium reagents, metal‑organic compounds and oxidizable polymers can be defoamed without taking them out of the box to prevent air‑induced deterioration. | Multi‑station Simultaneous DefoamingProcesses six samples at one time with six syringes without sequential waiting. Multiple syringe sizes (3/5/10/30cc) are available for different experimental volumes. Tubular containers are ready‑to‑use; one setting completes defoaming for multiple comparative test groups simultaneously. | Patented Silent DesignUnique patented design delivers strong centrifugal force for thorough and efficient defoaming. Low‑noise operation makes it suitable for lab benchtops or office desks without disturbing surrounding work, ideal for noise‑sensitive research and office environments. |
✨ If you have limited lab‑bench space, work with air‑sensitive materials, or expect quiet small‑sample defoaming near office areas, the C006 is your ideal choice.
Working Principle
Bubbles escape under downward gravity to efficiently eliminate micro‑bubbles inside materials and improve product quality.
Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials. Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape. Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged. Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑C006 |
| Mixing Capacity | 3/5/10/30cc* Larger volume customizable |
| Vessel Type | Test tube (jar optional) |
| Syringe Quantity | 6 pcs |
| Max Rotation Speed | 100 – 4000 RPM (stepless adjustable) |
| Standard Accessories | 6 × tubular syringes |
| Safety Lock Device | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 560×640×370mm |
| Net Weight | Approx.32 kg |
| Certifications | FCC, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Multi‑model Comparison Table
Full‑line standardized specifications for accurate process evaluation and equipment selection
| Model | SIE‑C006 | SIE‑C008 | SIE‑C012 |
| Mixing Capacity | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable | 3/5/10/30cc* Customizable |
| Vessel Type | Test tube (jar optional) | Test tube (jar optional) | Test tube (jar optional) |
| Syringe Quantity | 6 pcs | 8 pcs | 12 pcs |
| Max Rotation Speed | 100 – 4000 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) | 100 – 4500 RPM (stepless adjustable) |
| Standard Accessories | 6 × tubular syringes | 8 × tubular syringes | 12 × tubular syringes |
| Safety Lock Device | Yes | Yes | Yes |
| Control System | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters | Mechanical panel, stores 100 sets of formula parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Overall Dimension(W×D×H) | 560×640×370mm | 630×740×380mm | 660×740×380mm |
| Net Weight | 32 kg | 45 kg | 65 kg |
| Certifications | FCC | FCC | FCC |
***Above are typical models only. SIENOX provides customized solutions upon client requirements. Contact sales for model selection: 189‑2512‑9293
Multi‑Industry Solutions
Covers mixing‑defoaming applications for typical R&D and experimental materials across six industries.
University & Research InstitutesNew material synthesis, nanomaterial dispersion, polymer research, alumina slurry, functional materials |
BiopharmaceuticalsDiagnostic reagents, drug sustained‑release formulations, pharmaceutical gels, vaccine adjuvants, biological adhesives |
Fine ChemicalsCoating formulation, pigment dispersion, adhesive R&D, surface treatment agents, catalyst slurries |
LED PackagingPhosphor dispersion, packaging silicone, optical adhesive, color‑matching slurry, reflective adhesive |  AerospaceConductive adhesive, structural adhesive, composite resin, coating materials, high‑temperature adhesive |
Testing LaboratoriesStandard sample preparation, reference sample production, incoming material inspection, quality analysis samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results

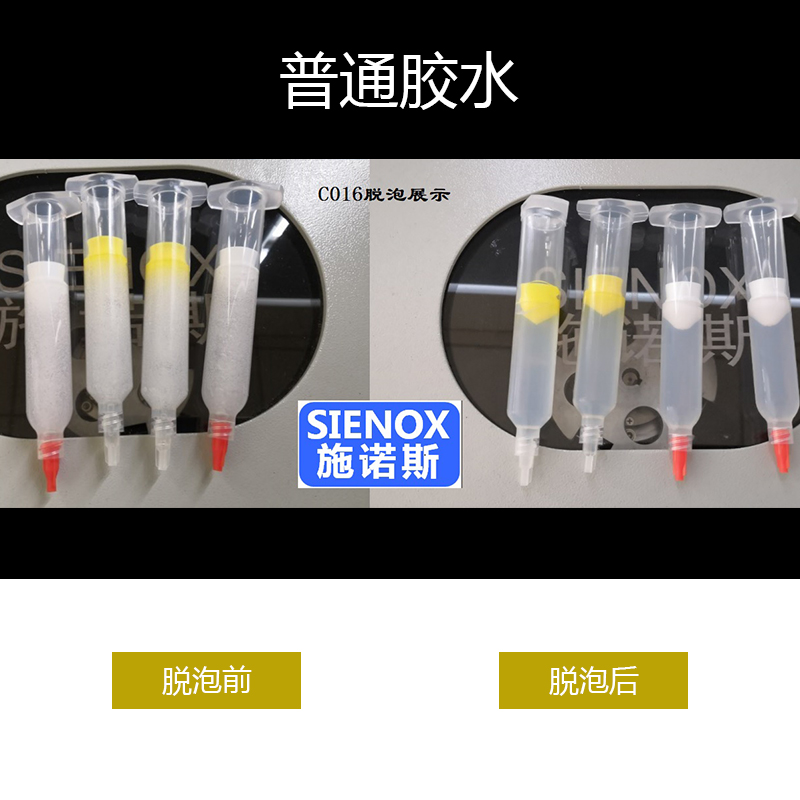

UV Adhesive |
UV Adhesive |
Pharmaceutical Gel |
Lubricant |
Polymer Material |

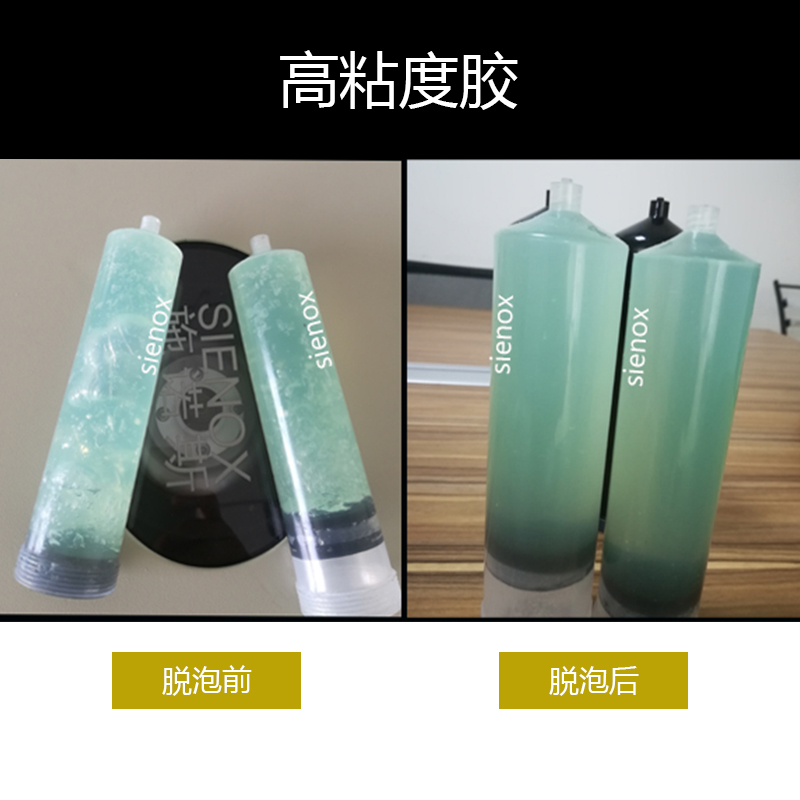

High‑viscosity Glue |
Actual‑test Effect Comparison
Material Defoaming Effect Comparison (Before & After)
| Material Type | State Before Treatment | After Treatment by C006 |
| Ceramic Slurry | Turbid and whitish slurry with thick foam layer on surface after mixing, numerous forming defects | Transparent and uniform slurry, smooth foam-free surface, dense forming |
| Dental Resin | Visible bubbles inside resin, voids after curing, fluctuating mechanical properties | Clear transparent resin, dense and void-free after curing with stable performance |
| Touch Silver Paste | Bubbles inside silver paste, broken lines and pinholes during screen printing, uneven sheet resistance | Smooth and uniform silver paste, continuous screen printing without breakage, consistent sheet resistance |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
Customer Delivery & Application Cases
Rooted in manufacturing frontlines, empowering benchmark production lines and key national research institutions across diverse industries.
