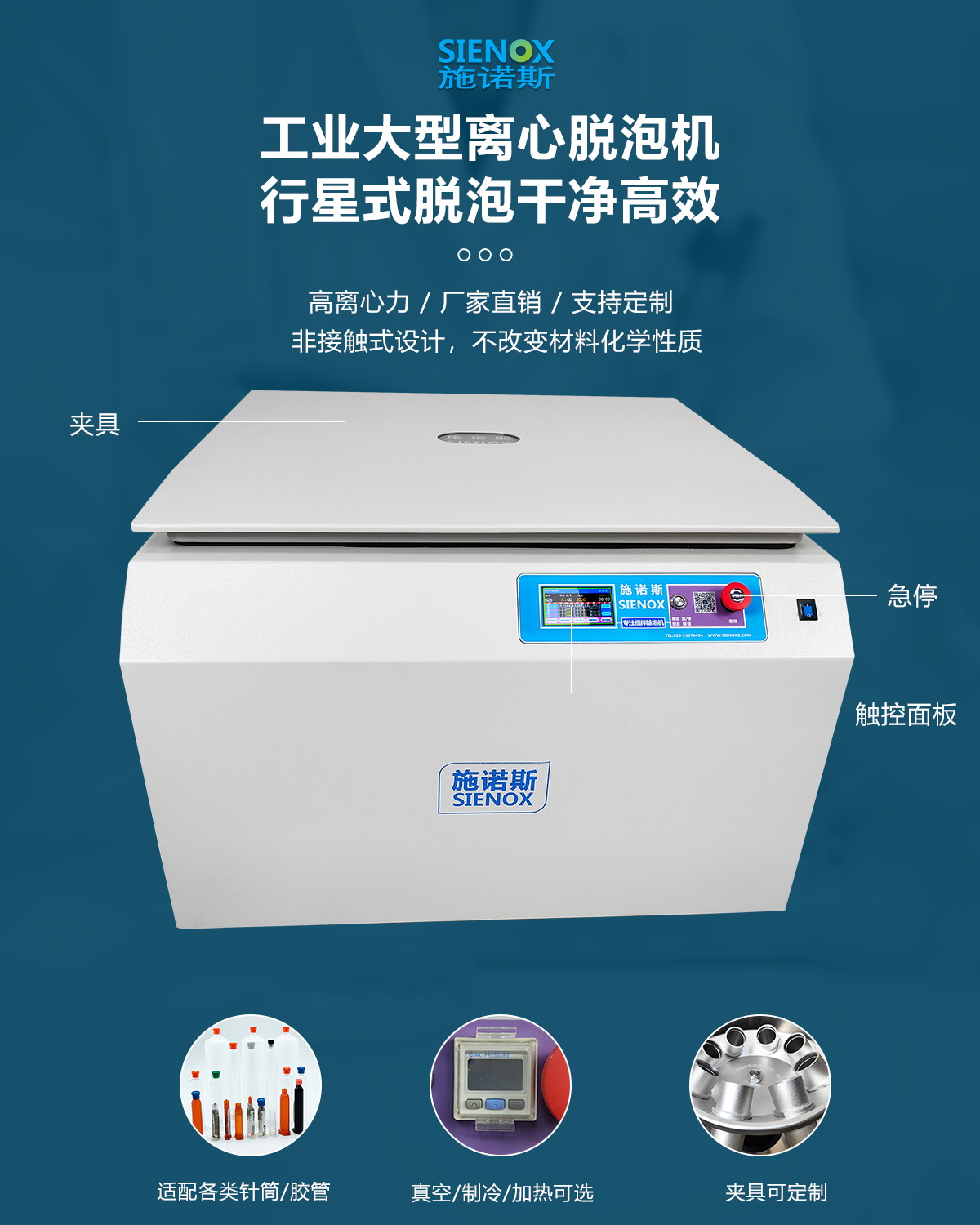

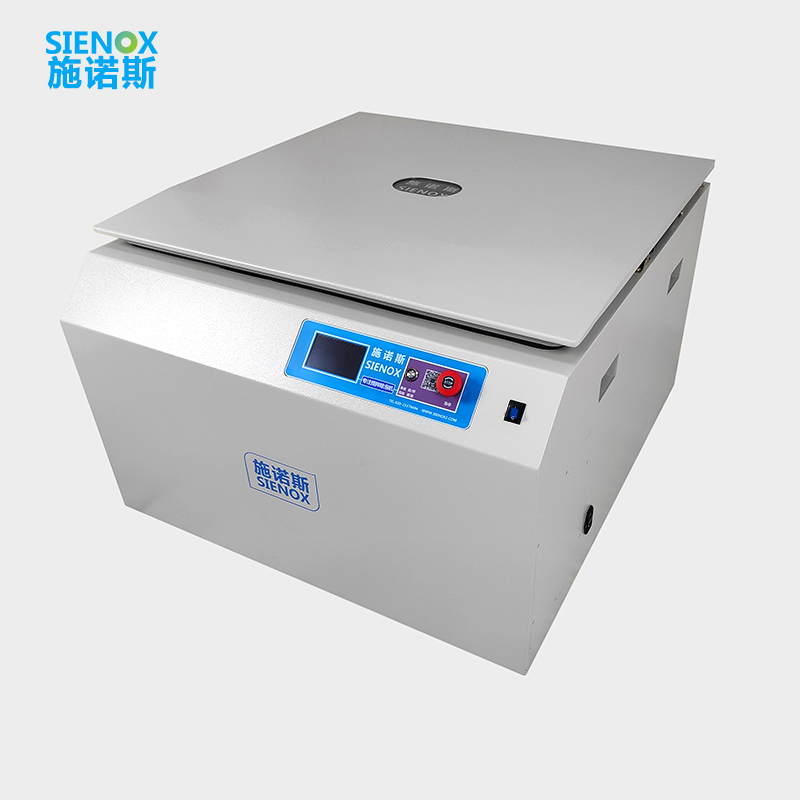

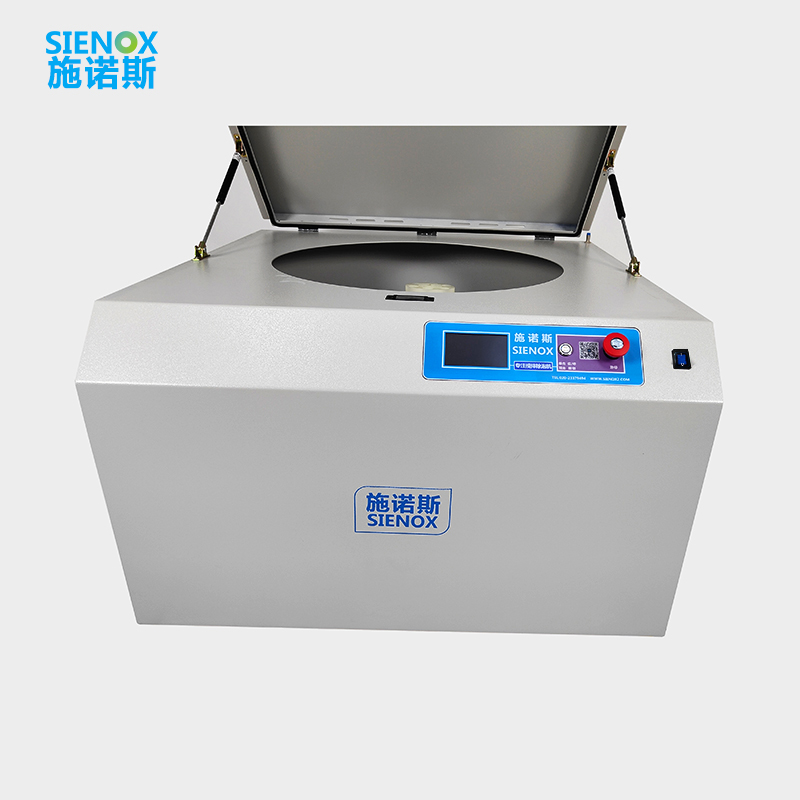

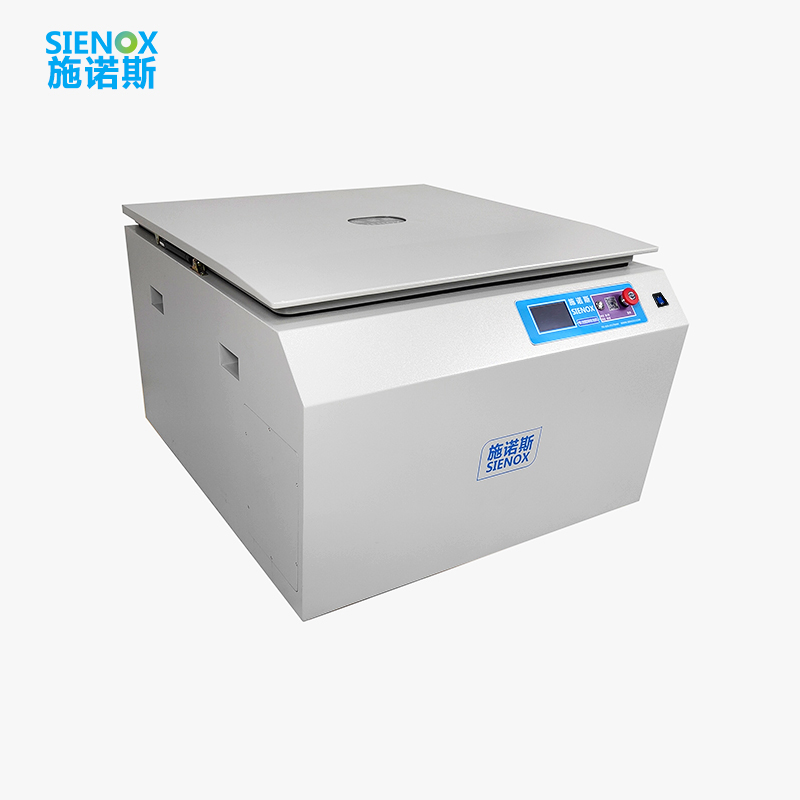

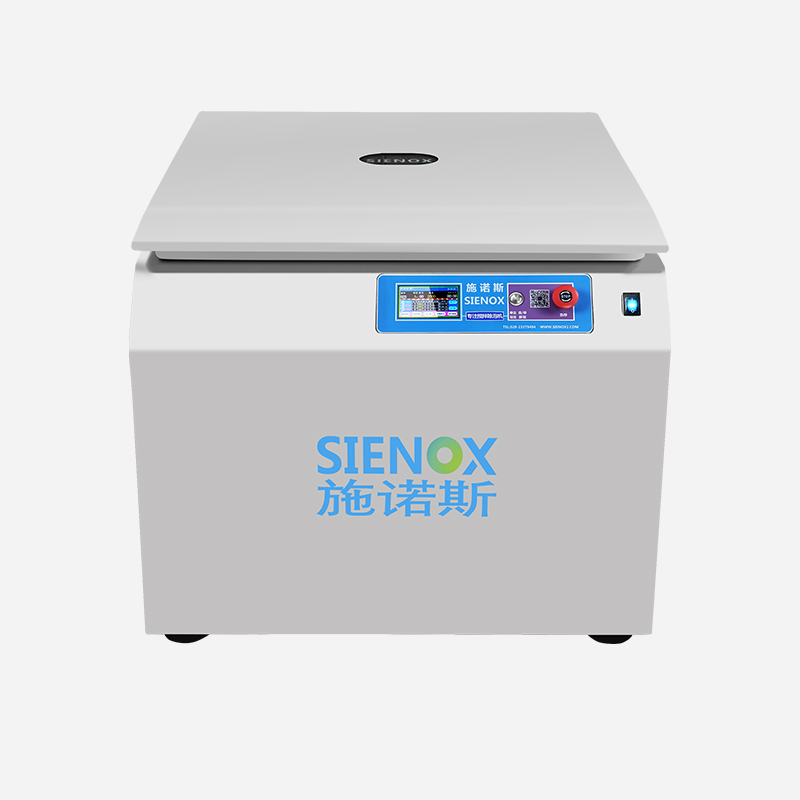

SIENOX Centrifugal Defoamer SIE‑VH55‑36
4000rpm Ultra‑High Speed Special Design for AB Cartridges · Precision Centrifugal Defoaming
Standard for 6 pcs × 490mL AB Cartridges + 0‑4000rpm Stepless Adjustable + Non‑contact Centrifugal Defoaming
Featuring ultra‑high speed of 0‑4000rpm and standard configuration for 6 pcs × 490mL AB cartridges, it is specially designed for high‑viscosity hard‑to‑defoam materials. Non‑contact centrifugal separation keeps material chemical properties unchanged, suitable for precision defoaming scenarios such as electronics & semiconductors, medical consumables and laboratory R&D.
✓ Patented Design ✓ FCC Certification ✓ ISO9001 Quality System ✓ 304 Stainless Steel Cabinet ✓ 20‑Year Original Manufacturer
Why Must Microbubbles in Materials Be Eliminated?
Micro‑bubbles remaining in single material impair end‑product performance and consistency
Component Packaging IndustryResidual bubbles in underfill cause voids, stress concentration and reduced reliability for chip packaging. Centrifugal defoaming separates bubbles merely by centrifugal force in non‑contact mode without introducing impurities, suitable for defoaming large‑volume single‑cup packaging adhesives. | Automotive Electronics IndustryBubbles in wire‑harness sealant trigger poor sealing, degraded weather resistance and failed harness protection. Non‑contact centrifugal treatment adds no contaminants, and standardized batch configuration ensures consistency across batches. | New Energy IndustryBubbles in photovoltaic conductive silver paste degrade gate‑line printing quality, contact resistance and photoelectric conversion efficiency. Non‑contact centrifugal defoaming preserves paste chemical properties, ideal for defoaming photovoltaic auxiliary materials. |
✨ Traditional Defoaming Pain Points: Batch‑processing large‑volume adhesives involves cumbersome procedures. Frequent material changeovers result in low efficiency. Contact‑type mixing impellers may introduce contamination and alter material chemical properties.
Why Choose SIE‑VH55‑36
Three Dimensions to Meet Precision Defoaming Requirements for High‑Viscosity Materials
High‑Centrifugal‑Force Defoaming4000 rpm rotating speed generates stronger centrifugal force to separate micro‑bubbles. For hard‑to‑defoam materials such as high‑viscosity silicone and conductive paste, bubbles hardly escape at normal rotating speeds, while ultra‑high speed delivers sufficient separation energy. | In‑Cartridge Defoaming for AB CartridgesEquipped with dedicated fixtures for AB cartridges as standard. 490 mL dual‑chamber cartridges can be loaded directly for defoaming without material transfer. Pre‑mixed single materials are defoamed inside original cartridges, lowering risks of secondary bubble introduction caused by container transfer. | 96‑Cartridge Expansion for Full‑Workflow CoverageExpandable from standard 6 cartridges up to 96 cartridges, supporting precision defoaming for lab samples and high‑throughput production‑line testing. Wide volume range of 3‑330 mL fits diverse containers from syringes to medium‑sized cans. One single unit covers full workflows from R&D to quality control. |
✨ High‑speed precision model for hard‑to‑defoam high‑viscosity materials, in‑cartridge AB cartridge defoaming, and full‑workflow coverage from R&D to quality control.
Working Principle
Low‑speed heavy‑load rotation generates synergistic effects of centrifugal force and gravity. Large‑volume materials achieve non‑contact centrifugal defoaming inside sealed containers without altering material chemical properties.
Step 1: High-speed centrifugal separation. Set speed and time via control panel. Centrifugal force generated by high rotation separates bubbles from materials. Step 2: Gravity-driven escape. Gravity pulls materials downward while bubbles rise to the surface and escape. Step 3: Non-contact purity preservation. Materials rotate inside sealed syringes without mixing blades contact, leaving chemical properties unchanged. Three simple steps: Centrifugal Separation → Gravity Escape → Non-contact Purity Preservation. Defoaming finished in one cycle. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑VH55‑36 |
| Mixing Volume | 30 / 55 / 75 / … / 330 cc (Customizable) |
| Standard Configuration | 6 pcs × 490 mL AB Cartridges |
| Quantity of Vessels | 4 pcs (User‑selectable) |
| Max Speed | 0 – 4000 RPM (Stepless adjustable) |
| Technical Principle | Centrifugal Defoaming |
| Vessel Type | Test tube / can / cup; adapters for syringes and cartridges supported |
| Control System | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 980 × 735 × 490 mm |
| Net Weight | Approx. 235 kg |
| Certifications | FCC, ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Technical Specification List
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑VH960 | SIE‑VH960‑48 | SIE‑VH55‑36 |
| Mixing Volume | 30 / 55 / 75 / … / 960 cc (Customizable) | 30 / 55 / 75 / … / 960 cc (Customizable) | 30 / 55 / 75 / … / 330 cc (Customizable) |
| Standard Configuration | 4 pcs × 960 mL | 48 pcs × 55 CC | 6 pcs × 490 mL AB Cartridges |
| Maximum Vessel Quantity | 32 pcs | 48 pcs | 4 pcs |
| Max Speed | 0 – 2000 RPM (Stepless adjustable) | 0 – 2000 RPM (Stepless adjustable) | 0 – 4000 RPM (Stepless adjustable) |
| Technical Principle | Centrifugal Defoaming | Centrifugal Defoaming | Centrifugal Defoaming |
| Vessel Type | Tube / Can / Cup | Tube / Can / Cup | Tube / Can / Cup |
| Control System | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters | Touch screen, stores 100 sets of recipe parameters |
| Power Supply | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) | 220V, 50/60Hz (110V US/JP standard customizable) |
| Dimension(W×D×H) | 980 × 735 × 490 mm | 980 × 735 × 490 mm | 980 × 735 × 490 mm |
| Net Weight | 235 kg | 235 kg | 235 kg |
| Certifications | FCC | FCC | FCC |
*** The above are typical models only. Customized solutions are available according to customer requirements.
Multi‑Industry Solutions
Covers centrifugal defoaming applications for typical materials across six major industries
AdhesivesPolyurethane sealant, one‑component silicone, acrylic adhesive, mold silicone |
Advanced Material R&DNano‑dispersion liquid, ceramic slurry, reagent gel, lab‑formulated resin |
Medical ConsumablesMedical‑grade silicone, dental resin, biological gel, diagnostic reagent paste |
Optoelectronic DisplayOptical clear adhesive, touch‑screen silver paste, frame sealing silicone, backlight filling paste |  New Energy IndustryCell thermal conductive gel, battery module sealant, PV frame silicone, PV conductive silver paste |
Automotive ElectronicsOn‑board PCB potting adhesive, headlamp encapsulation silicone, wire‑harness sealant, vehicle thermal conductive paste |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Lab Sample Actual Test Results
Gel |
Epoxy Resin |
Glue Materials |
Potting Adhesive |
Silver Paste |
Adhesive |
Actual‑test Effect Comparison
Comparison of Material Condition Before and After Centrifugal Defoaming
| Material Type | State Before Treatment | After Treatment by VH55-36 |
| Underfill | Dense bubbles inside adhesive, packaging void rate ~6%, poor reliability | Bubbles eliminated, packaging void rate below 1%, improved reliability |
| Mold Silicone | Numerous bubbles in silicone, vulcanization porosity ~7%, low molding precision | Bubbles eliminated, vulcanization porosity below 2%, stable molding precision |
| PV Conductive Silver Paste | Many bubbles in slurry, grid line breakage rate ~5%, fluctuating resistance | Bubbles eliminated, grid line breakage rate below 1%, stable resistance |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real customer cases.
