Pressurized Debubbling Machine SIE‑RX10‑1800
Extended‑length Chamber for Bulk Loading · Stable Temperature for Non‑stop Production Without Capacity Loss
50% Higher Loading Capacity Than Standard Model + 5‑min Heating for Continuous Operation with ±3℃ Temp Deviation + Three Modes & Precision Filtration for Clean Processing

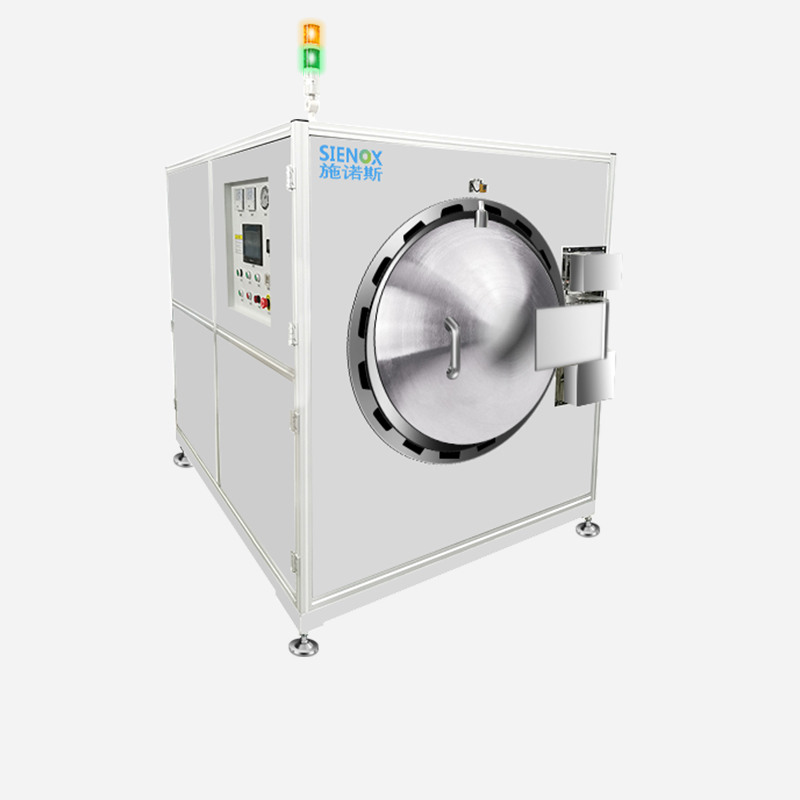

SINOS SIE‑RX10‑1800 Pressurized Debubbling Machine adopts φ1000×1800 mm extended cylindrical chamber of approx.1410L, delivering 50% higher loading capacity versus standard version. It reaches 60℃ within 5 min during continuous operation with internal temperature deviation of ±3℃. Three selectable operation modes. SMC digital pressure gauge achieves ±0.01 MPa accuracy, and Omron PID temperature control reaches ±1.0 ℃. It eliminates lamination‑induced bubbles by pressure and temperature to strengthen interfacial bonding force.
✓ ISO9001 Quality System ✓ RoHS Compliance ✓ Custom‑voltage support (110V/220V)
Why Must Microbubbles in Materials Be Eliminated?
Residual micro‑bubbles degrade end‑product quality directly
Large‑size Touch Screen Lamination IndustryDuring full lamination of large‑size touch screens, large‑area OCA optical adhesive generates massive bubbles, resulting in large‑area display defects and high return‑loss risks. The 1800 mm extended chamber of pressurized debubbler accommodates larger touch screens and processes multiple medium‑to‑large‑size panels in one batch. SMC precise pressure control ensures uniform stress across large lamination areas, ideal for mass‑production debubbling of large‑size touch‑screen lamination. | Battery Slurry IndustryBubbles in lithium‑battery slurry impair coating uniformity and battery safety performance. Stable debubbling is required for consistent batch quality in continuous mass production. The 1800 mm extended chamber processes large quantities of battery‑slurry containers in a single run. Resistive heating reaches 60 ℃ within 5 minutes during continuous operation with ±3 ℃ internal temperature deviation for long‑run thermal stability, suitable for continuous mass debubbling of battery slurry. | Conductive Silver Paste IndustryBubbles inside conductive silver paste break conductive paths and raise resistance. Stable debubbling is essential to guarantee conductivity for mass production. Three selectable operation modes support simultaneous or sequential heating‑pressurization based on silver paste properties. The extended chamber boosts throughput by processing multiple barrels of conductive silver paste at once, and the precision filter prevents secondary contamination, perfect for continuous mass debubbling of conductive silver paste. |
✨ Standard chambers feature insufficient loading capacity for continuous mass production, requiring frequent batch processing and queuing that reduce overall throughput. Ordinary devices suffer from slow temperature recovery after long‑time operation, resulting in unstable debubbling performance. Without stable temperature and precise pressure control, conventional equipment fails to deliver consistent quality across batches during continuous production.
Why Choose SIE‑RX10‑1800
Solve Capacity & Quality Pain Points for Mass Continuous Production
Extended Chamber for Bulk‑volume LoadingThe extended cylindrical chamber delivers approx. 1410L capacity, with 50% longer chamber length compared with the standard 1200 mm model for higher loading capacity. For continuous mass‑production tasks, the extended chamber processes more products or larger‑size workpieces in one cycle to reduce batch‑splitting times and greatly improve throughput. It fits continuous debubbling for large‑size touch screens, multi‑barrel slurries and bulk conductive silver paste. | Stable Temperature Control for Continuous OperationResistive heating reaches 60℃ within about 5 minutes under continuous operation, with an internal temperature deviation of ±3℃ (empty‑chamber test after stabilization). During continuous mass production, chamber temperature recovers rapidly after each loading‑unloading cycle. Debubbling performance of subsequent batches will not be compromised by temperature drop, ensuring stable quality for long‑run continuous production. | Multi‑mode Compatibility & Precision FiltrationThree operation modes adapt to diverse material processes. One single machine handles multiple materials including touch‑screen OCA adhesive, battery slurry and conductive silver paste. The precision filter avoids secondary material contamination and maintains product cleanliness during mass processing. Multi‑mode compatibility enables one equipment to serve multiple production lines and boost equipment utilization rate. |
✨ If you require an extended‑length chamber for higher throughput and stable temperature control for continuous mass production, RX10‑1800’s extended chamber and consistent thermal performance enable your high‑efficiency volume manufacturing
Working Principle
Remove bubbles generated during lamination by pressure and temperature to enhance bonding strength between different materials.
Step 1: Pressurization & Temperature Rise (Three Modes Optional) Step 2: Pressure‑holding Debubbling Step 3: Pressure Relief & Stabilization Three simple steps: Pressurization & Temperature Rise → Pressure‑holding Debubbling → Pressure Relief & Stabilization, eliminate lamination bubbles and improve bonding strength. |  |
Technical Specifications
Complete Technical Specifications Overview, Customizable on Demand
| Model | SIE‑RX10‑1800 |
| Chamber Size | φ1000×1800mm (Cylindrical) |
| Effective Volume | Approx. 1410L |
| Working Pressure | 0~0.8MPa (Standard), 0~2.5MPa (Optional) |
| Working Temperature | Ambient ~80℃ (Standard), Ambient ~180℃ (Optional) |
| Heating Method | Resistive Heating |
| Operation Modes | A. Pressurize First Then Heat B. Simultaneous Heating & Pressurization C. Heat First Then Pressurize |
| Control Mode | Microcomputer Control |
| Vessel Material | S30408 Stainless Steel or Carbon Steel |
| Overall Dimension(W×D×H) | Approx. 1300×2100×2000mm (Subject to actual product) |
| Net Weight | 2000 kg |
| Certifications | ISO9001, RoHS Compliance |
我们的合作伙伴
深受全球知名工业制造集群及前沿高校实验室信赖
FAQ 您关心的问题
为您解答关于产品性能及日常工艺选型中的常见疑问
-
真空脱泡搅拌机是什么？用于哪些行业？
真空脱泡搅拌机是在真空环境下同步完成搅拌与脱泡的设备，脱泡同时混料，避免二次气泡混入，常用于环氧树脂、硅胶、AB 胶等高粘度材料的混料脱泡处理，广泛应用于新能源电池、半导体封装、LED、电子灌封、胶粘剂等行业。
-
广州施诺斯主要生产哪些设备？
主要产品包括搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材。
-
源头厂家采购脱泡设备有什么优势？
源头厂家直供可省去中间环节，价格更透明，同时能提供参数定制、来料试机、工艺验证等服务，售后响应更直接。
-
搅拌脱泡机的工作原理？
施诺斯设备采用行星式混合原理：料罐在自转的同时绕公转轴公转，物料在罐内随之翻动混合，同时抽真空脱泡。整个过程设备不设搅拌桨，搅拌部件不接触物料，不会引入金属异物，混合均匀不分层。
-
为什么选择施诺斯？
施诺斯（SIENOX）是广州施诺斯科技股份有限公司旗下品牌，2014 年成立，专注脱泡机与搅拌机的研发与制造，团队自 2006 年起从事真空搅拌脱泡设备研发。设备采用非接触式设计，不设搅拌桨，行星式公转加自转运动辅以真空系统，高效除泡，混合均匀不分层。公司产品涵盖搅拌脱泡机、真空脱泡搅拌机、真空脱泡机、高压脱泡机、真空搅拌机、实验室均质机、三辊研磨机、三维混粉机，以及点胶机、分装机等配套设备和夹具、搅拌罐、针筒等辅品耗材，广泛应用于新能源、半导体、LED、电子灌封、胶粘剂、涂料、油墨等行业。通过 ISO9001、CE 认证，拥有 30 余项专利，服务富士康、比亚迪、清华大学等企业与科研院所。
Multi‑Model Specification Comparison Table
Compare Models in the Same Series for Accurate Selection
| Model | SIE‑RX6‑900 | SIE‑RX8‑1200 | SIE‑RX10‑1800 |
| Chamber Size | φ600×900mm | φ800×1200mm | φ1000×1800mm |
| Effective Volume | 255L | 600L | 1410L |
| Pressure Range | 0~2.5MPa(Optional) | 0~2.5MPa(Optional) | 0~2.5MPa(Optional) |
| Temperature Range | Ambient ~180℃(Optional) | Ambient ~180℃(Optional) | Ambient ~180℃(Optional) |
| Pressure Accuracy | ±0.01MPa | ±0.01MPa | ±0.01MPa |
| Temperature Control Accuracy | ±1.0℃ | ±1.0℃ | ±1.0℃ |
| Power Supply | 380V, 50/60Hz (Customizable for 110V US/JP standard) | 380V, 50/60Hz (Customizable for 110V US/JP standard) | 380V, 50/60Hz (Customizable for 110V US/JP standard) |
| Overall Dimension(W×D×H) | 610 × 560 × 780 mm | 610 × 560 × 780 mm | 1300×2100×2000mm |
| Net Weight | 163 kg | 2000 kg | 3000 kg |
***Above are typical models. Customized solutions are available upon customer requirements.
Multi‑Industry Solutions
Covering stirring and debubbling applications of typical materials across six major industries
LCD Polarizer LaminationSmall‑size polarizer OCA optical adhesive, lamination adhesive for LCD glass substrate |
Electronic Component EncapsulationComponent encapsulant, chip potting adhesive |
Medical DevicesMedical bonding adhesive, medical device lamination adhesive |
LED EncapsulationLED encapsulant, phosphor paste |
Fine ChemicalsFine chemical materials, nano‑powders |
New Energy MaterialsR&D samples of new energy materials, battery slurry samples |
Comprehensive Equipment Operation Demo Videos
Gain intuitive, clear, dynamic insight into synchronous defoaming with planetary centrifugal force and high negative pressure.
Actual‑test Performance Demonstration
Measured Processing Results for Six Typical Materials
Slurry + Powder |
Adhesive |
Hydrogen Energy Materials |
Adhesive |
Substrate + Filler |
Adhesive + Ceramic Powder |
Actual‑test Effect Comparison
Comparison of Material Status Before and After Pressurized Debubbling
| Material Type | Pre‑treatment Status | After SIE‑RX10‑1800 Treatment |
| Polarizer OCA Optical Adhesive | Plenty of internal bubbles, mottling & uneven light transmission after lamination | Bubble‑free transparent adhesive with uniform light transmission after lamination |
| Component Encapsulant | Dense inner bubbles, voids occur in encapsulation layer after curing | Dense void‑free adhesive for complete and reliable encapsulation layer |
| Medical Bonding Adhesive | Internal bubbles cause bonding‑surface defects and degrade biocompatibility | Dense adhesive with intact bonding surface and qualified biocompatibility |
* Internal lab test data. Actual improvement varies with material formulation. Contact sales for real‑world customer cases.
